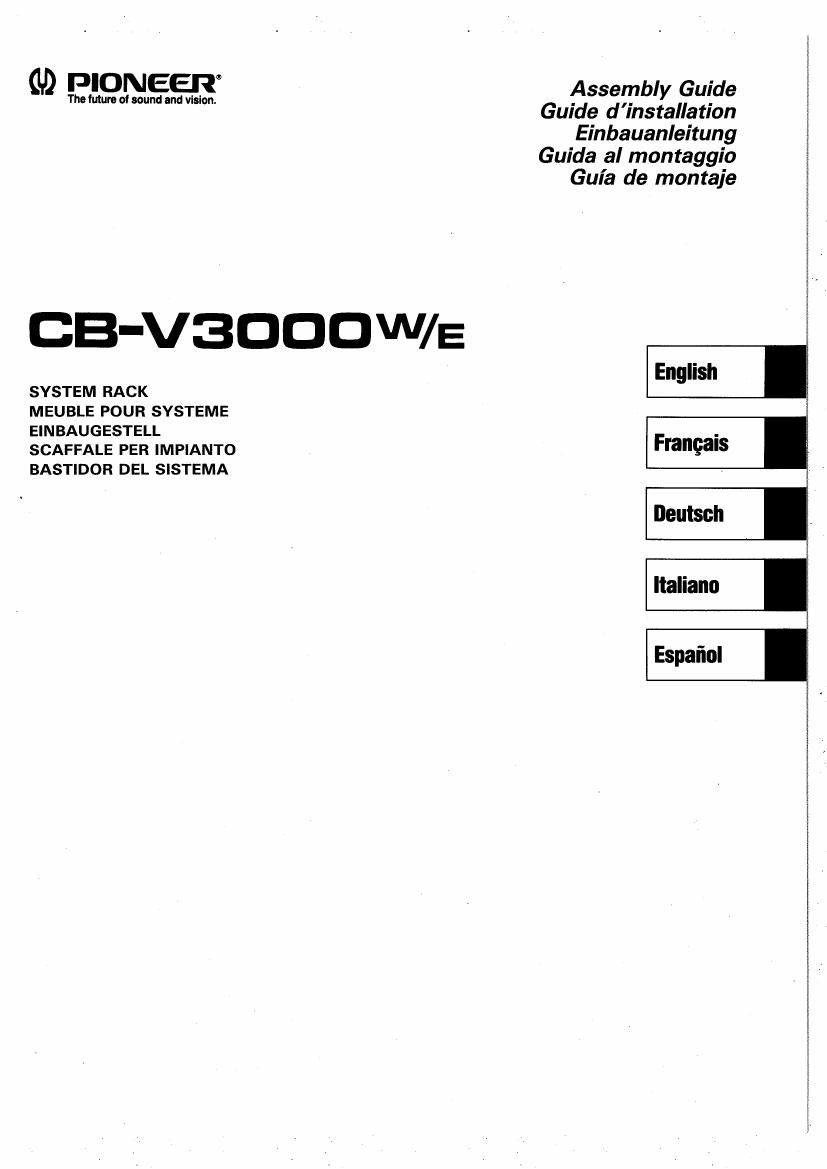

Pioneer cbv 3000 owners manual

Page 2

Thank you for purchasing this Pioneer product. This rack has Push the pin.
been designed for exclusive use with Pioneer LaserVision

"karaoke" systems.

Read this Assembly Guide well and install the rack as directed.

After reading the guide, keep it in a safe place for later use in the

event of reinstallation.

Example 1 :

Stereo mixing
amplifier \ SA-V21O

|_|___.____J_l

LaserVision
LD-V2OO

player . .
<| I I Press down to IE] With a small screw driver or a tweezers. (The
-.__

-_ pin must be completely pushed in.)

*LD'VZOO * When removing the door, press the pin down to [H] with a small
screw driver or a tweezers.
For the final removal step pull the upper part of the door
towards you.
l @=@°© ]
Ll LJ

III TO REMOVE THE FRONT COVER

* Two LaserVision players can be installed.

III Door installation

1. Remove screws
2. Remove front cover

III ABOUT THE MICROPHONE JACKS

To use these jacks as microphone and key control terminals:

Connect the pin-plug cord, key-control cord, and ground terminal

cord (Found on the rear panel of the base plate) to the

microphone terminal, key-control terminal, and ground terminal
of the stereo mixing amplifier which is to be housed in the rack.

1. Remove the cords bundled at the back of the racks base
plate.

2. Connect the pin plugs to the microphone terminals of the
stereo mixing amplifier to be set in the rack, taking care to
match the terminal numbers correctly.

3. Insert the mini plugs into the mixing amplifier's keycontrol
terminals.

4. Connect the ground cord jack to the mixing amplifiers ground
terminal.

5. For details regarding connections, consult the operating
instructions for the stereo mixing amplifier you plan to use.
