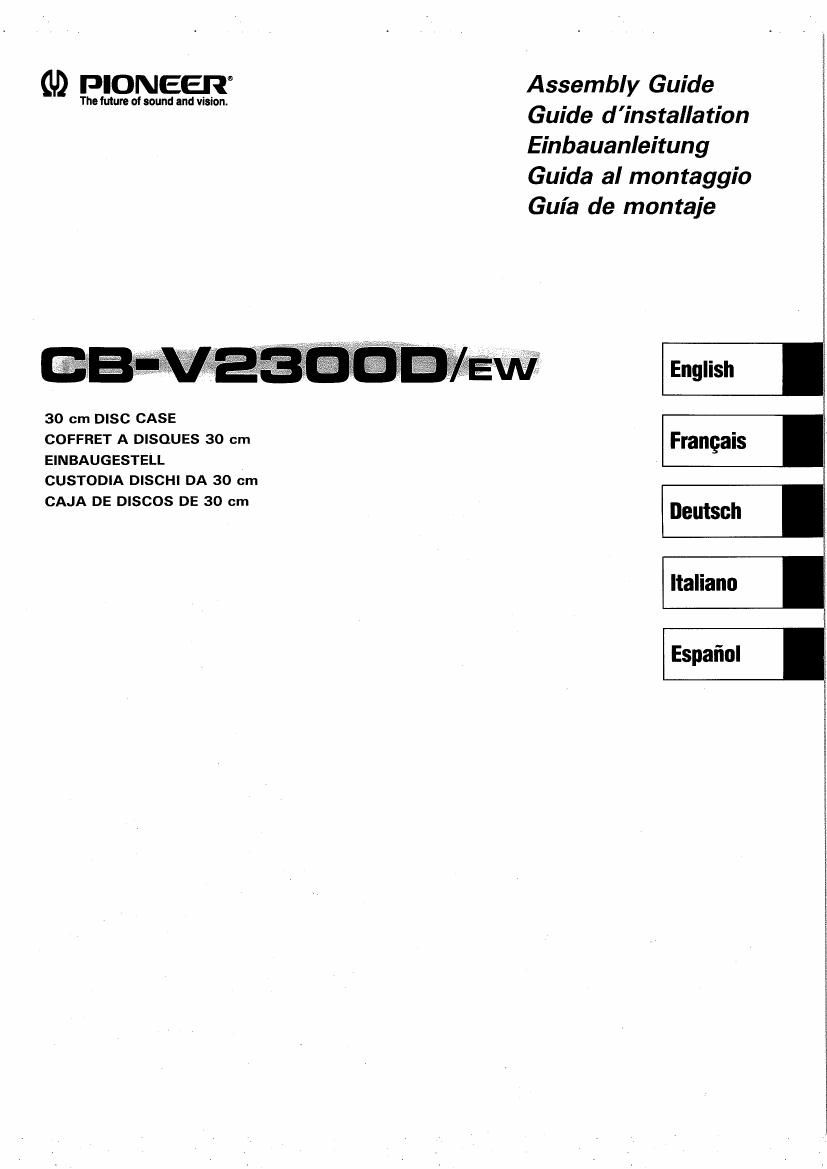

Page 1

0,!) PIONEER

The fmure of sound and vision.

30 cm DISC CASE

COFFRET A DISQUES 30 cm
EINBAUGESTELL

CUSTODIA DISCHI DA 30 cm
CAJA DE DISCOS DE 30 cm

Assembly Guide
Guide dinstallation
Einbauanleitung
Guida al montaggio
Guia de montaje

English

Frangais

Page 2

Thank you for purchasing this Pioneer product, This disc case has
been designed for exclusive use with Pioneer LaserVision'
"karaoke systems.

In order to get the best use from this product, be sure to read this
assembly guide fully. After reading the guide, keep it in a safe
place for future reference.

NAME OF PARTS

Block number
label

Individual disc
number labels

Mounting
fixture

INSTRUCTIONS

El INSTALLATION

(a medium-sized Phillips screwdriver is required)

In order to assure the stability of the disc case and to danger, be
sure to secure the disc case with the mounting fixtures provided.
Use the accessory mounting screws to locate the fixtures as
needed for your particular installation.

To install on top of a rack, table counter, etc.

Mounting

screws

Mounting The fixtures can be mounted in

fixtures either direction, in accordance with
the table-top or other mounting
surface.

2

En

When installing one disc case on top of another

Mounting

fixture CBVVZSOOD
Screw
holes

Mounting

screws m,

CB-VZSOOD
NOTE:

Mounting three or more disc cases vertically is extremely
dangerous. When stacking the cases, install no more than two
vertically, one on top of the when

E] STORE DISCS

1. Open the disc compartment door.

2. Insert disc.

No disc loaded (black)

Disc loaded
(yellow)

Indicator
window

Disc stored indicator

At the bottom of each disc compartment can be found an
indicator window which shows whether a disc is currently
stored.

When the indicator is yellow, it means a disc is currently stored in
that compartment. When no disc is stored, the indicator will
change to black.
