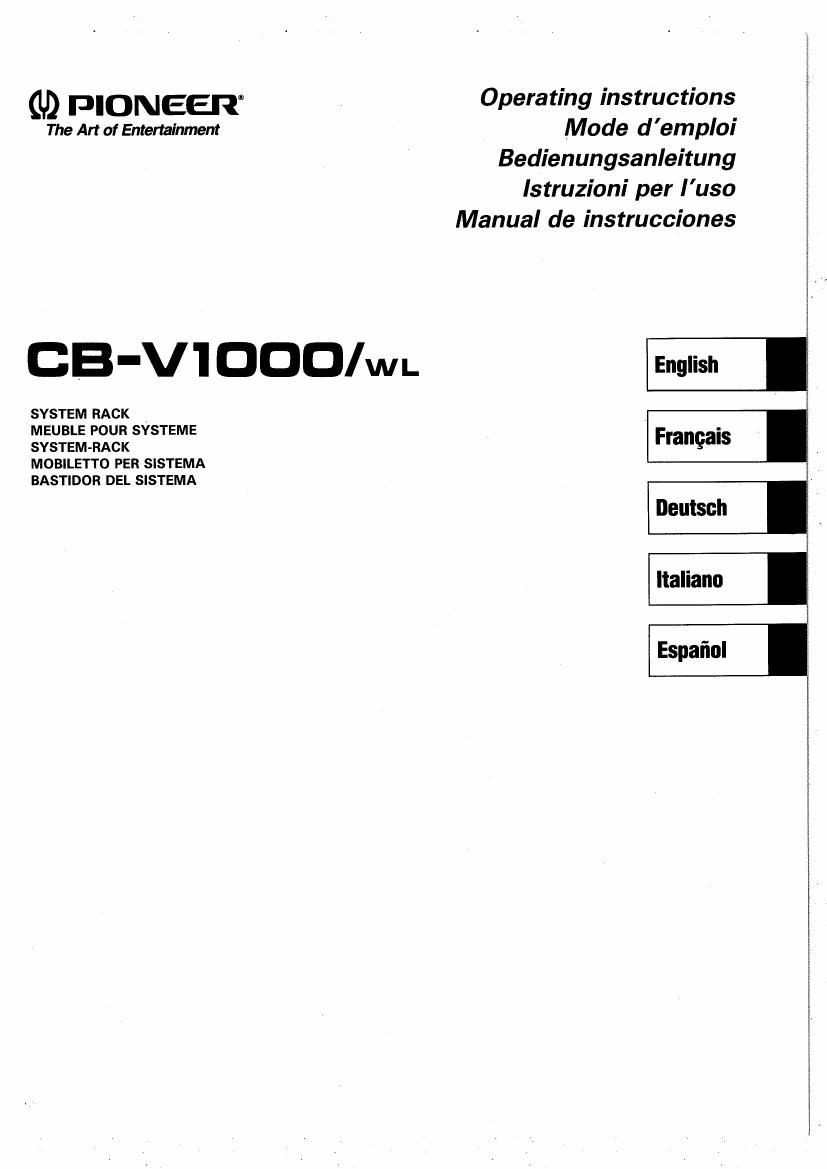

GD PIONEER . Operating instructions

The Art of Entertainment M ode d emploi
Bedienungsanleitung

Istruzioni per I uso

Manual de instrucciones

CB 'V'l DDDIWL English

SYSTEM RACK

MEUBLE POUR SYSTEME
SYSTEM-RACK
MOBILETTO PER SISTEMA
BASTIDOR DEL SISTEMA

Frangais

Deutsch

UUU

Italiano

Espaflol

U

Page 2

Thank you for purchasing this Pioneer product. This rack
has been designed for exclusive use with Pioneer Laser
Vision "karaoke" systems.

Read this Operating Instructions carefully and install the
rack as directed. After reading the instructions, keep this
Operating Instructions in a safe place for future use in the
event of reinstallation.

System Example :

Stereo mixing
amplifier
SA-V24O

AutoChanger
comander
CO-V1OO

PRECAUTIONS REGARDING
USE

ABOUT INSTALLATION
I Install in level location
If the location is not level, the rack may be deformed.

I Do not install in locations exposed to direct
sunlight or nearby heating appliances
0 The surface of the rack may be deformed or become
discolored.
' Damage may result to the audio components mount-
ed in the rack.

I Install at least 10cm from well

If the rear panel of the rack is installed directly against a
wall, the mounted audio components may suffer from in-
sufficient ventilation and resultant overheating.

CAUTION:
This rack has weight capacity limits and a stacking height limit.
The rack may fall over or break if these limits are exceeded.

To avoid such dangers, stay within the limits listed below.

Total: not to exceed 80 kg (1764 lbs)

On top board: not to exceed 50 kg (110.3 lbs)

0n inside shelf: not to exceed 15 kg (33.1 lbs)

On bottom board: not to exceed 20 kg (44.1 lbs)

Stacking height:

[on top board) not to exceed 60 em (23-5/8 In)

2
<5RD1103>
En

INSTRUCTIONS

[I] To Install the Monitor TV (SD-28AV1 or
SD-28AV2) on the Rack

1. Attach the brackets to the top surface of the rack.
2. Loosely fit the monitor screws in the bracket screw
holes.
3. Place the monitor on top of the rack. Secure the moni-
tor by tightening the monitor screws.
4. Insert the stoppers into the rack.

<-

1;

2. Monitor screw 1. Bracket screw V
F/ Bracket
W ,

SDAZBAVI ISD-ZBAVZ

4. Stopper

1. Remove screws.
2. Remove front cover.
