Pioneer cbe 900 owners manual

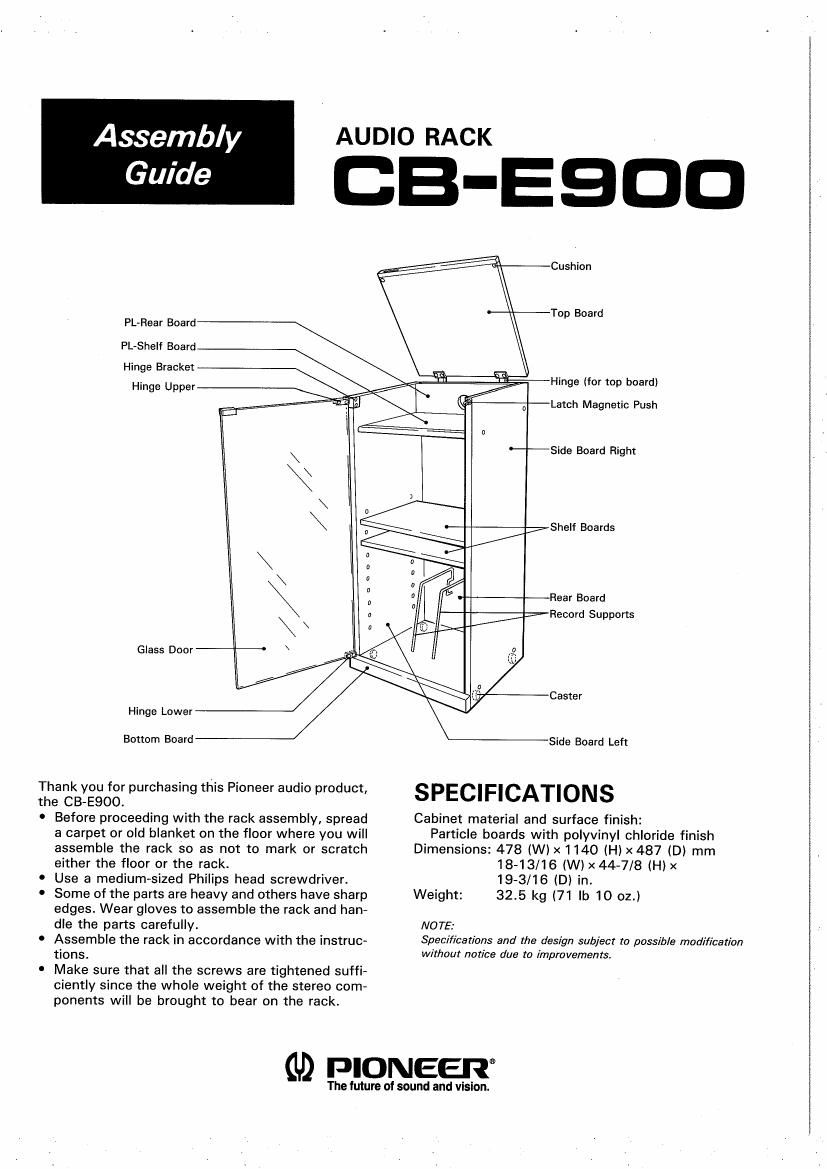

Page 1

Assembly

Guide

PL-Rear Board

PL-Shelf Board
Hinge Bracket
Hinge Upper

Glass Door

Hinge Lower

Bottom Board

Thank you for purchasing this Pioneer audio product,

the CB-EQOO.

0 Before proceeding with the rack assembly, spread
a carpet or old blanket on the floor where you will
assemble the rack so as not to mark or scratch
either the floor or the rack.

0 Use a medium-sized Philips head screwdriver.

Some of the parts are heavy and others have sharp
edges. Wear gloves to assemble the rack and ban-
dle the parts carefully.

0 Assemble the rack in accordance with the instruc-
tions.

' Make sure that all the screws are tightened suffi-
ciently since the whole weight of the stereo com-
ponents will be brought to bear on the rack.

AUDIO RACK

B-ESOO

Hinge (for top board)

Latch Magnetic Push

Side Board Right

Shelf Boards

Rear Board
Record Supports

Caster

Side Board Left

SPECIFICATIONS

Cabinet material and surface finish:

Particle boards with polyvinyl chloride finish
Dimensions: 478 (Wlx 1140 (H) x487 (D) mm
18-13/16 (W) X 44-7/8 (H) X
19-3/16 (D) in.

Weight: 32.5 kg (71 lb 10 02.)
NOTE:
Specifications and the design subject to possible modification
without notice due to improvements.

PIONEER

The future of sound and vision.

Page 2

CHECKING THE PARTS

The names and quantities of the parts are shown in
the parts list. Check that all the parts are present.
The names and shapes of the parts are required for
the assembly procedure and should thus be re-

membered.
PARTS LIST
Part Quantity Physical outline Part Quantity Physical outline
Cabinet retaining screw 8 Hinge mounting screw (A) (1 sgare) 93'
Rear board mounting screw 9 Hinge mounting screw (B) (1 spare) 03"
Plastic dowel 8 Hinge mounting screw (C) (1 sgare) Elam
Cable clip 2 Hinge lfor top board) 2 [EIM
Hinge bracket mounting
Caster mountlng screw 12 screw 2 @D
g)/
Caster 4 Hinge bracket 1 1g
Record support 2 Cushion 2
Hinge mounting screw Hinge bracket mounting Cusion

screw

Rear board mounting screw

E
