Thank you for buying this Pioneer product. Please read the
instructions in this assembly guide for the assembly of the
rack, its handling and the installation of the components.

SYSTEM RACK/SYSTEM-RACK
ETAGERE AUDIO/RACK AUDIO

CB-EBOI

Keep this guide in a safe place for future reference.

Provide yourself with a medium-sized Phillips head
screwdriver for the assembly of his rack.

GDPIONEEW

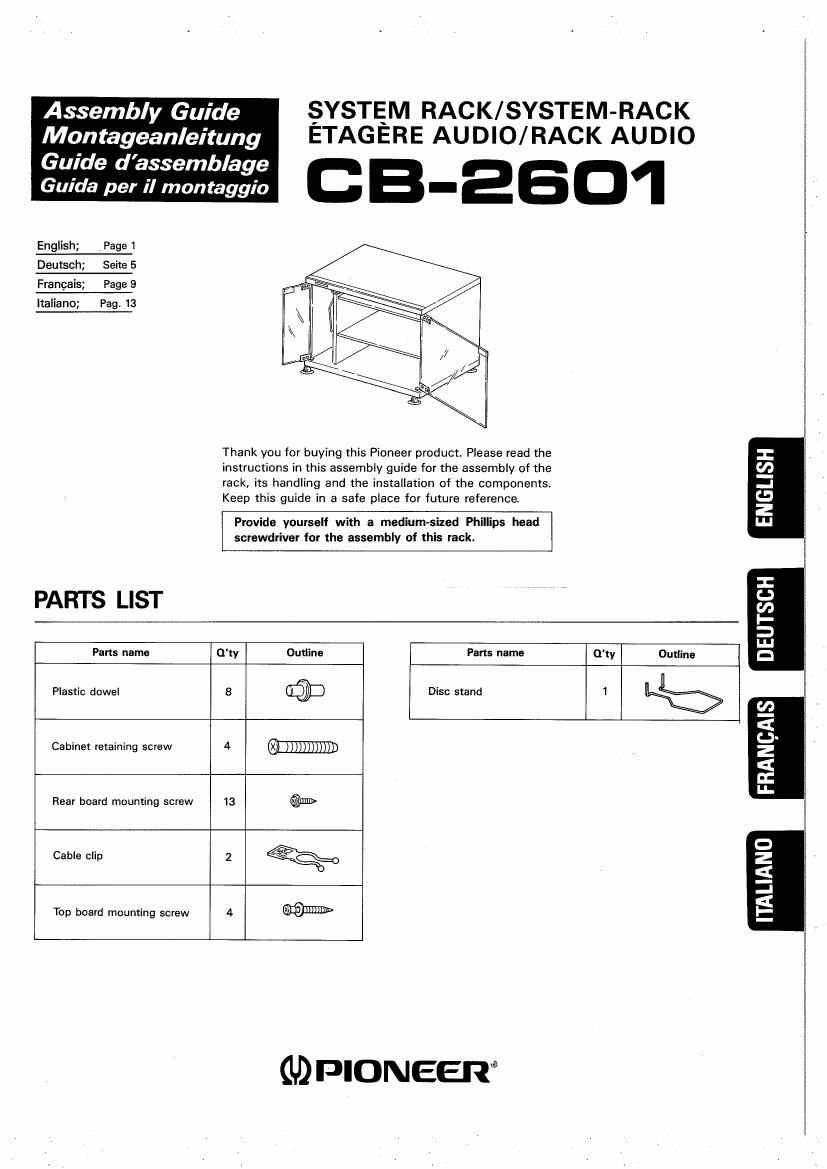

Pans name Q'ry Outline Pans name Q'ty Outline
Plastic dowel B 0% Disc stand 1 b
Cabinet retaining screw 4 m
Hear beard mounting screw 13 @mn»
Cable clip 2 <§X¢¥Q
Top board mounting screw 4 W

22
<
u
2
<
c:
Inl-

ITALIANO

Page 2

ASSEMBLY PROCEDURE

FULLY ASSEMBLED RACK

Disc stand
Side board Top board Shelf board
(left)

Glass door
(left)

Side board
lright)

Partition

board Glass door \

lrightl

lIlMOUNTING THE TOP BOARD, SIDE BOARDS,
BOTTOM BOARD AND PARTITION BOARD

® Install the top board mounting screws on the left and right
side boards (2 screws for each board).

(2) Fit the end of each top board mounting screw attached
to the side board into the hole in the top board.

® Secure the top board and the side boards by tightening
the fixing screw with screwdriver held in a direction as
shown in the figure.

(4) Fit the dowels of the partition plate into the holes in the
top and bottom boards.

6) Install the bottom board using 4 cabinet retaining screws.

Partition Side
board board

7 Side board

Bottom . h Top board

board Cabinet (9 t) mounting
retaining screw
screw

lZlMOUNTING THE REAR BOARD

Rear board (A)

Cable clip

Rear board (Cl

Rear board
mounting
screw

Cable clip

Q MOUNTING THE GLASS DOOR, SHELF
BOARD AND DISC STAND

(D Loosen the screws on the lower hinge of the glass door,
and detach the hinge. insert the shaft of the hinge into
the hole in the bottom board.

® Hold the glass door at an angle to insert the shaft of the
upper hinge into the hole in the top board.

@Fit the glass door into the lower hinge and tighten the
screws.

@ lnsert 4 shelf board dowels into holes in the side board
(right) and the partition board respectively.

® Mount the shelf board, making sure the grooves at the
rear of the board is placed on the dowels.

© Attach the disc stand onto the top board.

Shelf board

Disc
stand

Glass door
(left)

Glass door
(right)

Plastic dowel
(insert the longer section into the hole)

When mounting the glass door, he sure to remove the
lower hinge first. After replacing the hinge. the screws
of the hinge should be tightened adequately using a
screwdriver.
