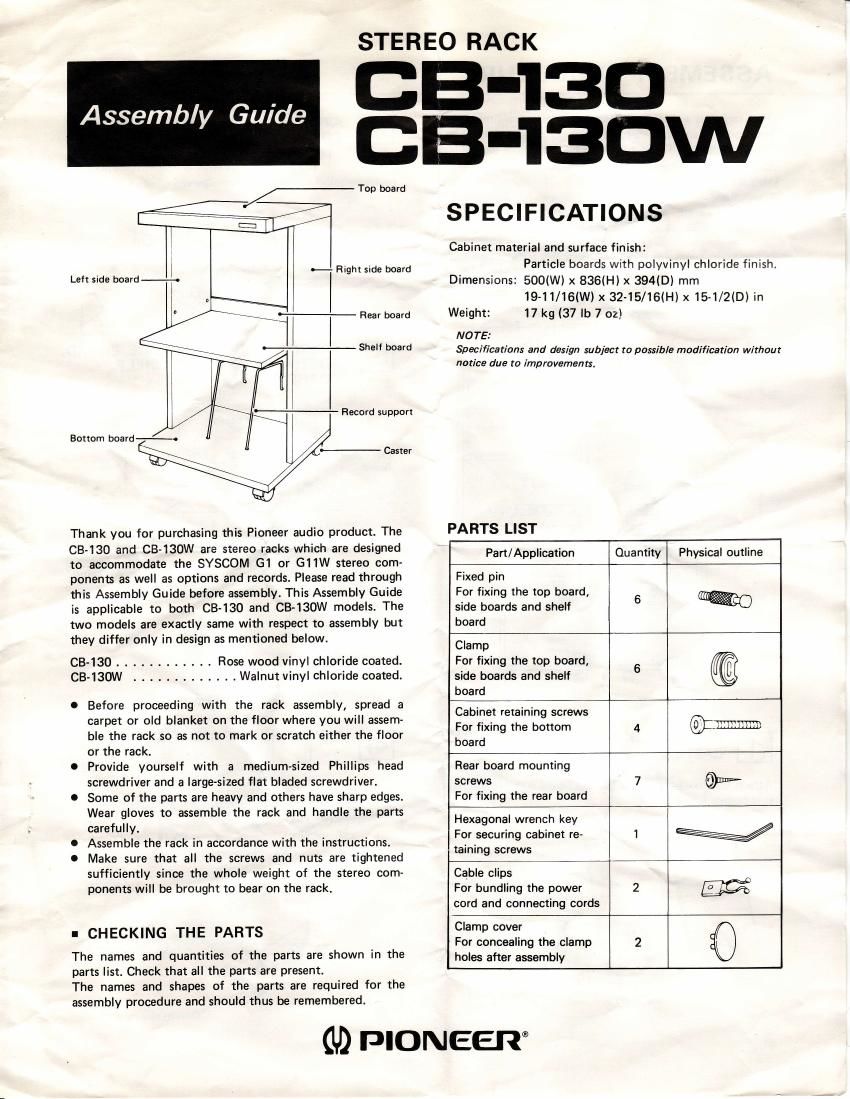

Pioneer cb 130 owners manual
This is the 4 pages manual for pioneer cb 130 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cb 130 owners manual (Ocr-read)
Page 1
ASSEMBLY PROCEDURE This rack has a shelf board. The mounting position of the shelf board cannot be re-positioned once the rack has been fully assembled. Refer to the examples below and deter- mine the mounting position of shelf board. This is neces- sary with step 1 1st 2nd Example 1 Example 2 ATTACH THE FIXED PINS AND THE CASTERS Attach the fixed pins onto the top board and left and right side boards. ATTACH THE CASTERS ONTO THE BOTTOM BOARD fl-cu,t"' MOUNTING THE BOTTOM BOARD BOARD LEFT SIDE BOARD, AND SHELF Left side-r........_ board Bottom board o @ Left side board 1st (Example 2) -2nd {Example 1) View from side Shelf board MOUNTING THE RIGHT SIDE BOARD Mounting method is as left side Right side board Right side board Fixed pin Top board
Page 2
MOUNTING THE TOP BOARD 1. Mounting method is same as shelf board. 2. lnsert the clamp covers into the front side holes attached with clamps. MOUNTING THE REAR BOARD Mount the rear board using the rear board mounting screws. Attach the cable clips to the positions marked with * in the figure. Cable clips Shelf board: 1st position Rear Shelf board: 2nd position mountingscrew MOUNTING THE STEREO COM- PONENTS 1. Refer to Examples 1 through 2 and mount the stereo components. lt is recommended that the mounting sequence of the components follow that indicated in Examples 1 through 2. Followi4g the examples will facilitate the rear board conhdctions and stereo com- ponent operation. 2. Align so that the front panels of the components inside from the shelf board surface. 3. Place all the stereo components in the center of the rack. Align in the center Align the f ront panels inside from the shelf board surface. MOUNTING THE RECORD SUPPORT J Clamp covers Right side board .----;- Rear board
