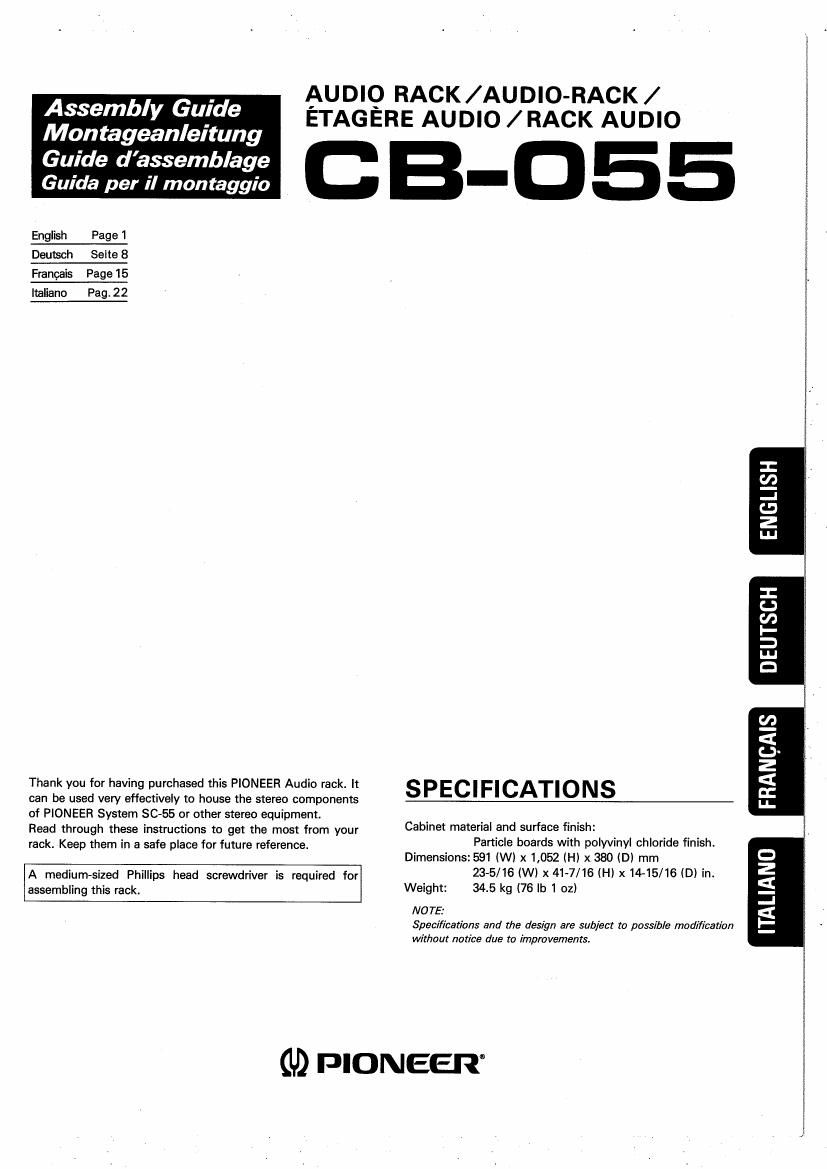

Page 1

Assembly Guide
Montageanleitung

Guide dassemblage
Guida per il mantaggio

English Page 1
Deutsch Seite 8
Frangais Page 15
Imliano Pag. 22

Thank you for having purchased this PIONEER Audio rack. It
can be used very effectively to house the stereo components
of PIONEER System SC-55 or other stereo equipment.

Read through these instructions to get the most from your
rack. Keep them in a safe place for future reference.

A medium-sized Phillips head screwdriver is required for
assembling this rack.

AUDIQ RACK /AUDIO-RACK /
ETAGERE AUDIO /RACK AUDIO

3-055

SPECIFICATIONS

Cabinet material and surface finish:

Particle boards with polyvinyl chloride finish.
Dimensions: 591 (W) x 1,052 IH) x 380 (DI mm

23-5/16 (WI x 41-7/16IH) x 14-15/16IDI in.

Weight: 34.5 kg I76 lb 1 02)

NOTE:

Specifications and the design are subject to possible modification
without notice due to improvements.

(U) PIONEER

D
2
E
.4
E

Page 2

BEFORE ASSEMBLY

There are 4 ways in which the rack can be used, depending on

where the shelf boards are mounted. Follow the assembly pro- Parts name/application Q'ty Gum
cedure for efficient assembly. The names, applications, quan» Amplifier and Timer stoppers
tities and outlines of the small parts provided are given in the Stoppers to prevent amplifier and 4
parts list below. timer from moving
Parts List Assembly screws (for top board) 4 <%
Parts name/ application O'ty Outline Screws for mounting top board
Casters 4 5) Mlcrophone holder 1 @
Holder for microphones ,
Assembly screws (for bottom a»
Caster installation screws 13 A? board) 4 (W
[lsparel Screws for mounting bottom board
, . Cord clips
Plastic dowels for Installing shelves 8 6% Clips for bundling cords together 3
Record support 1 Rear board screws 14 fi
Support to accommodate records Screws for mounting rear board 11 )
spare
Side board (left) Top board
assembly (Glass)

Cassette case
already assembled onto
side board (left) assembly

Caster

Record support

7- Rear board

Side board (right)

Top shelf board

Bottom shelf board

Bottom board
