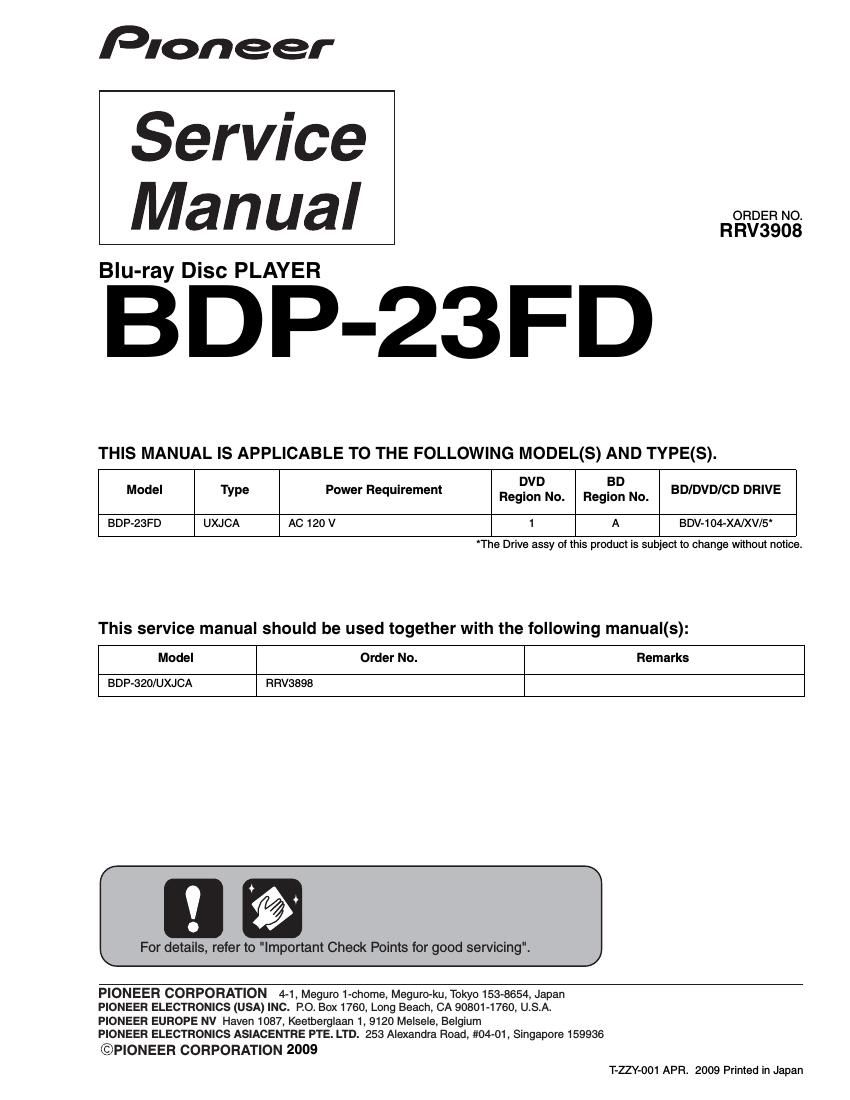

Page 1

Pioneer

Service
Manual

Blu-ray Disc PLAYER

BDP-23FD

ORDER NO.

R RV3908

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

. DVD BD
Model Type Power Requirement Region No. Region No. BDIDVD/CD DRIVE
BDP-23FD UXJCA AC 120 V 1 A BDV-104-XA/XV/5

The Drive assy of this product is subject to change without notice.

This service manual should be used together with the following manual(s):

Model

Order No.

Remarks

BDP-320/UXJCA

RRV3898

I].

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1, Meguro1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

CPIONEER CORPORATION 2009

T-ZZY-001 APR. 2009 Printed in Japan

Page 2

- 2 I 3 I 4 l

CONTENTS

1. SERVICE PRECAUTIONS ..................................
1.1 NOTE ON REPLACING THE TRAY PANEL.
2. SPECIFICATIONS ..
2.1 SPECIFICATION
2.2 PANEL FACILITIES.
3. BASIC ITEMS FOR SERVICE.
3.1 CHECK POINTS AFTER SERVICING...
3.2 PCB LOCATIONS
3.3 JIGS LIST
4. DISASSEMBLY...
5. EXPLODED VIEWS AND PARTS LIST.
5.1 PACKING SECTION ......
5.2 EXTERIOR SECTION....
5.3 FRONT PANEL SECTION
6. SCHEMATIC DIAGRAM ..........
6.1 SERVICE MAIN ASSY (1/12)(GU|DE PAGE) ..
6.2 SERVICE MAIN ASSY (2/12)(GU|DE PAGE) ..
6.3 SERVICE MAIN ASSY (3/12) ..
6.4 SERVICE MAIN ASSY (4/12) ..
6.5 SERVICE MAIN ASSY (5/12) ..

)

)

)

Eocooo'xl'xlbwww'w

6.6 SERVICE MAIN ASSY (6/12 ..
6.7 SERVICE MAIN ASSY (7/12 ..
6.8 SERVICE MAIN ASSY (8/12 ..
6.9 SERVICE MAIN ASSY (9/12) ..
6.10 SERVICE MAIN ASSY (10/12) ..
6.11 SERVICE MAIN ASSY (11/12) ..
6.12 SERVICE MAIN ASSY (12/12) ..
7. PCB PARTS LIST ...............................

2 BDPv23FD

1 - 2 - 3 - 4 I
