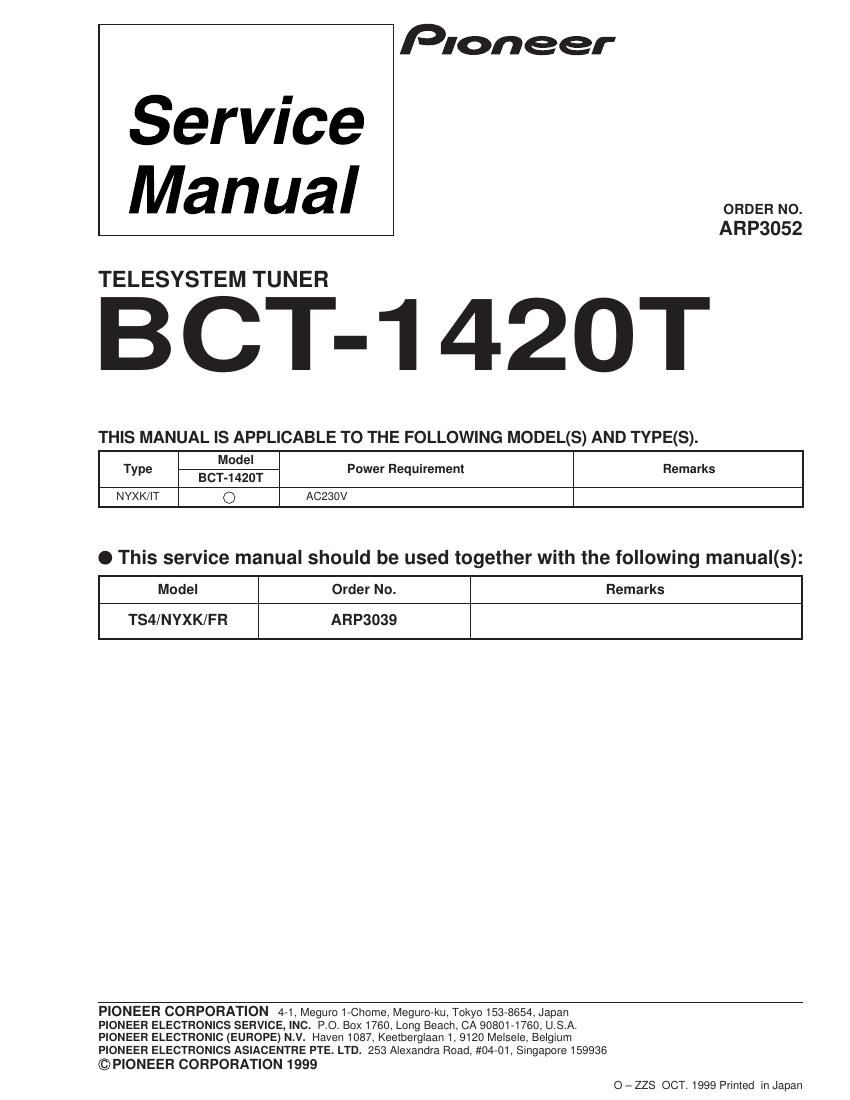

Service
Manual

Pioneer

ORDER NO.
ARP3052
TELESYSTEM TUNER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model .
Type BCT-1420T Power Requrrement Remarks
NYXK/IT O ACZSOV

O This service manual should be used together with the following manual(s):

Model

Order No.

Remarks

TS4/NYXK/FR

ARP3039

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 1999

O -ZZS OCT. 1999 Printed in Japan

Page 2

BCT-

1420T

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES:

.Parts marked by NSF" are generally unavailable because they are not in our Master Spare Parts List.
.The A markfound on some eomponent parts indicates the importance ofthe safetyfaetor ()fthe part.
Therefore, when replacing, be sure to use parts of identical designation.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex] When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).

560 Q ->
47k Q ->
0.5 52 ->
1 Q -> 1R0

Ex] When there are 3 eflective digits (such as in high precision nietalfilm re. 'stors).
5.62k 9 -> 562 X 10' -> 562] ............................................ RN1/4PC @ F

O CONTRAST OF BCT-1420T/NYXK/IT AND TS4/NYXK/FR
BCT»142OT/NYXK/iT and TS4/NYXK/FR are constructed the same except for the following:

Ref. No. Mark Symbol and Description Part "0' Remarks
TS4/NYXKIFR BCT-1420T/NYXKIIT
PACKING SECTION
P3-7 INSTRUCTION MANUAL BRC1003 BRC1005
(French) (Italian)
NSP CE DECLARATION CARD Not Used BRM1019
P3-3 REMOTE CONTROL UNIT BXD1010 BXD1031
P344 MODEM CABLE BDH1OI4 BDH1016
P3-I1 NSP MODEM APPROVAL CARD BRM1022 Not Used
NSP CAUTION CARD Not Used BRM1023
NSP WHITE CARD Not Used BPK1023
NSP WARRANTY CARD Not Used BRY1031
P340 NSP STICKER(PAP) BAX1271 Not Used
NSP SERIAL PAPER Not Used RRW-168
P3-1 PACKING CASE(PAP) BHD1369 BHD1467
EXTERIOR SECTION
P4-1 FRONT PANEL ASSY BMB1071 BMB1089
P4-9 REAR PANEL (MET) BNC1137 BNCI139
MODEM HOLDER (MET) Not Used ANG2037 Refer to page 3.
P440 NSP NAME LABEL BAL1366 BAL1392
NSP BARCODE LABEL Not Used BAL1310
12P FLEXIBLE FLAT CABLE Not Used BDD1022 2 2 MAIN ASSY
<-> MODEM ASSY
PCB SECTION
P4-6 MAIN ASSY BWE1055 BWE1087
|:IC3001 16M FLASH ROM (1) BGC1002-A-AV BGC1012-A-AV
NSP I/O MODEM BLOCK B5E1055 B5E1056 *3 BXF1110 have no
MODEM ASSY Not Used BXF1110 3 service part.
