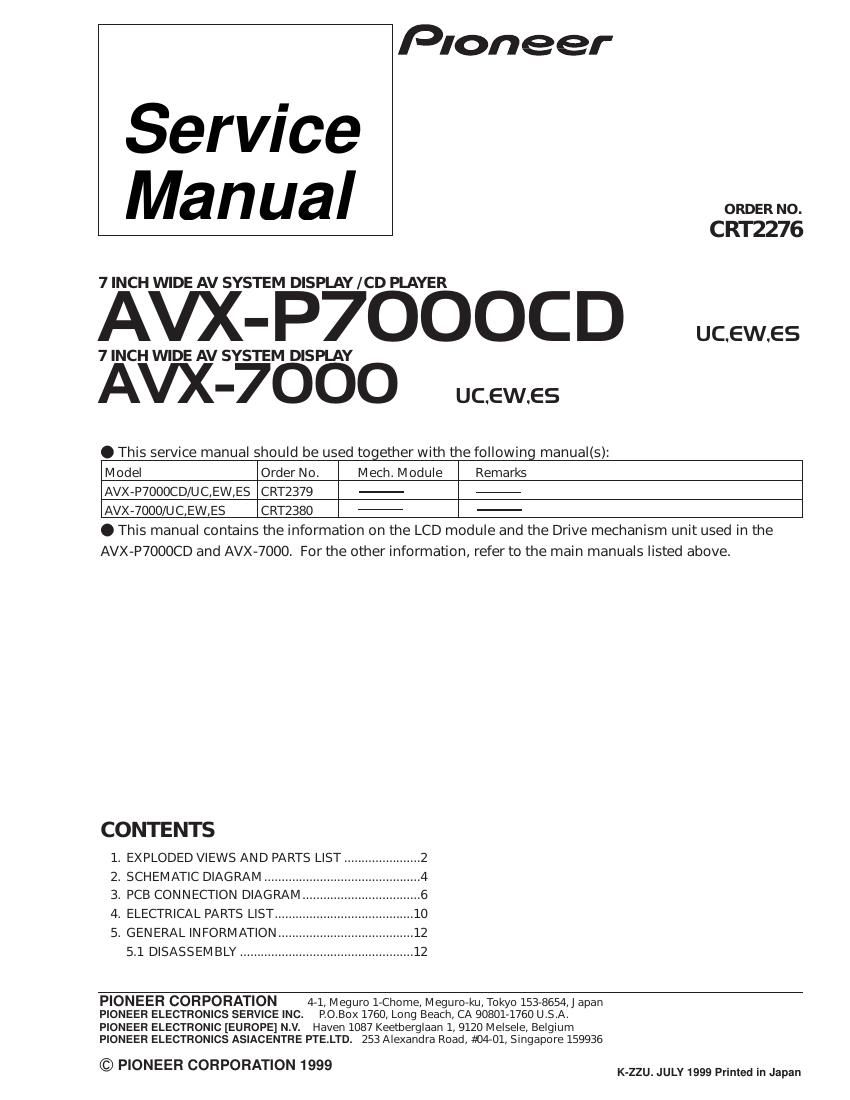

Page 1
Service
Manual
Pioneer
ORDER NO.
CRT2276
7 INCH WIDE AV SYSTEM DISPLAY /CD PLAYER
AVX- P7000CD MW
7 INCH WIDE AV SYSTEM DISPLAY
VX-7000 UC.EW.ES
O This service manual should be used together with the following manual(s):
Model Order No. Mech. Module Remarks
AVX-P7000CD/UC,EW,ES CRT2379
AVX-7000/U C,EW,ES CRT2380
O This manual contains the information on the LCD module and the Drive mechanism unit used in the
AVX-P7000CD and AVX-7000. For the other information, refer to the main manuals listed above.
CONTENTS
. SCHEMATIC DIAGRAM ..............
. PCB CONNECTION DIAGRAM...
. ELECTRICAL PARTS LIST....
. GENERAL INFORMATION...
Ul-bLAJNH
5,1 DISASSEMBLY ........................................
. EXPLODED VIEWS AND PARTS LIST ..........
............ 2
.......... 12
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654,] apan
PIONEER ELECTRONICS SERVICE INC. P.O.BOX 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan l, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER CORPORATION 1999
K-ZZU. JULY 1999 Printed in Japan
