Pioneer AVIC X910BT Owners Manual
This is the 3 pages manual for Pioneer AVIC X910BT Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Pioneer AVIC X910BT Owners Manual (Ocr-read)

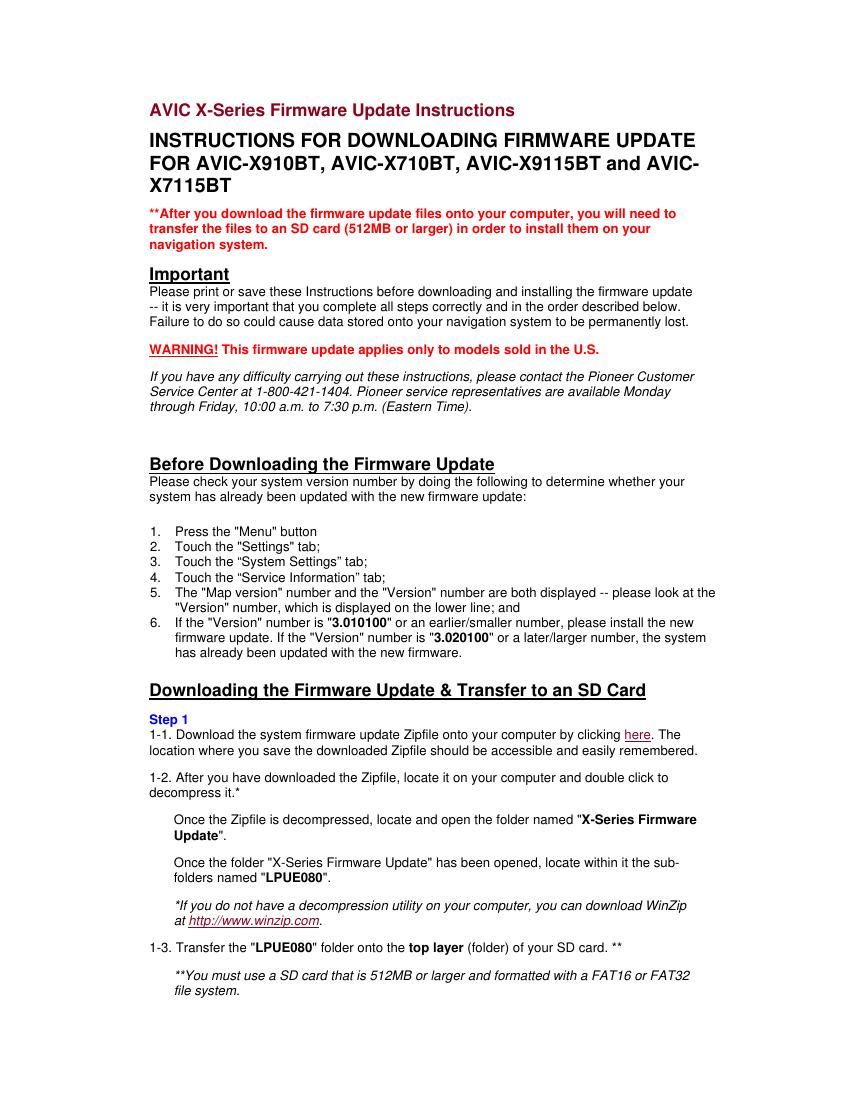

Page 1
Installing the System Firmware Update on Your Navigation System Step 2 Disconnect any iPod, iPhone, or USB device from the system before proceeding. After you have transferred the "LPUE080" folder onto the top layer/folder of your SD card, insert the SD card into your AVIC-X910BT / X710BT / X9115BT /X7115BT while your vehicle is turned OFF . Next, turn ON your vehicle and navigation system. The system will automatically start the update process in one minute. WARNING ! While your navigation system is being updated with the new firmware, do NOT turn off the power to the navigation system. Severe damage to your navigation system could result from your failure to do so, including but not limited to the loss of all content/data that is stored on the internal Flash Memory of your system (such as address book entries, destination history, and other user information). If your system does not automatically start the update process, please check your system and SD card as follows: Check your system version again to confirm the necessity of this firmware update. Check your SD card to confirm that the SD card contains the correct file in the correct format. Step 3 Please wait for the firmware update to be installed - this should take approximately 10 minutes. The system will automatically reboot after the firmware update is completed. Step 4 After your system has rebooted itself, press and hold down the system "reset" button (which is located just to the left of the "eject" button) for five (5) seconds and release it. Next, determine which of the following applies: 1. If the system boots ups and displays the main menu, go to Step 5. 2. If the system does not display the main menu AND the screen is blacked out , press and hold the reset button and the eject button at the same time for five seconds and then release them. The system should reboot automatically and display the main menu. Now proceed to Step 5. 3. If the system shows the "boot up screen" (see depiction below) BUT does not proceed to the main menu , press and hold down the "reset" button for five seconds and then release it. The system should reboot automatically and display the main menu. Now proceed to Step 5.
Page 2
"Boot Up Screen" Step 5 Turn off your vehicle and turn on again, and wait for your system to boot up. Confirming that the Firmware Update was Successfully Installed Step 6 Please follow the steps below to confirm the update process was successful: 6-1. Confirm your System Firmware Version - Press the "Menu" button - Select the "Settings" tab - Select "System Settings" - Select "Service Information" - Confirm that your system correctly displays the following information: Version: 3.020100 Your navigation system is now ready for use. Post-Update procedures Step 7 7-1. Calibrate the Screen Press the "Menu" button and touch the "Settings" tab. Select "System Settings", and touch the "Screen Calibration" button. Proceed with the guidance shown on the display and tap the screen to align the calibration. Questions If you have any questions, please contact the Pioneer Customer Service Center at 1-800-421- 1404. Pioneer service representatives are available Monday through Friday, 10:00 a.m. to 7:30 p.m. (Eastern Time).
