Pioneer avicf 90 bt service manual

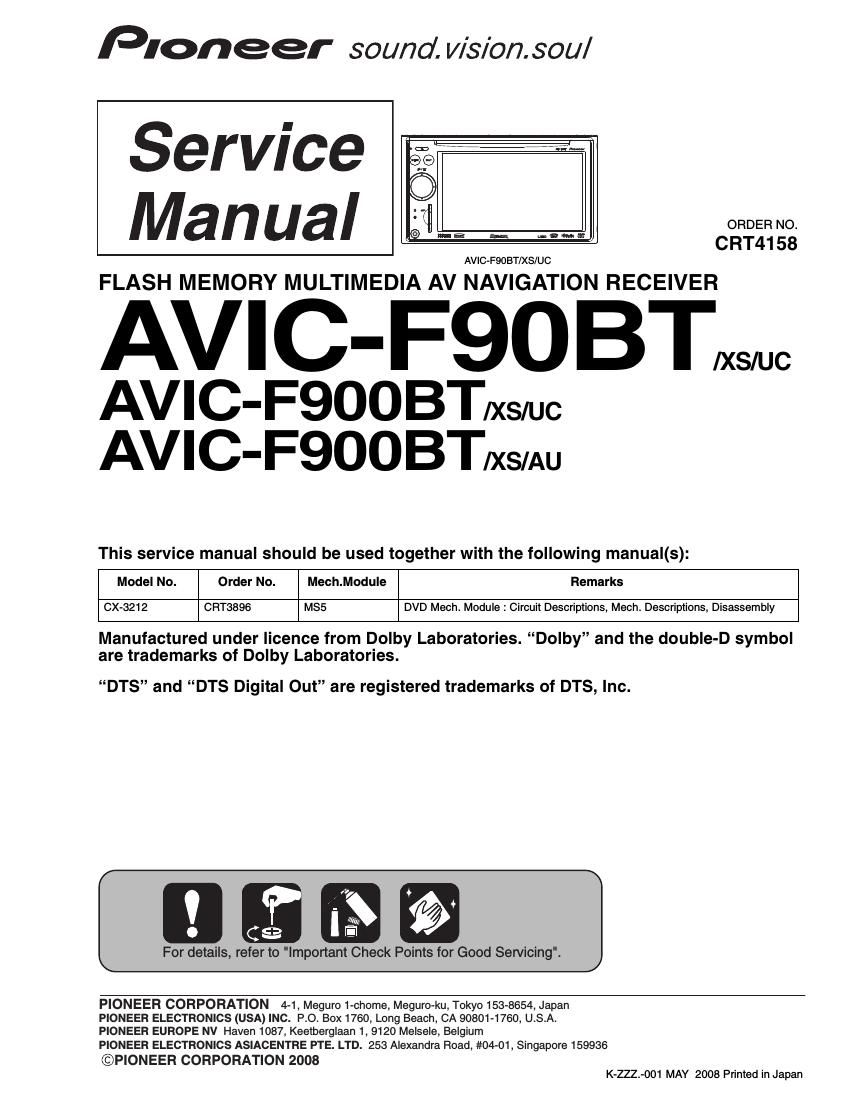

Page 1

Pioneer sound. vision. soul

Service
Manual

ORDER NO.

CRT4158

AVIC-F90BT/XS/UC

FLASH MEMORY MULTIMEDIA AV NAVIGATION RECEIVER

AVIC-FQO BTW...

AVIC-FQOOBT/xsmc
AVIC-FQOOBT/xsmu

This service manual should be used together with the following manual(s):

Model No. Order No. Mech.Module Remarks

CX-3212 CRT3896 M85 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

DTS and DTS Digital Out are registered trademarks of DTS, Inc.

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2008
K-ZZZ.-OO1 MAY 2008 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This seNice manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains certain electrical parts contain chemicals which are known to the State of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

This product contains mercury, Disposal of this material may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or the Electronics Industries

Alliance: www.eiae.org.

The backlighting lamp of LCD in this equipment contains mercury. Disposal of this material may be
regulated due to environmental considerations according to Local, State or Federal Laws. For disposal
or recycling information, please contact your local authorities or the Electronics Industries

Alliance: www.eiae.org

Where in a manufacturers service documentation, for example in circuit diagrams or lists

of components, a symbol is used to indicate that a specific component shall be replaced only
by the component specified in that documentation for safety reasons, the following symbol shall
be used:

&

1. Safety Precautions for those who Service this Unit.
- Follow the adjustment steps in the service manual when servicing this unit. When check -
ing or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.

Caution:

1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

AVlC-FQOBT/XS/UC
1 - 2 a - 4
