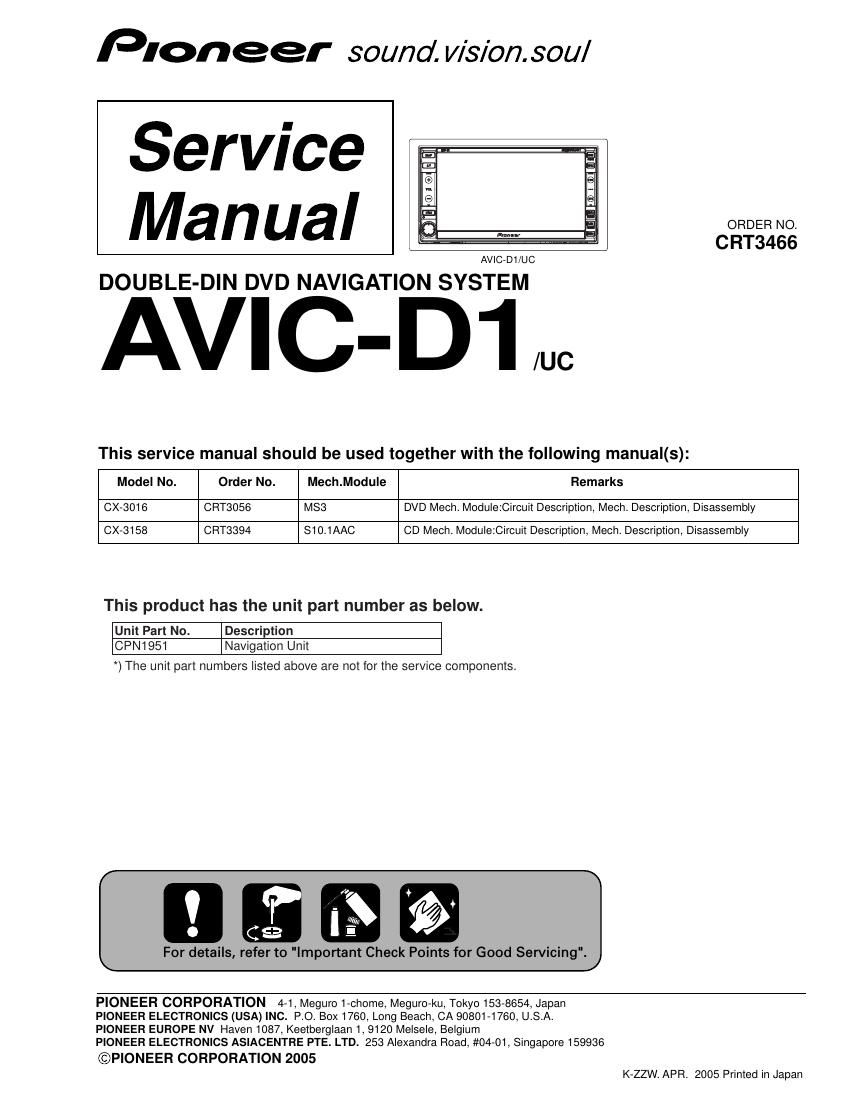

Pioneer avicd 1 service manual
This is the 276 pages manual for pioneer avicd 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer avicd 1 service manual (Ocr-read)
Page 1
AVIC-D1/UC 2 1234 1234 C D F A B E SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourself er. Qualified technicians have the necessar y test e quipment and tools, and have been trained to properl y and safel y re pair performed can adversel y affect the andreliabilit yof theproduct andma yvoidthe . Ifyou arenot qualified to therepair of thisproduct properl yand ,you shou ldnot risktryin gto do so WARNINGWARNINGW This product contai nslead in solde randcer tai nelect rical parts contai n che micals which areknown to the state of Health & Safet y Code Section 25249.6 - Pro position 6 5 This product contains mercury. Disposal of this material may be re gulated due to environmental considerations. For disposal or recyclin g information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. DVD MECHANISM MODULE section precaution 1. EJECT LOCK MODE for DVD mechanism In order to enter "EJECT LOCK" mode, reset start while pressing the "AV" and "INFO" keys together. Pressing the "AV" and "INFO" keys until monitor backlight is turned on. In order to exit "EJECT LOCK" mode, follow the same steps to enter this mode. 2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY" . 4. After replacing the pickup unit, be sure to skew adjustment. 5. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. CD MECHANISM MODULE section precaution 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder) by referring to "the DISASSEMBLY". 3. After replacing the pickup unit, be sure to check the grating. - Service Precautions 1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. is a trademark of DVD Format/Logo Licensing Corporation.
Page 2
AVIC-D1/UC 3 5678 567 8 C D F A B E [Important Check Points for Good Servicing]In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. 0 Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
