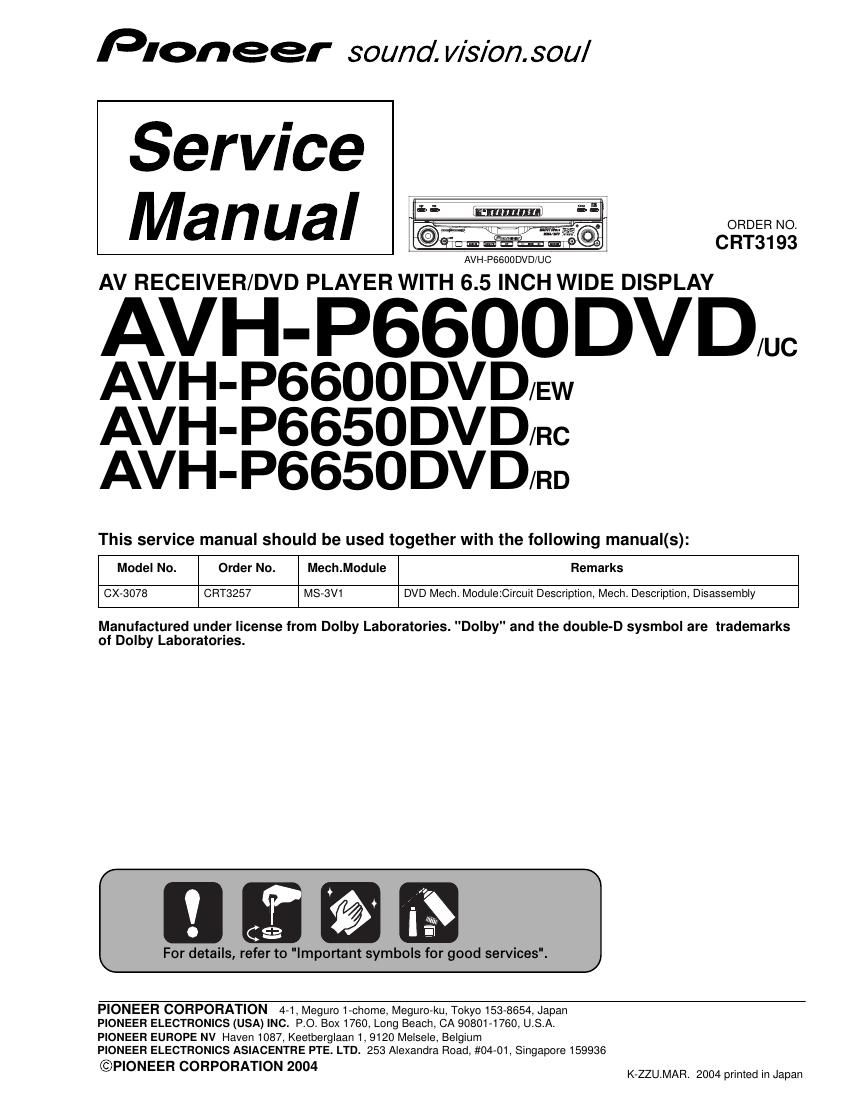

Page 1

Pioneer sound. vision. sou/

Service
Manual

AV RECEIVER/DVD PLAYER WITH 6.5 INCH WIDE DISPLAY

AVH-P6600 DVD/c

AVH-P6600 DVD/Ew
AVH-P6650 DVD/ac
AVH-P6650 DVD/no

This service manual should be used together with the following manual(s):

ORDER NO.

CRT3193

AVHrPBBOODVD/UC

Model No. Order No. Mech.Module Remarks

CX-3078 CRT3257 MS-3Vl DVD Mech. Module:Circuit Description, Mech. Description, Disassembly

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D sysmbol are trademarks
of Dolby Laboratories.

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

QPIONEER CORPORATION 2004 K-ZZUMAFl. 2004 printed in Japan

Page 2

SAFETY INFORMATION

UC
CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
lf you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

This product contains mercury. Disposal of this material may be regulated due to
environmental considerations. For disposal or recycling information, please contact
your local authorities or the Electronics Industries Alliance: www.ciaeorg.

EW

1. Safety Precautions for those who Service this Unit.
- Follow the adjustment steps (see pages 143 through 156lin the service manual when servicing this unit. When check
ing or adiusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.

Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not View laser beam for 10 seconds or longer.

2. The triangular label is attached to the mechanism
unit frame.
