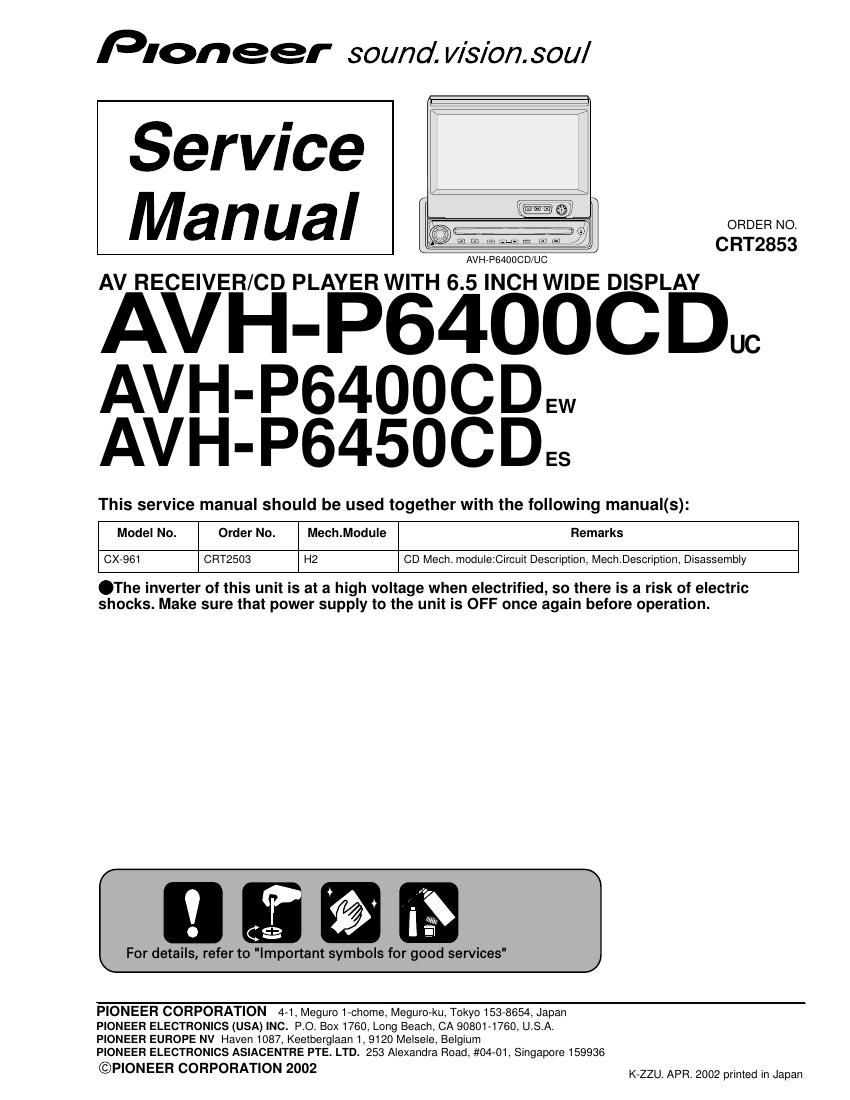

Page 1

Pioneer sound. visionsoul

Service
Manual

AV RECEIVER/CD PLAYER WITH 6.5 INCH WIDE DISPLAY

AVH-P64OOCDUC

AVH-P64OOCDEW
AVH-P6450CDES

This service manual should be used together with the following manual(s):

ORDER NO.

CRT2853

AVHrPSAODCD/UC

Model No. Order No. Mech.Module Remarks

CX-961 CRT2503 H2 CD Mech. module:Circuit Description, MechDescription, Disassembly

.The inverter of this unit is at a high voltage when electrified, so there is a risk of electric
shocks. Make sure that power supply to the unit is OFF once again before operation.

ago.

For details, refer to "Important symbols for good services"

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2002 K.zzu, APFL 2002 printed in Japan

Page 2

I 2 I 3 I 4

SAFETY INFORMATIO

. Service Precautions a

CD section precaution

1. Before disassembling the unit, be sure to turn off
the power. Unplugging and plugging the connectors
during power»on mode may damage the ICs inside
the unit.

2. To protect the pickup unit from electrostatic
discharge during servicing, take an appropriate
treatment (shorting pin) by referring to "the
DISASSEMBLY" on page 98.

3. After replacing the pickup unit, be sure to check
the grating. (See p.92.)

UC

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual doiitiyourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

ES

Battery Note :

- Use a CR2025 (3V) lithium battery
only. Never use other types of battery
with this unit.

Slide the tray out on the back of the
remote controller and insert the battery
with the (+) and (-) poles pointing in
the proper direction.

CAUTION

Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type.

2 AVH-P64OOCD/UC
-
