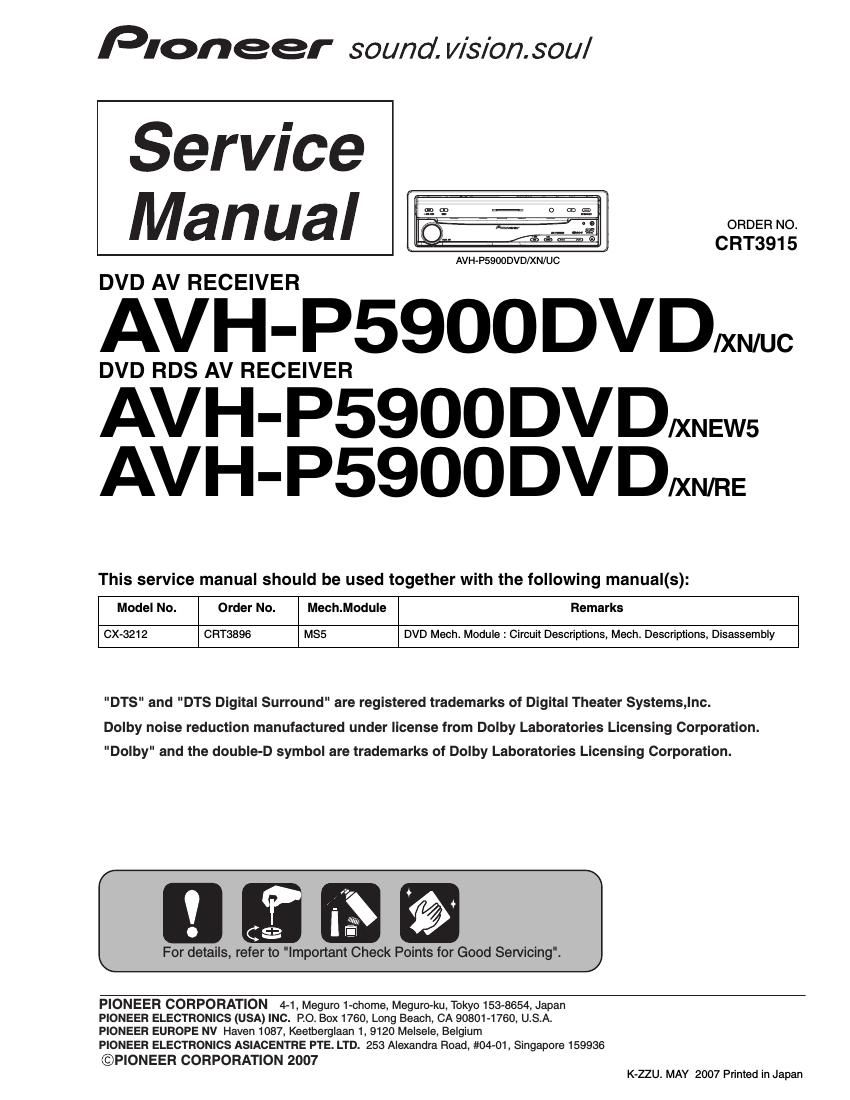

Page 1

Pioneer sound. ViS/on.sou/

Service
Manual

DVD AV RECEIVER

DVD RDS AV RECEIVER

AVH' P5900 DV D/XNEW5
AVH-P5900DVDWRE

This service manual should be used together with the following manual(s):

ORDER NO

CRT3915

AVH-PSQOODVD/XN/UC

Model No. Order No. Mech.Module Remarks

CX-3212 CRT3896 M85 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly

"DTS" and "DTS Digital Surround are registered trademarks of Digital Theater Systemanc.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801 -1760, USA.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2007
K-ZZU. MAY 2007 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk twing to do so
and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

This product contains mercury. Disposal of this material may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or the Electronics Industries

Alliance: www.eiae.org.

The backlighting lamp of LCD in this equipment contains mercury. Disposal of this material may be
regulated due to environmental considerations according to Local, State or Federal Laws. For disposal
or recycling information, please contact your local authorities or the Electronics Industries

Alliance: www.eiae.org

1. Safety Precautions for those who Service this Unit.
' Follow the adjustment steps in the service manual when servicing this unit. When check -
ing or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.

Caution:
1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

2. The triangular label is attached to the mechanism
unit frame.

CAUTION

This product contains a laser diode of higher class
than 1.To ensure continued safety, do not
remove any covers or attempt to gain access to
the ll'lSlde of the product.

Refer all serVICing to qualified personnel

The followmg caution label appears on your unit.

On the top of the player.

. ma-vs-Lsmomsmzimmmmmm.
CAUTION mu m mu: mam.
VD HT' -a Elm' A-nexuuc arm-APE UND urea-«But
FISIC um in m 3- IM mm vu-wmm.
Am New can WI

ADVARSEL' mammawmm ""1

. was a- smusumusmus mums u-n EBINAEEL
VARNING .a m. umm HIS-"A us run srmLEi.

VARD" w-maanuflmrm MKVVAusJANaKvMArr-M-usunuu
a- L-saAreLvuL ILA ma: SHEEN.

ATI'ENTIDN' MUM-D5 m- va-Lszrmvfi-Lscsam :- mm:

2 AVH-P5900DVD/XN/U C
