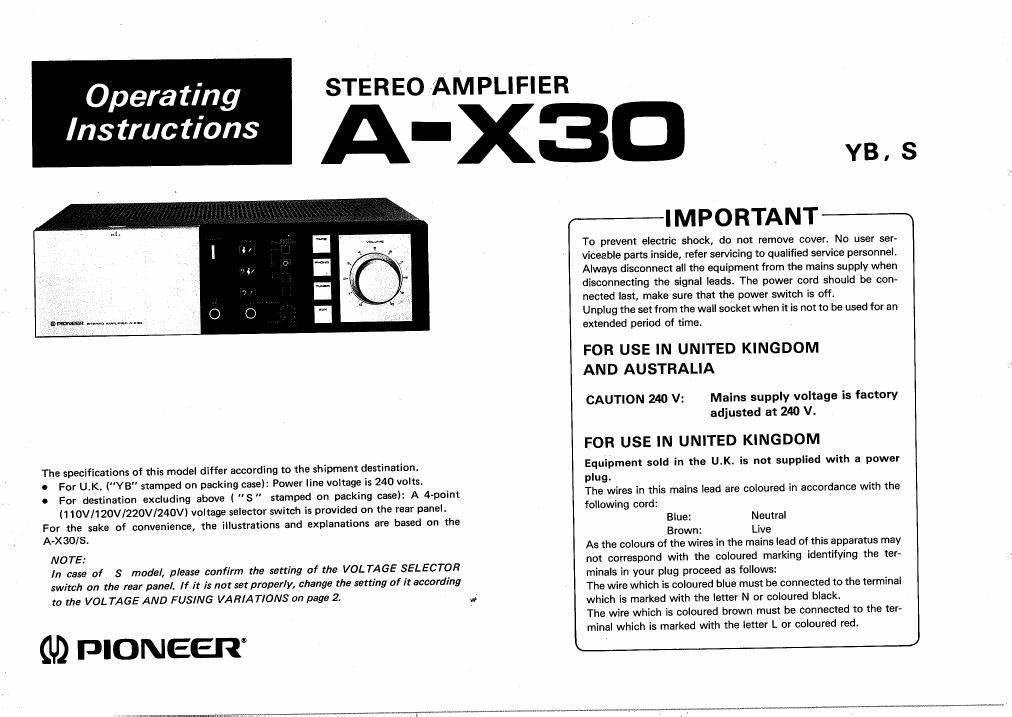

Page 1

Operating STEREO AMPLIFIER
Ins truc tions A- x30
YB. s

IMPORTANT---w

To prevent electric shock, do not remove cover. No user ser-
viceable parts inside, refer servicing to qualified service personnel.
Always disconnect all the equipment from the mains supply when
disconnecting the signal leads. The power cord should be con;
nected last, make sure that the power switch is off.

Unplug the set from the wall socket when it is not to be used for an
extended period of time.

FOR USE IN UNITED KINGDOM
AND AUSTRALIA

CAUTION 240 V: Mains supply voltage is factory
adjusted at 240 V.

FOR USE IN UNITED KINGDOM

The specifications of this model differ according to the shipment destination. Equipment sold in the U.K. is not supplied with a power
I For U.K. ("YB" stamped on packing case): Power line voltage is 240 volts. plug.
0 For destination excluding above ( S " stamped on packing case): A 4»point The wires in this mains lead are coloured in accordance with the
(110V/120V/220V/240V) voltage selector switch is provided on the rear panel. following cord:
For the sake of convenience, the illustrations and explanations are based on the Blue: Neutral
A-XSO/S. Brown: Live
NOTE: As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured marking identifying the ter-

In case of S model, please confirm the setting of the VOLTAGE SELECTOR minals in your plug proceed as follows
switch on the rear panel. If it is not set properly, change the setting of it according . . . ' l
b th
to the VOL TAGE AND FUSING VARIATIONS on page 2' d The ware whlch is coloured blue must e connected to e terminal
which Is marked With the letter N or coloured black.

The wire which is coloured brown must be connected to the ter-
(U) momma-32° L

minal which is marked with the letter L or coloured red.

Page 2

VOLTAGE AND FUSING VARIATIONS

You will find the line voltage selector switch on rear panel. This switch has positions for 110V, 120V,
220V and 240V power sources.
Before your receiver is shipped from the factory, the switch is set to the power requirements of the
destination; nevertheless, you should check that it is set properly before plugging the power cord into
the outlet. If the voltage is not properly set or if you move to an area where the voltage requirements
differ, adjust the selector switch as follows. Before adjusting, disconnect the power cord.

1. Unscrew the fuse cap with a Phillips screwdriver, then take out the fuse and plug.

2. Re-install the plug with its cutaway section exposing the correct voltage indication as shown in the

illustration below.

3. Refer to the table and install a replacement fuse (provided as an accessory).
4. Insert the fuse in the fuse cap, then fit the cap to the plug and tighten.

Table
Voltage Fuse
110V,120V 1,5A
220V, 240V 0.3A

Phillips screwdriver %
