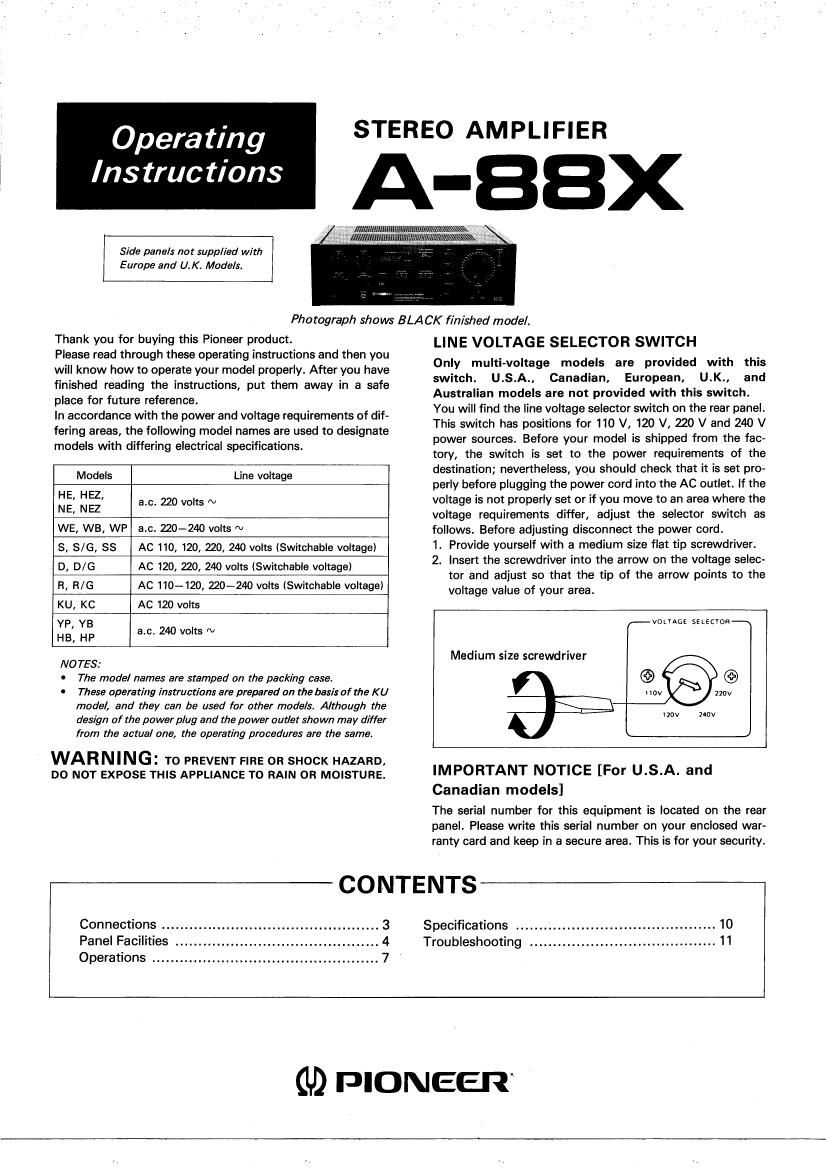

Page 1

Opera ting

Ins truc tions

Side pane/s not supplied with
Europe and U.K. Models,

STEREO AMPLIFIER

A-BBX

Photograph shows BLACK finished model.

Thank you for buying this Pioneer product.

Please read through these operating instructions and then you
will know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

In accordance with the power and voltage requirements of dif-
fering areas, the following model names are used to designate
models with differing electrical specifications.

Models Line voltage

HE, HEZ.
NE, NEZ

WE, WB, WP a.c. 20-240 volts ~

3.0. 220 volts N

S, 8/6, 58 AC 110, 120, 220, 240 volts (Switchable voltage)
D, D/ G AC 120, 220, 240 volts (Switchable voltage)

R, R/G AC 110-120, 220~240 volts (Switchable voltage)
KU, KC AC 120 volts

VP, YB

HB, HP a.c. 240 volts ~

NOTES:

0 The model names are stamped on the packing case.

0 These operating instructions are prepared on the basis of the K U
model, and they can be used for other models. Although the
design of the power plug and the power outlet shown may differ
from the actual one, the operating procedures are the same.

WARNING: TO PREVENT FIRE on SHOCK HAZARD,
DO NOT expose nus APPLIANCE TO RAIN on MOISTURE.

Connections ......
Panel Facilities ...

CONTENTS

3
4
Operations ........ .... ..................................... 7

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this
switch. U.S.A., Canadian, European, U.K., and
Australian models are not provided with this switch.
You will find the line voltage selector switch on the rear panel.
This switch has positions for 110 V, 120 V, 220 V and 240 V
power sources. Before your model is shipped from the fac-
tory, the switch is set to the power requirements of the
destination; nevertheless, you should check that it is set pro-
perly before plugging the power cord into the AC outlet. If the
voltage is not properly set or if you move to an area where the
voltage requirements differ, adjust the selector switch as
follows. Before adjusting disconnect the power cord.
1. Provide yourself with a medium size flat tip screwdriver.
2. Insert the screwdriver into the arrow on the voltage selec~
tor and adjust so that the tip of the arrow points to the
voltage value of your area.

vmuez SELECTOR

Medium size screwdriver

IMPORTANT NOTICE [For U.S.A. and
Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war»
ranty card and keep in a secure area. This is for your security.

Specifications ....
Troubleshooting .

(U) PIONEER

Page 2

i
1

SAFETY INSTRUCTIONS

READ INSTRUCTIONS - All the eatery and
operating instnrctlons should be read belcre the
appliance is operated.

RETAIN INSTRUCTIONS - The operating instruc-
tions should be retained for future reterenee.
HEED WARNING - All waminge on the appliance

and in the operating instructions should be adhered

to.

FOLLOW INSTRUCTIONS - All operating and use
instrucu'ons should be followed.

WATER AND MOISTURE - The appliance should
not be used near water - ior example, near a
bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool, etc.

LOCATION - The appliance should be installed in a
stable location.

WALL OR CEILING MOUNTING - The appliance
should not be mounted to a wall or ceiling.

VENTILATION 7 The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or
similar surfaoe that may block the ventilation open-
ings; or, placed in a built-in installation, such as a
bookcase or cabinet that may impwe the View at
air through the ventilation ope 5.

HEAT v The appliance should be situated away horn
heat sources such as radiators, heat registers,
stoves, or other appliancea lincluding amplifiers)
that produce heat.

POWER SOURCES - The awlianw should be con-
nected to a power supply only at the type describe
ed in the operating instructions or as marked on the
appliance.

POWER-CORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by item: placed upon or
against them, paying particular attention to cords
at plugs, convenience receptacles, and the point
where they exit hem the appliance.

POLARIIATION 7 If your purchased product is pro-
vided with a polarized power plug, please read the
following instructions. This product ls equipped
with a polarized ahernating current line plug (a plug
having one blade wider than the other). This Plug
will fit into the power outlet only one way. This is a
safety feature. It you are unable to insert the plug
fully into the outlet, try reversing the plug. it the
plug should still tail to lit, Contact your electrician
to replace your obsolete outlet. Do not detect the
safety purpose or the polarized plug.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with iurniture wax, benxine, insecticides or
other volatile liquids since they may corrode the
cabinet

POWER LINES - An outdoor antenna should be
located away from power lines,

NONUSE PERIODS - The power cord of the ap-
pliance should be unplugged from the outlet when
lert unused for a long period ol time.

OBJECT AND LIQUID ENTRY - Care should be
takan so that objects do not fall and llqulds Ire not
ephled Into the ettclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance
should be serviced by Pioneer authorized service
center or qualified service personnel when:

. The power-supply cord or the plug has been,
damaged; or

' Oblects have fallen, or liquid has been spilled into
the appliance; or

i The appliance has been exposed to rain; or

- The appliance does not appear to operate normally
or exhlblts a marked change in performance; or

The appliance has been dropped; or the enclosure
damaged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the
operating instructions. For all other servicing, oorl-
tact the nearest Pioneer authorized service center.

OUTDOOR ANTENNA GROUNDING - Ii an

outside antenna is connected to the antenna
terminal. be sure the antenna system is
grounded so as to provide some protection
against voltage surges and built up static
charges.
In the UtS,Ai section 810 of the National Elec-
tricel Code, ANSI/NEPA No. 70493., Pro-
vides inlormartion with respect to proper
grounding ot the mast and supporting struc-
ture, groundlng ol the lead-in wire to an anten-
na diecherge unit, elite of grounding conduc-
tors, Iocation ot antenna-discharge unit, con-
noction to grounding electrodes, and re-
quirements lor the grounding electrode. See
Fig. A.

a) Uta No, 10 AWG 153 mm!)
copper, N a AWG (8.4
mm") all! III, Not 17
AWG (1,0 mm) coppeo
clad steel. bronze wire, or
larger as ground wlre.

b) Secure antenna lead-in and
rrr'sritlrér'ts o ground wim to house with
stand-off insulators wed
ham 4 feet (122 meters) to

6 total (LBS rivets-e) apart.
cl Mount antenna discharge
unit as oloaely on possible to

intern.
M" W where loadrln enters house.

to EXYEKNAI. manna dl Use Jumper wire not smaller
"'mls ° "W then No.6 AWG 3.3 mm)
copper or equivalent when

-;,g§p";';6w,.,& separate antenna-ground-
silylcEiNVRANcE rng electrode rs used,
r Imam (,ng

MEL!)
mwzk sEkv -
ckothDlNG rcrtoossvsttu
ltq lnlemlm'ulmml .u DWMMEW

ctourlpwc Eticrloos

aoupmo I o
JUMPER a I l

FIG-A "

mot e ratt l2 u mi
N") VNE ram IF
law-urn art
I. tout coo: E

use SECW era-2r Ill

IMPORTANT 1

The lightning (lash with arrowhead, within an
equilateral triangle, is intended to alert the user or the
presence cl uninsulered "dangerous voltage" within the
products enclosure that may be or surlicient magnitude
to constitute a risk at electric shock rc persons.

CAUTION

RISK OF [LELTRI HOCK
DO NOT 0pr

CAUTION:

T0 PREVENTTHE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACKL N0 USER-
SERVICEABLE PARTS INSIDE. REFER SERVIC-
iNG TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alert the user of the presence of important
oper ng and maintenance (servicing) instructions in
me literature accompanying the appliance.

IMPORTANT 2

lithe apparatus is fitted with Al: mains power dutletle).
see REAR PANEL FACILITIES tor convenient connec-
tion of additional Hi-Fi component(sl. Make all connec-
tions to the AC outlethtl and the signal terminals first.
Connect'the plug to the wall eocltet last, make sure that
the power switch is off. Disconnect the wall plug when
the equipment is not in (regular) use, e.g. when on
vacation.

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in accordance
with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead at this ap~
paratus may not correspond with the coloured marlting
Identilying the terminals in your plug proceed as
follows:

The wire whlch is coloured blue must be connected to
the terminal which is marked with the letter N or col»
oured black.

The wire which is coloured brown must be connected to
the terminal whlch is marked with the letter L Or col-
oured red.

Equipment sold In the 0.x s not supplled with a
power plug.
