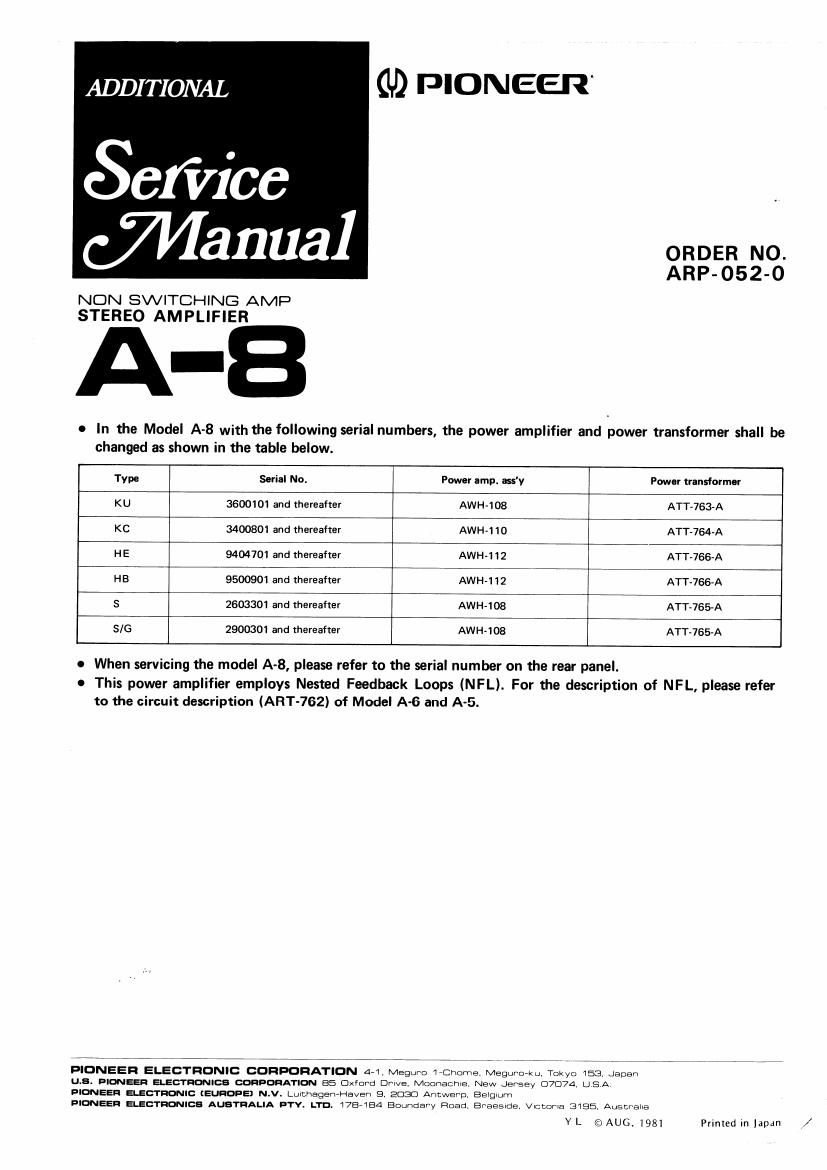

ADDITIONAL GD PIONEER"
Sefiicc
c7l/Ianua1 germ
NON SWITCHING AMP
STEREO AMPLIFIER
A-B
o In the Model A-8 with the following serial numbers, the power amplifier and power transformer shall be
changed as shown in the table below.
Type Serial No. Power amp. ass'y Power transformer
KU 3600101 and thereafter AWH»108 ATT-763-A
KC 3400801 and therEafter AWH-110 ATT»764-A
HE 9404701 and thereafter AWH-112 ATT-766-A
HB 9500901 and thereafter AWH-112 * ATT-766-A
5 2603301 and thereafter AWH-108 ATT-765-A
S/G 2900301 and thereafter AWH-108 ATT-765»A
0 When servicing the model A-8, please refer to the serial number on the rear panel.
0 This power amplifier employs Nested Feedback Loops (NFL). For the description of NFL, please refer
to the circuit description (ART-762) of Model A-6 and A-5.
