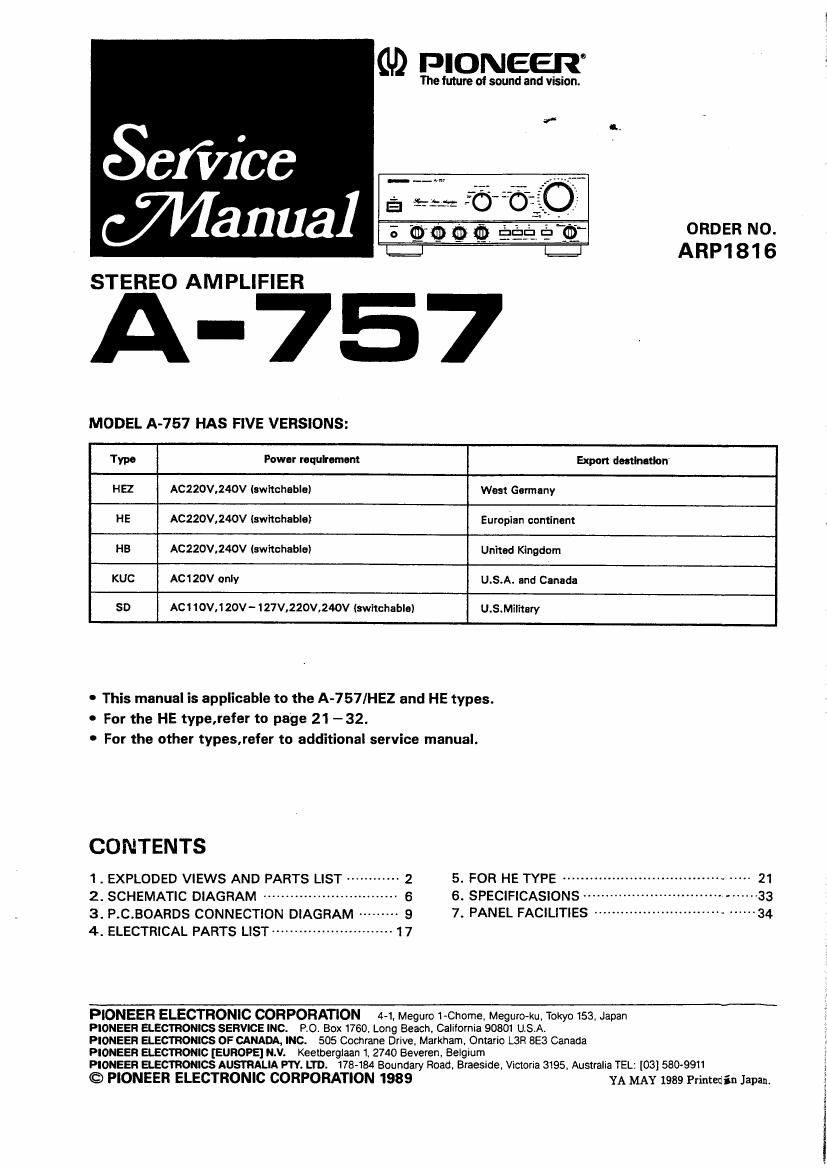

Q4) PIONEER

The tuture of sound and vision.
r
I,
ORDER NO.
ARP 1 81 6
STEREO AMPLIFIER
MODEL A-757 HAS FIVE VERSIONS:
Type Power requlramem Expert dmlmflon
HEZ AC220V,240V (switchable) West Germany
HE Aczzov,24ov lswhchable) Europian confluent
H8 AC220V.24DV (switchable) Unked Kingdom
KUC ACIZOV only U.S.AV and Canada
so ACI 10v,12ov- 127v,220v,24ov (switchable) u.s.MiIRary
0 This manual is applicable to the A-757/HEZ and HE types.
- For the HE type,refer to page 21 --32.
0 For the other types,refer to additional service manual.
CONTENTS
1 . EXPLODED VIEWS AND PARTS LIST ~~~~~~~~~~~~ 2 5. FOR HE TYPE --------------------------------------- 21
2. SCHEMATIC DIAGRAM ------------------------------ 6 6. SPECIFICASIONS --------------------------------- 33
3. P.C.BOARDS CONNECTION DIAGRAM - ~ 9 7. PANEL FACILITIES ------------------ 34

4_ ELECTRICAL PARTS LIST ------------------ 17

PIONEER ELECTRONIC CORPORATION 44, Meguro IChome. Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. 90 Box 1760. Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA. INC. 505 Cochrane Drive, Markham, Ontario L3R 853 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keeiberglaan 1, 2740 Beveren, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Braeside, Victoria 3195, AustraIIa TEL: [03] 58099"

© PIONEER ELECTRONIC CORPORATION 1989 YA MAY 1989 Printedin Japan.

Page 2

1 . EXPLODED' VIEWS AND PARTS LIST

NOTES:

0 Part: withoul part number cannot be supplied.

0 The A mark found on some component pam indicates the importance of the safety

factor of the pan. Therefore, when replacing, be sure to use parts of identical designa-

lion

0 Part: marked by Q " are not always kept in stock. Their delivery time may be longer

than usual or they may be unavailable.

Description

Part No

Mark No.

Description

Part No.

Mark No.
