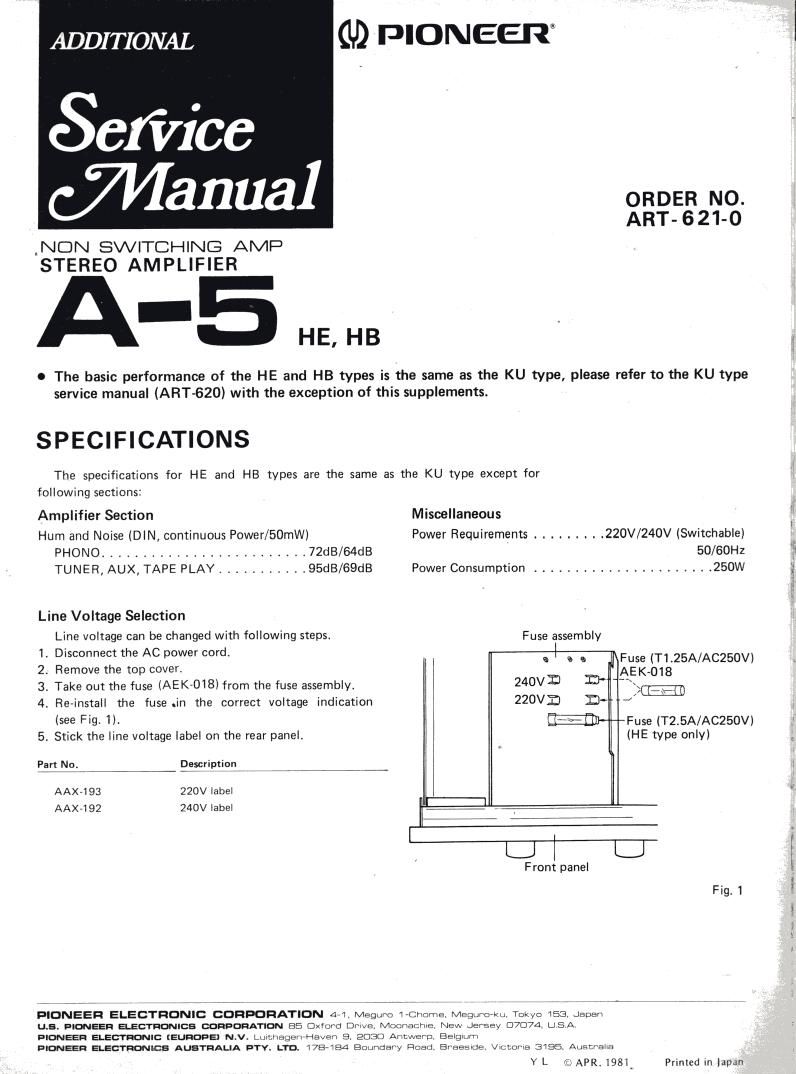

Page 1
ADDITIONAL (U) PIONEER
orifice
Wanna] 229.52%-
_NDN SWITCHING AMP
STEREO AMPLIFIER
A-E m
0 The basic performance of the HE and HB types is the same as the KU type, please refer to the KU type
service manual (ART-620) with the exception of this supplements.
SPECIFICATIONS
The specifications for HE and HB types are the same as the KU type except for
following sections:
Amplifier Section Miscellaneous
Hum and Noise (DIN, continuous Power/SOle Power Requirements ......... 220V/240V (Switchable)
PHONO ......................... 72dB/64dB 50/60HZ
TUNE R, AUX, TAPE PLAY .......... 95dB/69dB Power Consumption ...................... 250W
Line Voltage Selection
Line voltage can be changed with following steps Fuse assembly
. Disconnect the AC power cord. Fuse (T1 25A/AC250V)
Q Q Q
. Remove the top cover. EK-OIB
240v21 I)-
. Take out the fuse (AEK-OIBI from the fuse assembly
Reinstall the fuse tin the correct voltage indication 220V3 B.
(see Fig. 1), ~\- Fuse (T2.5A/AC250V)
5 Stick the line voltage label on the rear panel. (HE type only)
Pure--
Part No. Discription
AAX7193 220V label
AAX-l92 240V label
Front panel
Fig. l
PIONEER ELECTRONIC CORPORATION cm. Meguro 17 hams. Magma-m. Tokyo 153. Japari
u.a. FIO'VEER ELECTRONICS CORPORATION 85 Dxfuro DrivF, Moumume. New Jersey D7074, USA
PIONEER ELEcrnoNII: (EUROFE) N.Vt Luniagefl HEVE" a 2030 Armerp. Belgium
FIONEER ELECTRONICS AUSTRALIA DTV. LTD. WEABA Boundary Road. lav-segue VICSDPE 3195 Australia
Y L 1:; APR. 1981_ Printed In Iapan
