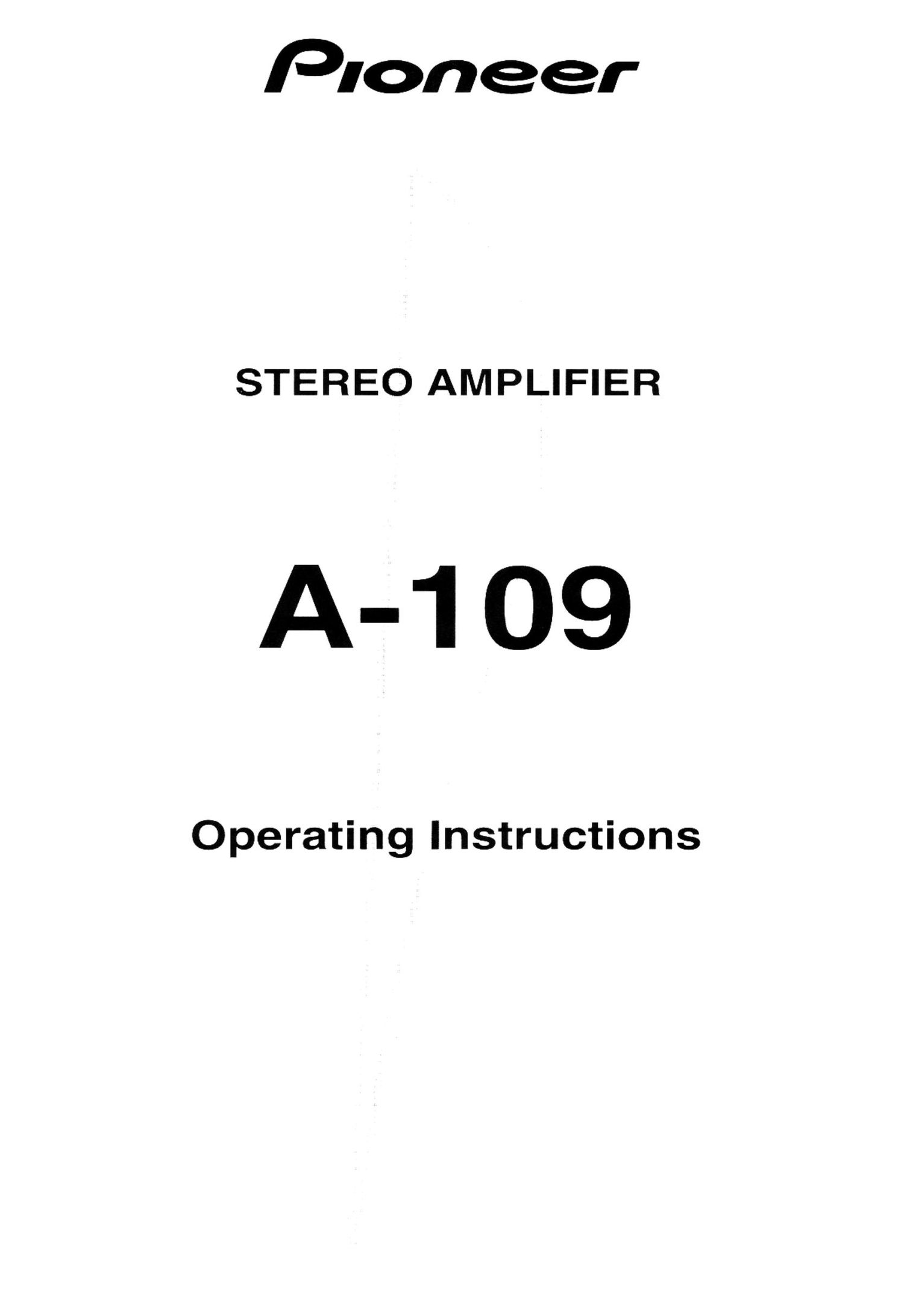

STEREO AMPLIFIER

A-1 09

Operating Instructions

Page 2

Thank you for buying this PIONEER product.

Please read through these operating instructions so you will
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting

WARNING: TO PREVENT FIRE on SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
TURE.

This product complies with the Low Voltage Directive (73/
23/EE C), EMC Directives (89/336/EE C, 92/3 i/EE C) and CE
Marking Directive (93/68/EEC).

and operating the unit is the same.

IMPORTANT

The lightning flash with arrowhead Symbol, Within an
eQUiIateral triangle, is intended to alert the user to the
presence of uninsulated 'danger0us voltage' Within the
products enclosure that may be of Sufficient magnitude
to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). N0 USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The exclamation pomt wtni a' ea- ate'a t' arge s
intended to alert the use' to the crese":e : mortar:
operatingand maintenanceiseri : '; Sf-:. C'S " -3
literature accompanying the ac: a :e

IMPORTANT

FOR USE IN THE UNITED
KINGDOM

The wires in this mains load are coloured in
accordance with the following code :

Blue : Neutral

Brown : Liva
If the plug prowded is unsuitable for your socket

The cut-off plug shOuId be disposed of and must not be
inserted into any 13 amp socket as this can reSult in electric
shock. The plug or adapter or the distribution parel should
be prowded With a 5 amp fuse. As the colours of the wires
in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug.
proceed as follows '

The Wire which is coloured blue must be connected to the
terminal which is marked With the letter N or coloured black.
The Wlfe which is coloured brown must be connected

to the terminal which is marked With the letter L or colowed

Do not connect either wire to t'e 88". '9" '5 3,: a
three-pin plug

NOTE

After replacmg or changing a use 1*:- '.se :v. .e' n the
plug must be replaced th a .se :c.e' .-.* :" :o're
sponds to the colour of the rse-t t'e case :' t:- Dlug

orthe wordthatisembossec 0 79 case :' e : -g and
the appliance must not be ..sec .-. 701 a use :: .e If

outlets, the plug must be cut off and a suitable plug red'

fitted.

lost, replacementfuse COVE's :ar :e oca re: ":~- your
dealer.
Only 5 A fuses approved 0. S S. ;' L E ' -'« B S,

1362 should be used.

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by
tugging the cord and never touch the power cord when your
hands are wet as this could cause a short circuit or electric
shock. Do not place the unit, a piece of furniture, etc., on the
power cord, or pinch the cord. Never make a knot in the cord
or tie it with other cords. The power cords should be routed
such that they are not likely to be stepped on. A damaged
power cord can cause fire or give you an electrical shock.
Check the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized service
center or your dealer for a replacement.

2

MAINTENANCE OF EXTERNAL SURFACES

0 Use a polishing cloth or dry cloth to wipe off dust and
dirt.

a When the surfaces are very dirty, wipe with a soft cloth
dipped in some neutral cleanser diluted five or six times
with water, and wrung out well, and then wipe again
with a dry cloth. Do not use furniture wax or cleaners.

0 Never use thinners, benzine, insecticide sprays or other
chemicals on or near this unit, since these will corrode
the surfaces.
