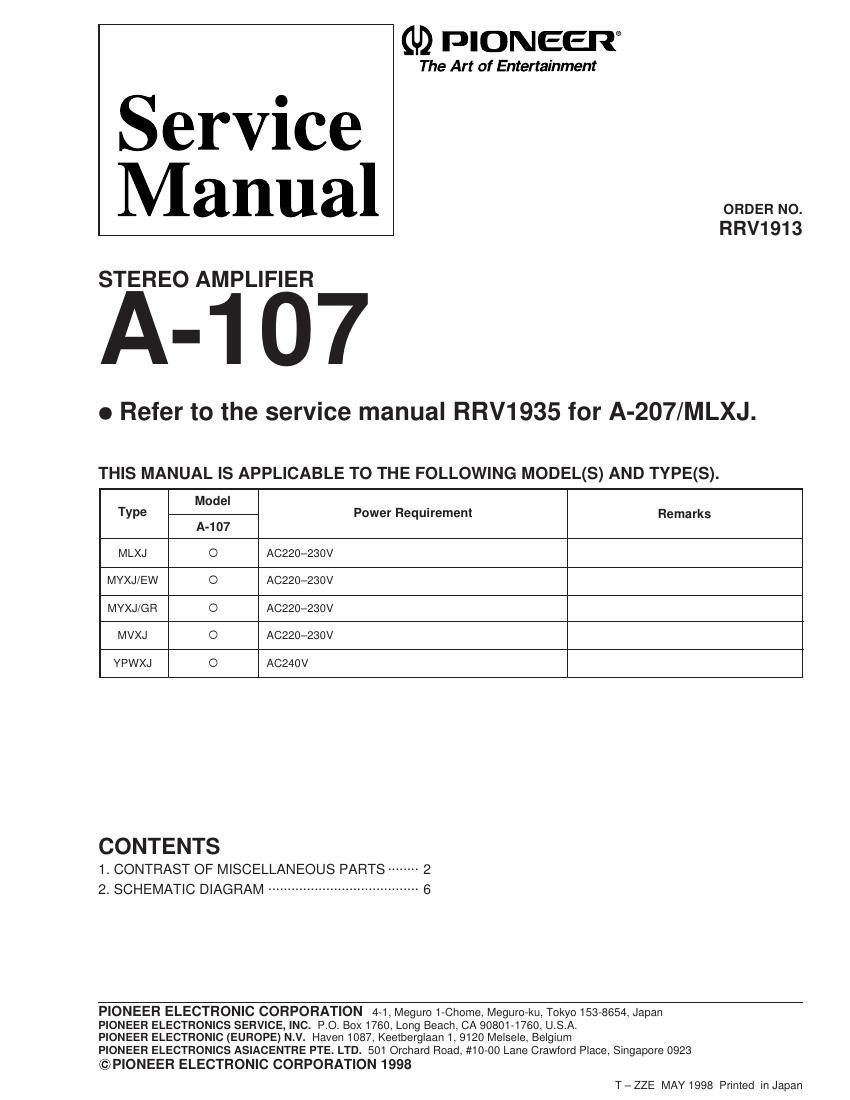

Pioneer a 107 service manual
This is the 8 pages manual for pioneer a 107 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer a 107 service manual (Ocr-read)
Page 1
A-107 2 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE A-107/MLXJ, MYXJ/EW, MYXJ/GR and A-207/MLXJ are constructed the same except for the following: Part No. Ref. No. Mark Symbol and Description A-207 A-107 Remarks MLXJ MLXJ MYXJ/EW MYXJ/GR PCB ASSEMBLIES NSP CONTROL ASSY AWG7012 AWG7011 AWG7011 AWG7011 P5 - 2 FRONT R ASSY AWX7121 AWX7121 AWX7121 AWX7121 P5 - 1 FRONT L ASSY AWX7122 AWX7120 AWX7120 AWX7120* NSP AF COMPLEX ASSY AWM7355 AWM7353 AWM7353 AWM7353 P5 - 6 VOLUME ASSY AWX7112 AWX7112 AWX7112 AWX7112 P5 - 4 AC PRIMARY ASSY AWX7113 AWX7113 AWX7113 AWX7113 P5 - 5 NSP HEADPHONE ASSY AWX7114 AWX7114 AWX7114 AWX7114 P5 - 7 AF ASSY AWX7116 AWX7111 AWX7111 AWX7111* PACKING P3 - 1 Operating Instructions ARE7158 ARE7158 Not used Not used (Engkish/Spanish/Chinese) P3 - 1 Operating Instructions (English) Not used Not used ARB7137 Not used P3 - 1 Operating Instructions (German) Not used Not used ARC7178 ARC7178 P3 - 1 Operating Instructions Not used Not used ARC7179 Not used (French/Spanish/Italian/Dutch/ Swedish/Portuguese) P3 - 5 Packing Case AHD7562 AHD7560 AHD7559 AHD7559 NSP Warranty Card Not used Not used ARY7009 ARY7009 EXTERIOR SECTION P5 - 8 Fuse (FU1 : 1.25A) REK1023 Not used Not used Not used P5 - 8Fuse (FU1 : 0.8A) Not used REK1021 REK1021 REK1021 P5 - 11Power Transformer ATS7190 ATS7192 ATS7192 ATS7192 (T1 : AC220Ð230V) P5 - 13 Rear Panel ANC7642 ANC7637 ANC7620 ANC7620 P5 - 14 Insulator AMR7198 AMR7198 PNW2766 PNW2766 P5 - 16 Screw ABA1027 BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK P5 - 38 Front Panel AMB7492 AMB7491 AMB7491 AMB7491 NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F Note *: Refer to Ò 7 CONTRAST OF PCB ASSEMBLIES Ó and Ò 2. SCHEMATIC DIAGRAM Ó.
Page 2
A-107 3 A-107/MVXJ, YPWXJ, and A-207/MLXJ are constructed the same except for the following: Part No. Ref. No. Mark Symbol and Description A-207 A-107 Remarks MLXJ MVXJ YPWXJ PCB ASSEMBLIES NSP CONTROL ASSY AWG7012 AWG7011 AWG7011 P5 - 2 FRONT R ASSY AWX7121 AWX7121 AWX7121 P5 - 1 FRONT L ASSY AWX7122 AWX7120 AWX7120*1 NSP AF COMPLEX ASSY AWM7355 AWM7353 AWM7353 P5 - 6 VOLUME ASSY AWX7112 AWX7112 AWX7112 P5 - 4 AC PRIMARY ASSY AWX7113 AWX7113 AWX7113 P5 - 5 NSP HEADPHONE ASSY AWX7114 AWX7114 AWX7114 P5 - 7 AF ASSY AWX7116 AWX7111 AWX7111*1 PACKING P3 - 1 Operating Instructions ARE7158 Not used Not used (English/Spanish/Chinese) P3 - 1 Operating Instructions (English) Not used ARB7137 ARB7137 P3 - 5 Packing Case AHD7562 AHD7559 AHD7560 P3 - 9 Power Cord ADG1154 Not used ADG1160 Power Cord with Fuse Not used ADG1156 Not used*2, No.1Fuse (T5A) Not used AEK1046 Not used*2, No.2 NSP Air Cap Not used AHG1087 Not used*2, No.3 NSP Warranty Card Not used ARY7009 PRY1003*2, No.4 EXTERIOR SECTION P5 - 8 Fuse (FU1 : 1.25A) REK1023 Not used Not used P5 - 8Fuse (FU1 : 0.8A) Not used REK1021 REK1021 P5 - 11Power Transformer (T1 : AC220Ð230V) ATS7190 ATS7192 Not used P5 - 11Power Transformer (T1 : AC240V) Not used Not used ATS7193 P5 - 13 Rear Panel ANC7642 ANC7620 ANC7638 P5 - 14 Insulator AMR7198 PNW2766 AMR7198 P5 - 16 Screw ABA1027 BBZ30P080FZK BBZ30P080FZK P5 - 38 Front Panel AMB7492 AMB7491 AMB7491 Note *1: Refer to Ò 7 CONTRAST OF PCB ASSEMBLIES Ó and Ò 2. SCHEMATIC DIAGRAM Ó. *2: Refer to Ò 7 EXPLODED VIEWS Ó. EXPLODED VIEWS Literature Bag No.3 No.2 No.1 Power Cord MVXJ type Only Except MVXJ type No.4 (MYXJ/EW, MYXJ/GR and MVXJ types Only) Operating Instructions
