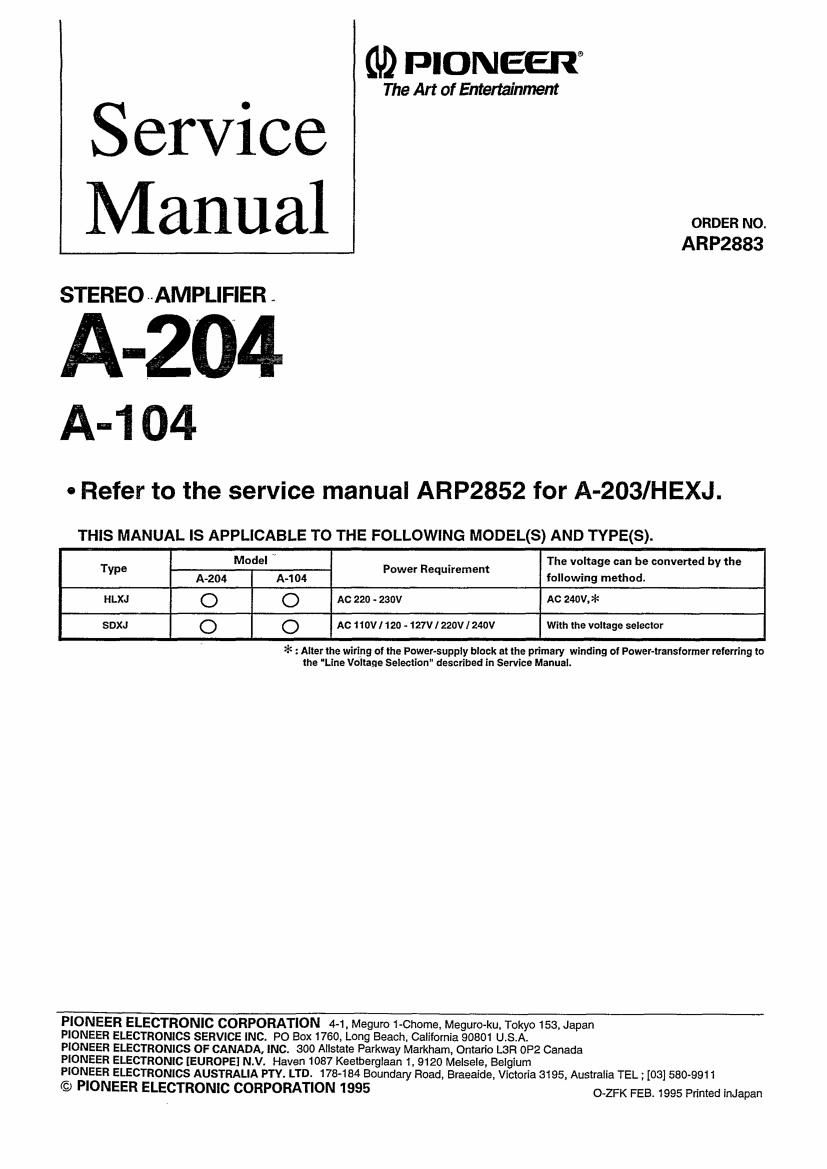

Page 1
0J2 PIONEEIT
The Art of Entertainment
Service
Manual
ARP2883
STEREO AMPLIFIER .
A-204
A=1 04
- Refer to the service manual AFIP2852 for A-203/HEXJ.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model ' _ The voltage can be convened by the
Type Power Requirement ,
A-204 A-104 followmg method.
HLXJ O 0 AC 220 - 230v Ac 24ov,*
SDXJ O 0 AC 110v / 120 - 127v I 220v / 240v Wlth the voltage selector
* : Alter Ihe wiring ni the Power-supply block a! me primary winding of Power-transformer referring to
me Line Voltage Selection" described in Service Manual.
PIONEER ELECTRONIC CORPORATION 4~1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. PO Box 1760, Long Beach, California 90801 USA.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeaide. VicIoria 3195, Australia TEL ; [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1995 0
Page 2
A-204,A-104
CONTRAST OF MISCELLANEOUS PARTS
NOTES:
0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some campanentparls indicate: the importance of the safety factor of the part. Therefore, when replacing,
be sure to use parts of identical designalion.
- Parts marked by © art not always kept in stock. Their delivery time may be longer than usual or they may by unavailable.
A-204/HLXJ, A-204/SDXJ and A-203/HLXJ have the same construction except for the following:
l
Part No.
mark Symb°' 8 Desmpm Av203/HLXJ A-204/HLXJ A-204ISDXJ Remarks
Front panel AMB2231 AMB7212 AMB7212
Rear panel AN02201 ANC7224 ANC7225
Operating instructions ARE1300 ARE7047 Not used
(English, Chinese)
Operating instructions Not used Not used ARE7048
(Engiish,Spanish, Chinese)
Paper Protector A AHA1660 AHA7061 AHA7061
Paper Protector B AHAteet AHA7062 AHA7062
Paper Protector C AHA1662 AHA7063 AHA7068
Paper Protector D Not used AHA7064 AHA7064
Packing case AHD2701 AHD7144 AHD7144
A-104/HLXJ, A-104/SDXJ and A-103/HLXJ have the same construction except for the following:
T Part No.
Mark symbdstesmpm" A-iOS/HLXJ A-104/HLXJ A-104/SDXJ Remarks
Front panel AM82284 AMB7211 AMB7211
Hear panel AN02202 ANC7222 ANC7223
Operating instructions AREt 300 ARE7047 Not used
(English, Chinese)
Operating instructions Not used Not used ARE7048
(English,8panish, Chinese)
Paper Protector A AHA1660 AHA7061 AHA7061
Paper Protector B AHA1661 AHA7062 AHA7062
Paper Protector C AHA1662 AHA7063 AHA7063
Paper Protector D Not used AHA7064 AHA7064
Packing case AHD2702 AHD7143 AHD7143
