Pioneer A 10 K Owners Manual

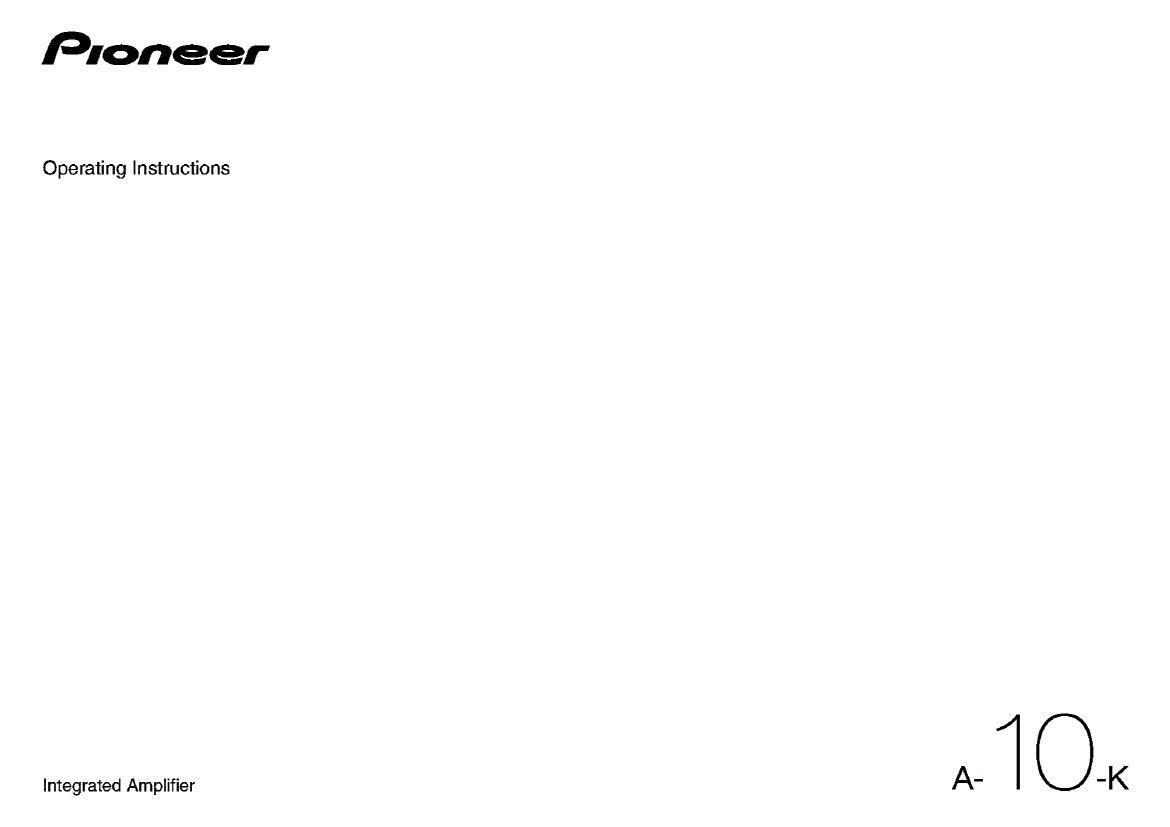

Page 1

Pioneer

Operating Instructions

Integrated Amplifier

A

-K

Page 2

IMPORTANT

A

The lightning flash with arrowhead symbol.
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
'dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to perso ns.

CAUTION:

SERVICE PERSONN EL.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

TO PREVENT THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance

D342-1-17A17En

WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase orflower
pot) or expose it to dripping, splashing, rain or
moisture.

lag-4.2.1.331!"
WARNING
Before plugging in for the first time, read the following
section carefully.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V

or 120 V) written on the rear panel.
Didi-147ALEII

WARNING

To prevent a fire hazard, do not place any naked flame

sources (such as a lighted candle) on the equipment.
DS42-1-7aAA1AEn

This product is for general household purposes. Any
failure due to use for other than household purposes
(such as longeterm use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period. @414LG

A

CAUTION:

HOT SURFACE. DO NOT TOUCH.
The top surface over the internal
heatsink may become hot when
operating this product continuously.

VENTILATION CAUTION

When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 30 cm at top, 10 cm at rear, and 10 cm at each
side).

WARNING

Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, tablecloths,
curtains) or by operating the equipment on thick carpet

or a bed.
D34-Z-1-7b7A17En

Operating Environment

Operating environment temperature and humidity:

+5 "C to +35 °C (+41 "F to +95 °F); less than 85 %RH
(cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)

DZ-4-2-1-7c7A17En

It the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cutoff plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.

The equipment should be disconnected by removing
the mains plug from the wall socket when left unused
for a long period of time (for example, when on

vacat ion) .
n24.2-2-1._A1 _Er|

CAUTION

The Oil STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation).

DM-l-Z-ZIJU _En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord ortie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause afi re or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement.
SMZ7ALEII
