Pickering TLZ 7500 MK II S Owners Manual

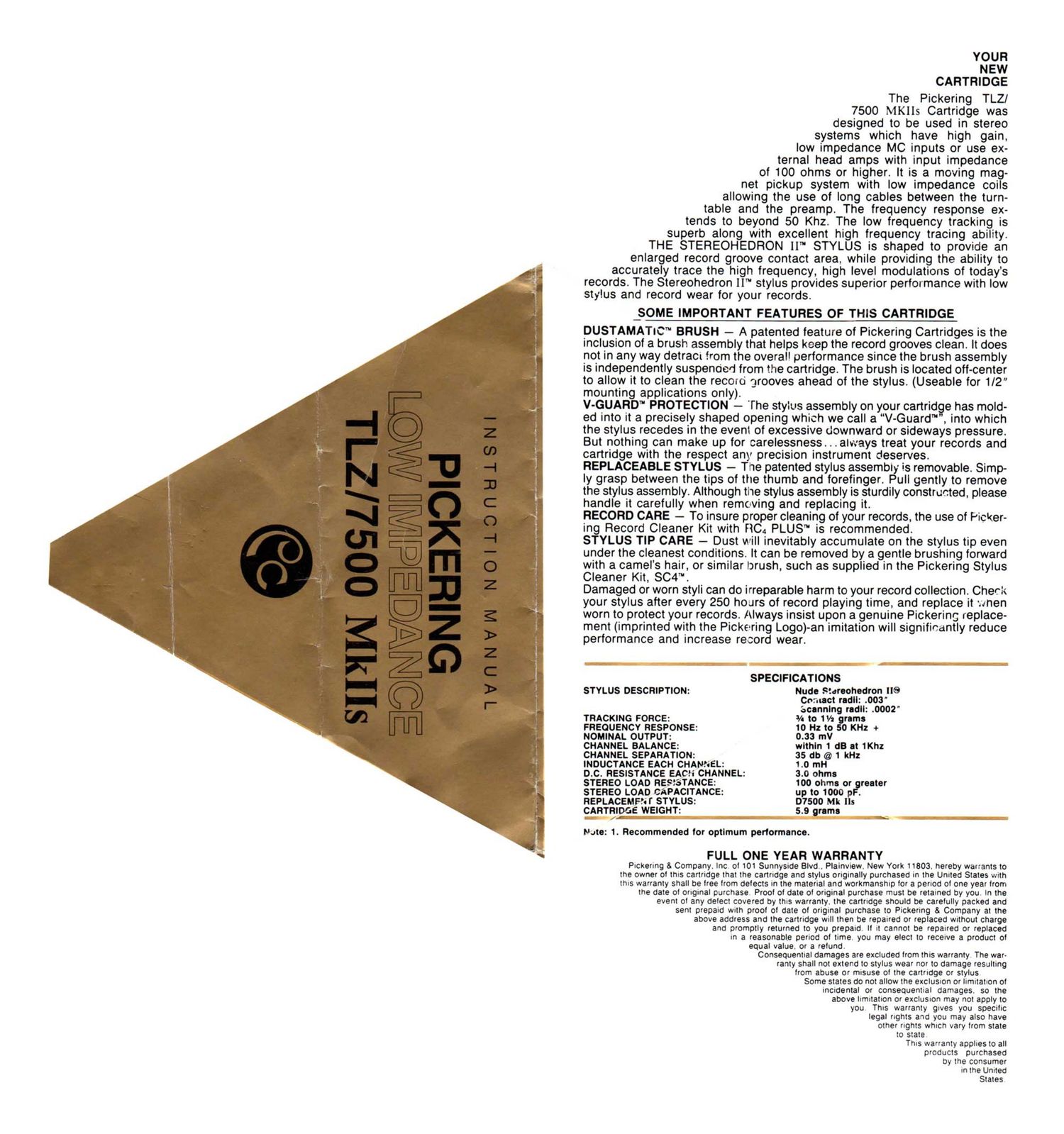

Page 1

YOUR
NEW
CARTRIDGE

The Pickering TLZ/

7500 MKiis Cartridge was

designed to be used in stereo

systems which have high gain,

low impedance MC inputs or use ex-

ternal head amps with input impedance

of 100 ohms or higher. It is a moving mag-

net pickup system with Iow impedance coils

allowing the use of long cables between the turn-

table and the preamp. The frequency response ex-

tends to beyond 50 Khz. The low frequency tracking is

superb along with excellent high frequency tracing ability.

THE STEREOHEDRON 11" STYLUS is shaped to provide an

enlarged record groove contact area, while providing the ability to

accurately trace the high frequency, high level modulations of todays

records. The Stereohedron 11" stylus provides superior performance with low
stylus and record wear for your records.

_SOME IMPORTANT FEATURES OF THIS CARTRIDGE

DUSTAMATIC" BRUSH - A patented feature of Pickering Cartridges is the
inclusion of a brush assembly that helps keep the record grooves clean. it does
not in any way detract from the overall performance since the brush assembly
is independently suspended from the cartridge. The brush is located off-center
to allow it to clean the record grooves ahead of the stylus. (Useable for 1/2
mounting applications only).

V-GiUARDm PROTECTION - The stylus assembly on your cartridge has mold-
ed into it a precisely shaped opening which we call a V-Guard" , into which
the stylus recedes in the event of excessive downward or sideways pressure.
But nothing can make up for carelessness. always treat your records and
cartridge with the respect any precision instrument deserves.
REPLACEABLE STYLUS - The patented stylus assembly is removable. Simp-
ly grasp between the tips of the thumb and forefinger. Pull gently to remove
the stylus assembly. Although the stylus assembly is sturdily constructed, please
handle it carefully when removing and replacing it.

RECORD CARE - To insure proper cleaning of your records, the use of Picker-
ing Record Cleaner Kit with RC4 PLUS is recommended.

STYLUS TIP CARE - Dust will inevitably accumulate on the stylus tip even
under the cleanest conditions. it can be removed by a gentle brushing forward
with a camels hair, or similar brush, such as supplied in the Pickering Stylus
Cleaner Kit, 804'".

Damaged or worn styli can do irreparable harm to your record collection. Check
your stylus after every 250 hours of record playing time, and replace it when
worn to protect your records. Always insist upon a genuine Pickering replace-
ment (imprinted with the Pickering Logo)-an imitation will significantly reduce
performance and increase record wear.

SPECIFICATIONS

STYLUS DESCRIPTION: Nude Stereohedron "8
Contact radii: .003
Scanning radii: .0002"

TRACKING FORCE: Va to 1V: rams
FREQUENCY RESPONSE: 10 Hz to 0 NH: 4-
NOMINAL OUTPUT: 0.33 mV

CHANNEL BALANCE: within 1 dB at "(M
CHANNEL SEPARATION: 35 db @ 1 kHz
INDUCTANCE EACH CHANNEL: 1.0 mt

D.C. RESISTANCE EACfi CHANNEL: 3.0 ohms

STEREO LOAD REStSTANCE: 100 ohms or Fgreeter
STEREO LOAD CAPACITANCE: up to 1000 .
REPLACEMENT STYLUS: 07500 Mk I s
CARTRIDGE WEIGHT: 5.9 grams

Note: 1. Recommended for optimum performance.

FULL ONE YEAR WARRANTY

Pickering 8. Company. Inc. of 101 Sunnyside Blvd. Plainview. New York 11803. hereby warrants to
the owner of this cartridge that the cartridge and stylus originally purchased in the United States with
this warranty shall be free from defects in the material and workmanship for a period of one year from

the date of original purchase. Proof of date of original purchase must be retained by you. to the
event of any defect covered by this warranty. the cartridge should be carefully packed and
sent prepaid with proof of date of original purchase to Pickering 8. Company at the
above address and the cartridge will then be repaired or replaced without charge
and promptly returned to you prepaid. if it cannot be repaired or replaced
in a reasonable period of time. you may elect to receive a product of
equal value. or a refund.
Consequential damages are excluded from this warranty. The war.
ranty shall not extend to stylus wear nor to damage resulting
from abuse or misuse of the cartridge or stylus
Some states do not allow the exclusion or limitation of
incidental or consequential damages. so the
ab0ve limitation or exclusion may not apply to
you This warranty gives you specific
legal rights and you may also have
other rights which vary from state
to state,
This warranty applies to all
products purchased
by the consumer
in the United
States

Page 2

Follow

these steps
to setup your
cartridge

STEREO CONNECTIONS

1. Your turntable arm or head has four
lead wires within the cartridge connector.
These have been properly connected at
the factory to mate with your new Picker-
ing Plug In Cartridge. (See Fig. 1)

R L
RihtS' al ' )..Lrt5i I
gifietIIIn 1" 'I' 0 9(WhIPe')

Right Gnd. w". - .""\ Lett Gnd.
(Green) h_-J (Blue)
Fig. 1

NOTE: a) Do not bend or damage car-
tridge pins before or during installation
procedure. Do not use solder on cartridge
pins.

b) Cartridge is internally ground-
ed thru the right channel ground pin.

0) ground turntable mechanism
with a separate wire to a suitable ground
point.

CARTRIDGE INSTALLATION
LINEAR TRACKING TONE ARM

1. Loosen the cartridge set screw located
in the tone arm and pull out. Remove ex-
isting cartridge if necessary.

2. Install your new Pickering Plug In Car-
tridge by aligning carefully the pins of the
cartridge with the tone arm connectors.
Press in gently until the cartridge is
seated completely into the tone arm.

3. Replace and tighten cartridge set
screw. (See turntable instructions.)

4. Remove stylus protective cover.

5. Insure tracking force is set correctly for
cartridge. (See turntable instructions.)
Records with extremely high recordeo
levels or high external vibration conditions
may require tracking force to be set to
maximum value.

NOTE: The Dustamaticm Brush should
not be used for P-Mount Tone Arm
applications.

This cartridge is designed to fit correctly
with any tone arm or turntable.

STYLUS PROTECTIVE COVER

Your cartridge is supplied with a protec-
tive cover over the stylus. To remove, pull
gently down on the two side ears. The
stylus cover can be replaced. when
desired, by placing
the front lip over
the stylus guard
and pressing
the ears

gently onto

the carriage
body.

SE EARS

CARTRIDGE INSTALLATION
OTHER APPLICATIONS

Pivoted Tone Arms:

1. Loosen cartridge set screw and pull
out. Remove existing cartridge if required.

2. Install your new Pickering Plug in Car-
tridge by aligning carefully the pins of the
cartridge with the tone arm connectors.
Press in gently until the cartridge is
seated completely into the tone arm.

3. Replace and tighten tone arm set
screw.
(See turntable instructions.)

4. Remove stylus protective cover.

5. Balance the tone arm according to
turntable instructions. At balance the
stylus tip should just clear the record.

6. Set correct stylus tracking force.

7. Set Anti-skate control to same number
as tracking force setting.

Your new P-Mount" cartridge
is supplied with a convenient
adaptor to allow it to be mount-
ed into tone arms and head-
shells using conventional 1/2"
mounting centers. Follow these

I simple mounting instructions:

1) Remove stylus from cartridge body
and set aside carefully.

2) Remove cartridge set screw and nut
located in) hardware package.

3)lnstall caFtird e body into black
plasWting adaptor

and s a re with car-

tridge set.screw and
nut. Be surecar-
tridge body\~.is

; 0 located into
bracket

properly.

d Fig. 2

4) Install cartridge and
mounting bracket assem-
bly into tone arm or headshell
using 2 screws and 2 plastic
washers provided. (See Fig. 2) Some
special applications may require
special hardware as provided with
your tone arm or headshell. Follow
manufacturers instructions.

5) Connect tone arm or headshell leads
to terminals. Follow lead color iden:
tification on terminals.

6) Install stylus assembly into cartridge
body.

7) install headshell into tone arm (if
required).

8) Balance tone arm per manufacturer's
instructions.

9) Set correct stylus tracking force as
directed in the cartridge instructions.

10) Set antiskate force to same value as
tracking force setting.

® PICKERING

for those who can the difference"
PICKEFIING 8: COMPANY. INC.

Sunnyside Boulevard
Platnview. New York 11803 TLZ Series

PATENTS 7502-9361-01

The TLZ cartridge is covered by the following

US. Patents: 3.297.831: 3.572.725: 6
3.846.592; 3.871.664; as well as cor- \oxe
responding patents or pending ap- ?
plications in the leading industrial 9i»

nations thoughout the world. .00'
Only PICKERING AND 69
COMPANY. INC. manu- W6
factures the genuine

V-Guard" stylus

assemblies used

in the TLZ

cartridge.
