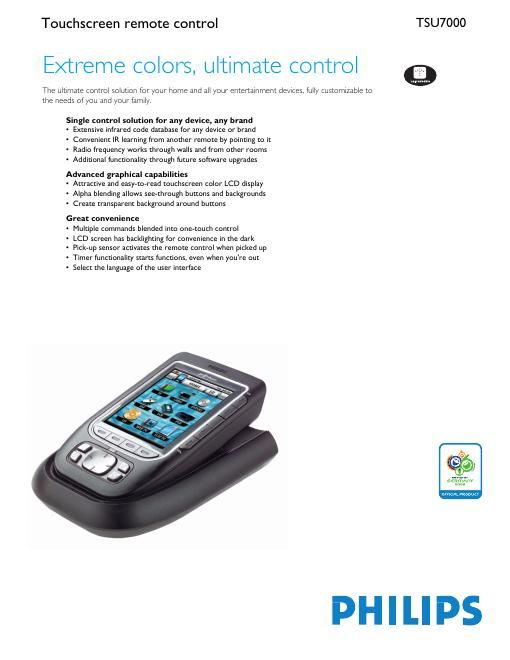

Philips tsu 7000 brochure

Page 1

TSU7000/37 Touchscreen remote control Product highlights Universal IR code database A universal IR code database refers to a library of infrared codes built-in to a particular remote. This feature allows a remote to control your equipment without needing to learn individual signals. Select the correct infrared code sets in the database for the devices you want to control, to enable control of virtually every audio/video system element on the market today – regardless of model or brand. Learning functionality Learning functionality refers to the process through which a remote control captures and stores infrared signals from other remotes for later use. When device codes are not included in the on-board database, they can always be learned from the original remote, simply by pointing to it. One-touch convenience One-touch convenience allows you to perform multiple commands with one press of a button via a macro. A macro combines a string of pre-programmed commands under one single button. Therefore, it simply takes one button press to execute a series of functions. Alpha blending Alpha blending is used to create the effect of transparency. It does this by combining a translucent foreground with a background colour to create an in- between blend. Radio frequency A radio technology that allows you to control components not in direct line-of-sight, such as through walls or other obstacles. There are two types of RF used in remote controls: RF to component, and RF to infrared. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. © 2005 Koninklijke Philips Electronics N.V. All Rights reserved. www.philips.com Date of issue 2005-05-11 Version: 1.0 12 NC: 3104 207 14301 UPC: 0 37849 94272 7 Technical specifications Picture/Display - Backlight -Backlight color: Blue -Diagonal screen size (inch): 3.8 in -Display colors: 65,536 -Resolution: 320 x 240 pixels -Touch panel Connectivity-USB: USB 1.1 Convenience- Automatic power off - Clock with calendar - Cradle/ docking station - Cursor key - Gentle fade out of light - Hard buttons -Multi language: GB, D, F, E, NL - Pick up sensor -Programmable timers: 20 Accessories-Batteries: Ni-MH battery pack -Docking Station -Printed User Guide -USB cable -User Guide on CD-ROM - Warranty Card System Requirements-CD-ROM drive -Hard disk space: 75 MB -PC OS: Windows 98 SE, 2000, ME, XP -RAM memory: 64 MB -USB: Free USB port Dimensions-Master carton quantity: 1-Product dimension (WxDxH) inch: 3.6" x 1.1" x 6.0" -Product weight in lbs: 0.551 -Temperature Range (Operation): + 4 1 d e g r e e F t o +113 degree F Power-Charging time: Max 3 hrs hr -Mains power: 120V (+/-10/-15%)/60Hz Customisation-Editor application on PC: ProntoProEdit NG - On screen customisation - Full screen configurability - Transparency - Alpha-blending -Macros: Up to 250 steps System Specifications-CPU: Mitsubishi 32 bit -CPU speed: 20 Mhz -Flash memory size: 32 MB Infrared Capabilities-Operating distance: 33 ft (10 m) - Learning IR codes -Learning frequency range: Up to 78 kHz and 455 kHz -Transmitting LEDs: 4 - Universal IR code database -Number of brands in database: Over 1100 RF Capabilities-Adresses (ID's): 16 -Channels: 4 -Communication: 1-way -Frequency (MHz): 418
