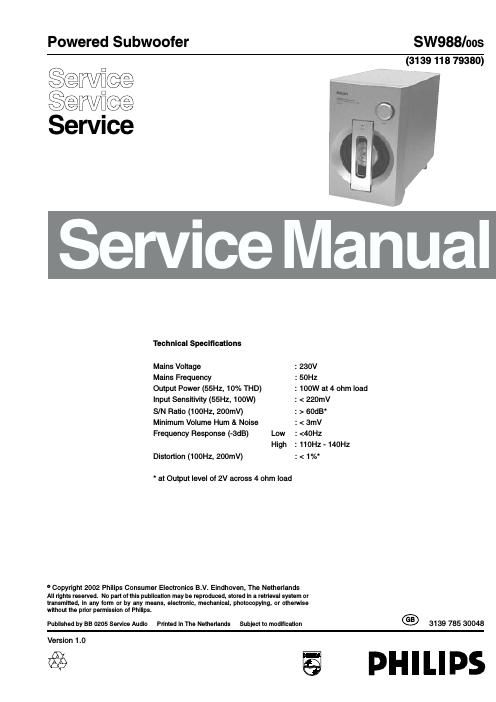

Philips sw 988 service manual
This is the 8 pages manual for philips sw 988 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sw 988 service manual (Ocr-read)
Page 1
2 1. Place the Subwoofer Box as shown in the Picture 4 and Picture 5 and use a screw driver (minus type) to force open the front assembly. Caution: Do not break the bundle of wires to the front. 2. Unscrew 4 screws D (see Picture 6) to remove the Woox Speaker (pos. 4). 1. Place the Subwoofer Box upside down and remove the 4 Rubber Foot A (see Picture 1). Then unscrew 4 screws B (see Picture 2) to loosen the Grille Base (pos. 19). Picture 5Picture 4 DISMANTLING INSTRUCTIONS Dismantling the Grille Base & Speaker Driver 2. Unscrew 4 screws C (see Picture 3) to remove the Speaker Driver (pos. 17). Picture 3 Picture 2 Picture 1 Dismantling the Front Assembly Picture 6
Page 2
3 Service Position 1. Unscrew 10 screws E (see Picture 7) to pull out the pc board assembly. Caution: Do not break the bundle of wires to the front. Picture 7 DISMANTLING INSTRUCTIONS Dismantling the Rear Assembly
