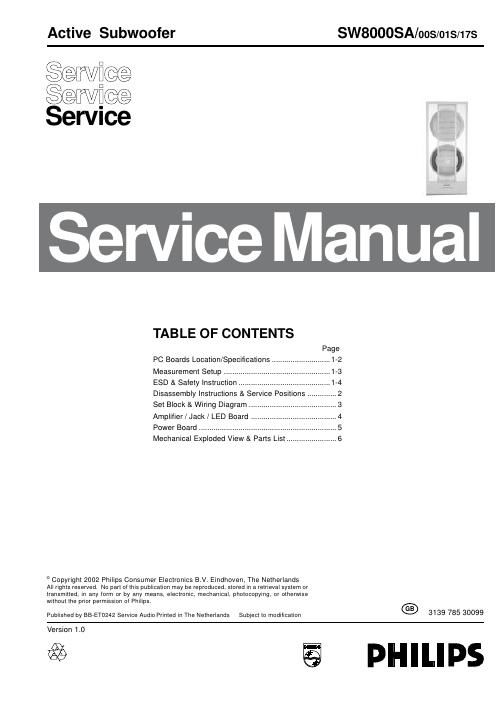

Philips sw 8000 sa actsub
This is the 18 pages manual for philips sw 8000 sa actsub.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sw 8000 sa actsub (Ocr-read)
Page 1
1-2 PC BOARDS LOCATION SPECIFICATIONS SUBWOOFER Subwoofer (not magnetically shielded design).......................................................................................................6.5" Output Power.......................................................................................................................................100W (4Ω,DIN) THD (Total Harmonic Distortion) ............................................................................................................10% at 55 Hz Reproduction Frequency Response.......................................................................................................30 Hz-130 Hz Phase Switch....................................................................................................................................................0 0,180 0 Input Sensitivity (Subwoofer In).................................................................................................................200 mVrms AC Power (SW8000SA/01S)......................................................................................................115/230V-60Hz/50Hz AC Power (SW8000SA/17S)......................................................................................................................120V 60Hz AC Power (SW8000SA/00S)......................................................................................................................230V 50Hz Power Consumption...........................................................................................................66 W (at 1/8 Rated Power) Dimensions (w x h x d)....................................................................................................195 mm x 460mm x 262mm Weight................................................................................................................................................................6.8 Kg Jack PCB Amplifier PCB Power PCB Jack PCB Amplifier PCB Power PCB For /00S and /17S onlyFor /01S only
Page 2
MEASUREMENT SETUP Audio Test Signal U M5ms 2v C 100Hz DUT LOAD 4 OHM SCOPELEVEL DISTORTION METER Audio Generator IN JK301OUT CN501 1-3
