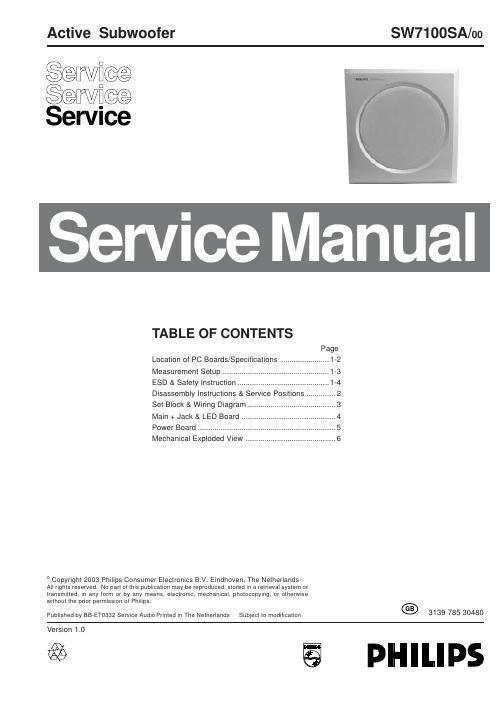

Philips sw 7100 sa service manual
This is the 17 pages manual for philips sw 7100 sa service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sw 7100 sa service manual (Ocr-read)
Page 1
1-2 LOCATION OF PC BOARDS SPECIFICATIONS SUBWOOFER Subwoofer (not magnetically shielded design).......................................................................................................6.5" Output Power......................................................................................................................55Hz 10% 100W (4Ω,DIN) THD (Total Harmonic Distortion) ...........................................................................................................100Hz 2V 1% Reproduction Frequency Response.......................................................................................................30 Hz-130 Hz Phase Switch....................................................................................................................................................0 0,180 0 Input Sensitivity (Subwoofer In)....................................................................................................................80 mVrms AC Power...................................................................................................................................................230V/50 Hz power Consumption.........................................................................................................165 W (at 1/8 Rated Power) Dimensions (w x h x d)................................................................................................222 mm x 358.5 mm x 230 mm Weight................................................................................................................................................................8.7 Kg
