Philips sw 7000 actsub
This is the 19 pages manual for philips sw 7000 actsub.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sw 7000 actsub (Ocr-read)
Page 1

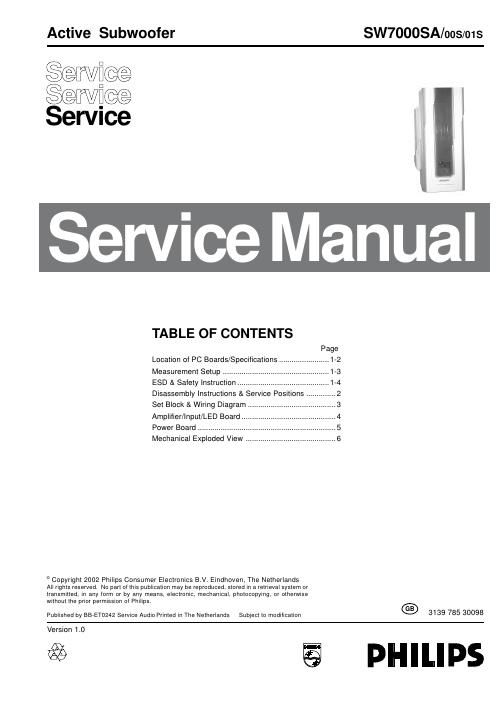

1-2 LOCATION OF PC BOARDS AMPLIFIER BOARD INPUT BOARD POWER BOARD LED BOARD SPECIFICATIONS SUBWOOFER Subwoofer (not magnetically shielded design).......................................................................................................6.5" Output Power.........................................................................................................................................50W (4Ω,DIN) THD (Total Harmonic Distortion) ...................................................................................10% at 80 Hz (output power) Reproduction Frequency Response.......................................................................................................30 Hz-160 Hz Phase Switch....................................................................................................................................................0 0,180 0 Input Sensitivity (Subwoofer In).................................................................................................................80 mVrms AC Power.........................................................................................................................................230V/50 Hz(/00S) AC Power........................................................................................................................115V/230V,50Hz/60Hz(/01S) power Consumption...........................................................................................................53 W (at 1/8 Rated Power) Dimensions (w x h x d)...................................................................................................130 mm x 337 mm x 375 mm Weight...................................................................................................................................................................7 Kg
Page 2
1-3 MEASUREMENT SETUP Audio Test Signal 100Hz D UM5ms 2v CN501 GeneratorAudio IN JK301 DUT LOAD 4 OHM LEVEL METER SCOPE DISTORTION OUT
