Philips sw 3600 actsub

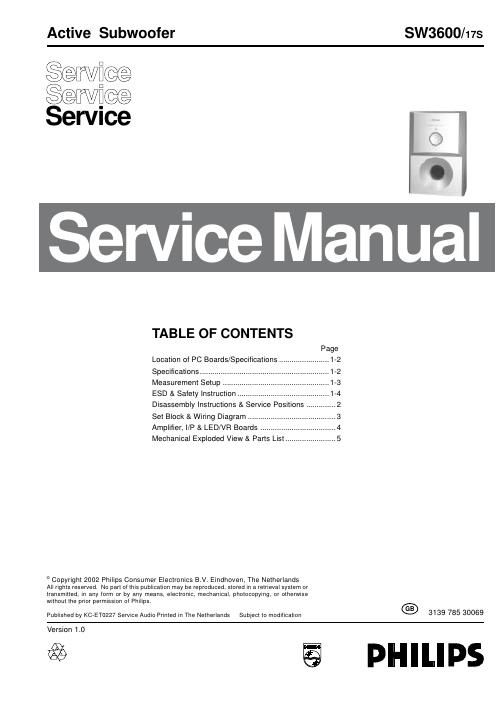

This is the 14 pages manual for philips sw 3600 actsub.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sw 3600 actsub (Ocr-read)
Page 1
1-2 LOCATION OF PC BOARDS SPECIFICATIONS SUBWOOFER Subwoofer (not magnetically shielded design).......................................................................................................6.5" Output Power.........................................................................................................................................50W (4Ω,DIN) THD (Total Harmonic Distortion) ...........................................................................................................10% at 55 Hz Reproduction Frequency Response.......................................................................................................40 Hz-150 Hz Phase Switch....................................................................................................................................................0 0,180 0 Input Sensitivity (Subwoofer In).................................................................................................................500 mVrms AC Power ...............................................................................................................................................120V / 60 Hz power Consumption...........................................................................................................32 W (at 1/8 Rated Power) Dimensions (w x h x d)....................................................................................................200 mm x 310mm x 350 mm Weight................................................................................................................................................................6.8 Kg Amplifier PCB
Page 2
1-3 MEASUREMENT SETUP
