Philips sw 200 2000 service manual
This is the 18 pages manual for philips sw 200 2000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sw 200 2000 service manual (Ocr-read)
Page 1

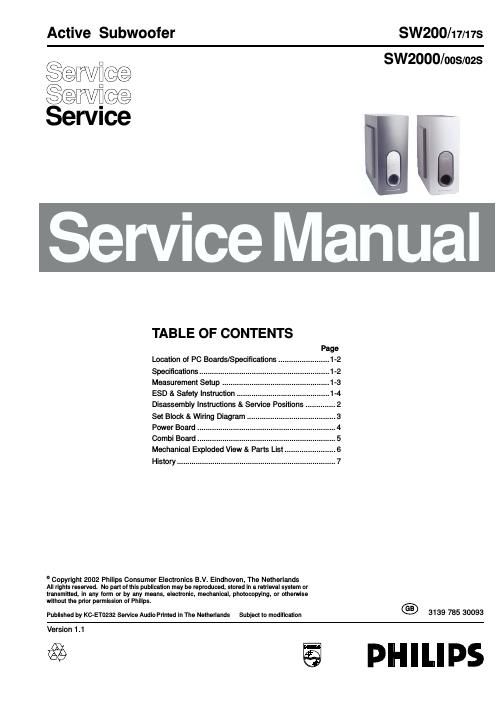

1-2 LOCATION OF PC BOARDS SPECIFICATIONS SUBWOOFER Subwoofer (not magnetically shielded design).......................................................................................................6.5" Output Power.........................................................................................................................................75W (4Ω,DIN) THD (Total Harmonic Distortion) ...................................................................................10% at 80 Hz (output power) Reproduction Frequency Response.......................................................................................................30 Hz-180 Hz Phase Switch....................................................................................................................................................0 0,180 0 Input Sensitivity (Subwoofer In)..................................................................................................................200 mVrms AC Power (for SW200/17/17S) ..............................................................................................................120V / 60Hz AC Power (for SW2000/00S/02S/15S)..............................................................................................220-240V / 50Hz Power Consumption...........................................................................................................53 W (at 1/8 Rated Power) Dimensions (w x h x d)...................................................................................................135 mm x 337 mm x 375 mm Weight................................................................................................................................................................7.8 Kg LED BOARD POWER BOARDI/P BOARD MAIN BOARD
Page 2
1-3 MEASUREMENT SETUP
