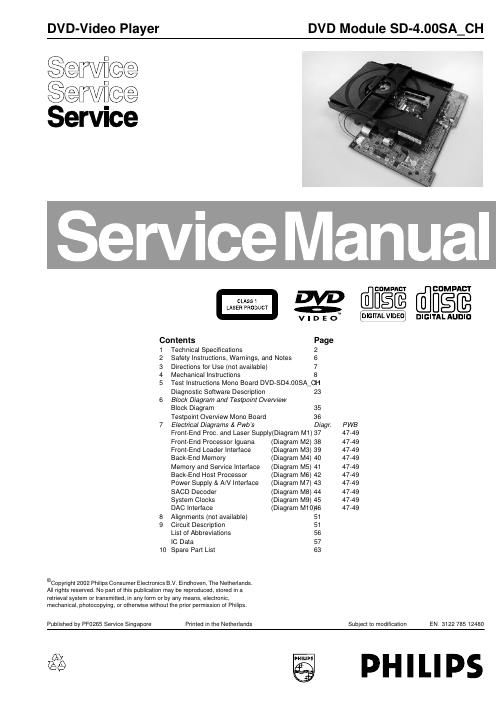

philips sd 4 00 sach service manual

Extracted text from philips sd 4 00 sach service manual (Ocr-read)

Page 1

Technical Specifications EN 2 SD-4.00SA_CH 1. 1. Technical Specifications 1.1 Interfaces and Pin Assignments SD4 00_SA CH supports both configurations of single-disc and 5-disc changer SACD player. In table 1-1, interfaces or connectors stuffing options are given for applications of single-disc and 5-disc changer. Table 1-1 Interfaces or connectors stuffing options The interfaces or connectors are placed on both PCB layers of top and bottom as shown in figure 1-1 and figure 1-2 respectively.Figure 1-1 Interfaces placement on PCB top layer Connector 1705 is an option for the usage of SACD1000 set only for connecting monoboard to front panel board. Connector 1701 is also an option for the monoboard power supply 12V/ 5V/3V3 in case of the requirements needed for further improvement on audio performance of SACD. Connector 1014 is for either DCU (Diagnostic Controller Unit) or BST (Boundary Scan Test) used by industrial only. Figure 1-2 Interfaces placement on PCB bottom layer 1.2 Connections 1.2.1 Interface AV_4.0 at Location 1703: 1. I 2C_SCL/SIODATA I 2C SCL 2. I 2C_SDA/SIOCLK I 2C SDA 3. SCART1 low blanking 1 (0/6/12V) 4. SCART0 low blanking 0 (0/6/12V) 5. B_REF GND 6. B_U B_output 7. G_REF GND 8. G_Y G_output 9. R_REF GND 10. R_V R_output 11. Y_REF GND 12. Y Y_output 13. C_REF GND 14. C C_output 15. CVBS-REF GND 16. CVBS CVBS output 17. +3V3 Power supply +3V3 18. +3V3 Power supply +3V3 19. +5V Power supply +5V 20. +12V Power supply +12V 21. +12V Power supply +12V 22. MUTE Analogue output Mute 23. GND GND 24. PCMSCLK PCM Bit clock 25. PCMDATA0 PCM data 0 26. GND GND 27. PCMCLK PCM Clock 28. PCMLRCLK PCM Word clock 29. GND GND 30. SPDIF SPDIF outpu 1.2.2 Optional Interface AV_1000 at Location 1012: 1. GND GND 2. 384FS DAC mastering clock 16.9344MHz 3. GND GND 4. SEL_PCM/ DSD_LFE LFE channel (Ch-3) 5. GND GND 6. DATA_CeLf/ DSD_CENTRE Front Centre channel (Ch-2) 7. GND GND 8. SEL_PCM/DSD_Rs Right surround (Ch-5) 9. GND GND 10. DATA_LsRs/DSD_Ls Left surround (Ch-4) 11. GND GND 12. SEL_PCM/DSD_RIGHT Front Right Channel (Ch-1) 13. GND GND 14. DATA_LeRi/DSD_LEFT Front Left Channel (Ch-0) 15. GND GND 16. WORK_CLK/SEL_DSD DSD stereo 17. GND GND 18. BIT_CLK/DSD_CLK DSD clock 19. GND GND 20. 256FS Audio Clock FS=32KHz, 44.1KHz, 48KHz and 96KHz 21. GND GND 22. SCL-DAC I 2C SCL for DAC 23. SDA-DAC I2C SDA for DAC Disc Type 1100 1300 1301 1302 1500 1701 1702 1703 1704 1900 1012 1013 Single-disc √ √ √ √ √ √√√ √ 5-disc √ √ √ √√√√√√ √ Karaoke 1702 1 24 18 Tray Motor 1302 14 AV_4.0 1703 1 30 AV_1000 1012 AV_SACHI 1013 1 30 1 24 SERVICE 1500 17 Sledge PCS 1301 Spindle Motor 1300 Motor Driver Bd 1900 1 11 18 111 FRONT MONOBOARD TOP VIEW OPU Connector 1100 1701 1705 1 51 7 1014 1 19 2 20 CL 26532053_041.eps 130502 Digital YUV 1704 12 4 FRONT MONOBOARD BOTTOM VIEW CL 26532053_042.eps 130502

Page 2

Technical Specifications EN 3 SD-4.00SA_CH 1. 24. GNDGND 1.2.3 Optional Power Supply Connector at Location 1701: 1. +3V3 Power supply +3V3 2. +3V3 Power supply +3V3 3. +5V Power supply +5V 4. GND Ground 5. GND Ground 6. MGND Power ground 7. +12V Power supply +12 1.2.4 Optional Connector of Sacd1000 Set (From Monoboard to Front Panel) at Location 1705: 1. SCL I 2C SCL 2. GND Ground 3. SDA I 2C SDA 4. STB_CONT Standby Control 5. P50 Project P5 1.2.5 Interface AV_SACHI at Location 1013: 1. GND GND 2. 384FS DAC mastering clock 16.9344MHz 3. GND GND 4. SEL_PCM/DSD_LFE LFE channel (Ch-3) 5. GND GND 6. DATA_CeLf/DSD_CENTRE Front Centre channel (Ch-2) 7. GND GND 8. SEL_PCM/DSD_Rs Right surround (Ch-5) 9. GND GND 10. DATA_LsRs/DSD_Ls Left surround (Ch-4) 11. GND GND 12. SEL_PCM/DSD_RIGHT Front Right Channel (Ch-1) 13. GND GND 14. DATA_LeRi/DSD_LEFT Front Left Channel (Ch-0) 15. GND GND 16. WORK_CLK/SEL_DSD DSD stereo 17. GND GND 18. BIT_CLK/DSD_CLK DSD clock 19. GND GND 20. 256FS Audio Clock FS=32KHz, 44.1KHz, 48KHz and 96KHz 21. GND GND 22. SCL-DAC I2C SCL for DAC 23. SDA-DAC I2C SDA for DAC 24. GND GND 25. PCMDATA3/DSD_PCM8 Option 1:PCMDATA3 Option 2: DSD_Ch7 26. GND GND 27. P50 P50 (I2C Slave Data Available Interrupt) 28. GPIO2 General I/O port 2 Option 1 : Supporting 3 control line type DAC, DAC_CLK 29. GPIO3 General I/O port 3 Option 1: Supporting 3 control line type DAC, DAC_DATA 30. GPIO1 General I/O port Option 1: Supporting 3 control line type DAC, DAC_C 1.2.6 Karaoke Interface at Location 1702: 1. KOKSCLK Karaoke PCM bit clock (I2S format) 2. +12V Power Supply +12V 3. KOKLRCLK Karaoke PCM left-right / word clock (I2S format) 4. GND Ground 5. KOKDATA Karaoke PCM data (I2S format) 6. GND Ground 7. KOKPCMCLK Karaoke PCM system clock (I2S format) 8. KOKVOCDET Karaoke vocal detect signal 1.2.7 Digital YUV Interface at Location 1704: 1. GND Ground 2. SDA I2C SDA 3. SCL I2C SCL 4. Odd/Even 5. HSYNC Horizontal Sync 6. GND Ground 7. 27MHz Clock 27MHz Clock 8. GND Ground 9. YC0 Digital video bit 0 10. GND Ground 11. YC1 Digital video bit 1 12. GND Ground 13. YC2 Digital video bit 2 14. GND Ground 15. YC3 Digital video bit 3 16. +5V Power Supply +5V 17. YC4 Digital video bit 4 18. +3V3 Power Supply +3V3 19. YC5 Digital video bit 5 20. +3V3 Power Supply +3V3 21. YC6 Digital video bit 6 22. GND Ground 23. YC7 Digital video bit 7 24. GND Ground 1.2.8 Service connector at Location 1500: 1. TXD_SER TXD service UART 2. SERVICE Service or normal mode select 3. RXD_SER RXD service UART 4. RTS_SER Not used (RTS service UART) 5. GND Ground 6. CTS_SER Not used (CTS service UART) 7. +5V_SER Positive 5V (isolated from internal +5V by ferrite bead 1.2.9 To Motor Driver Board Interface at Location 1900: 1. TBL-POS Carousel Rotation Position Detection 2. I2CSCL I2C Clock 3. I2CSDA I2C Data 4. GND Ground 5. Clockwise_CM Carousel Clockwise Rotation Control 6. Counterclockwise_CM Carousel Counterclockwise Rotation Control 7. +5V +5V Power Supply 8. GND Ground 9. +12V +12V Power Supply 10. +12V +12V Power Supply 11. GND Ground 1.3 Signal Specifications This the specification of all signals as described under Connections H = +5V ±0.5V h = 3V3 ±0.3V L = 0V ±0.5V l = 0V ±0.3V
