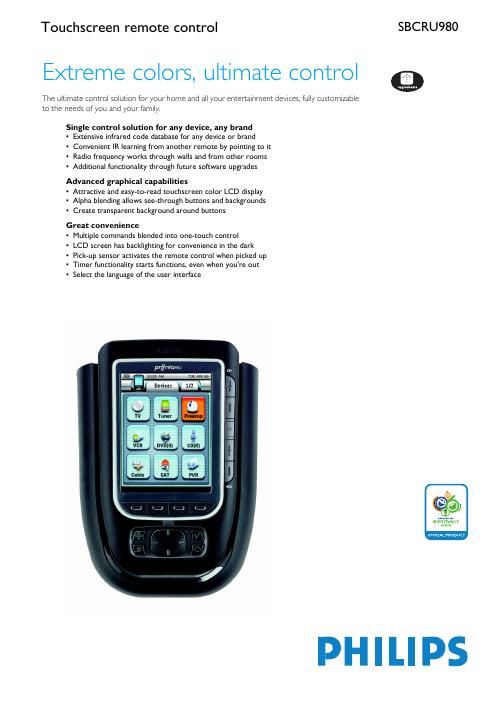

Philips sbcru 980 brochure

Page 1

Touchscreen remote control SBCRU980/00 Product highlights Universal IR code database A universal IR code database refers to a library of infrared codes built-in to a particular remote. This feature allows a remote to control your equipment without needing to learn individual signals. Select the correct infrared code sets in the database for the devices you want to control, to enable control of virtually every audio/video system element on the market today – regardless of model or brand. Learning functionality Learning functionality refers to the process through which a remote control captures and stores infrared signals from other remotes for later use. When device codes are not included in the on-board database, they can always be learned from the original remote, simply by pointing to it. One-touch convenience One-touch convenience allows you to perform multiple commands with one press of a button via a macro. A macro combines a string of pre-programmed commands under one single button. Therefore, it simply takes one button press to execute a series of functions. Alpha blending Alpha blending is used to create the effect of transparency. It does this by combining a translucent foreground with a background colour to create an in- between blend. Radio frequency A radio technology that allows you to control components not in direct line-of-sight, such as through w a l l s o r o t h e r o b s t a c l e s . T h e r e a r e t w o t y p e s o f R F u s e d i n r e m o t e c o n t r o l s : R F t o c o m p o n e n t , a n d R F t o i n f r a r e d . Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. © 2005 Koninklijke Philips Electronics N.V. All Rights reserved. www.philips.com Date of issue 2005-05-11 Version: 4.0 12 NC: 9082 100 02432 EAN: 87 10895 79512 8 Technical specifications Picture/Display - Backlight -Backlight color: Blue -Diagonal screen size (inch): 3.8 in -Display colors: 65,536 -Resolution: 320 x 240 pixels -Touch panel Infrared Capabilities-Operating distance: 33 ft (10 m) - Learning IR codes -Learning frequency range: U p t o 7 8 k H z a n d 4 5 5 kHz -Transmitting LEDs: 4 - Universal IR code database -Number of brands in database: Over 1100 RF Capabilities-Adresses (ID's): 16 -Channels: 4 -Communication: 1-way -Frequency (MHz): 433 Customisation-Editor application on PC: ProntoProEdit NG - On screen customisation - Full screen configurability - Transparency - Alpha-blending -Macros: Up to 250 steps Convenience- Automatic power off - Clock with calendar - Cradle/ docking station - Cursor key - Gentle fade out of light - Hard buttons- Pick up sensor -Multi language: GB, D, F, E, NL -Programmable timers: 20 Connectivity-USB: USB 1.1 Power-Mains power: 230V (+/-10/-15%)/50Hz -Charging time: Max 3 hrs hr Dimensions-Master carton quantity: 1 -Product dimensions (W x H x D): 92 x 153 x 27 mm -Product weight: 0.250 kg -Temperature Range (Operation): +5°C/+45°C System Specifications-CPU: Mitsubishi 32 bit -CPU speed: 20 Mhz -Flash memory size: 32 MB System Requirements-CD-ROM drive -Hard disk space: 75 MB -PC OS: Windows 98 SE, 2000, ME, XP -RAM memory: 64 MB -USB: Free USB port Accessories-Printed User Guide -Batteries: Ni-MH battery pack -Docking Station -USB cable -User Guide on CD-ROM - Warranty Card
