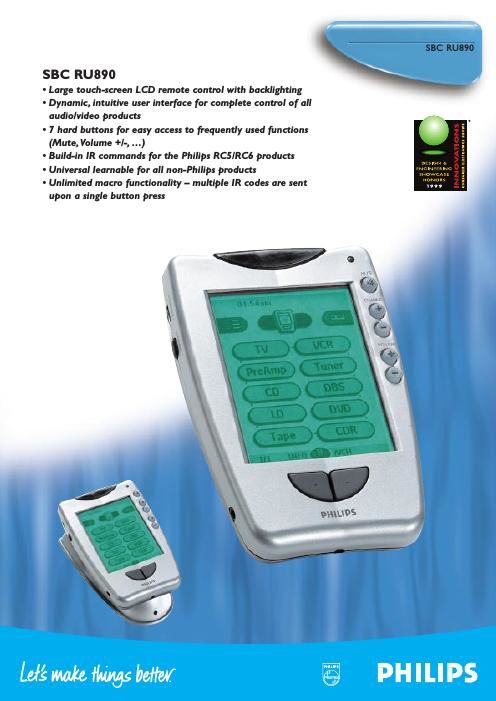

Philips sbcru 890 brochure

Page 1

© Philips Consumer Electronics N.V. Data subject to change without notice Business Accessories SBC RU890 Standard product information Mechanical¥ Case ABS ¥ Keys yes ¥ Text/Symbol indication - printing on the housing - wide range of colours available ¥ IRED protective lens yes ¥ Max. number of keys 7 hard keys ¥ LCD high resolution (320 mm x 240 mm) liquid crystal display with contrast control ¥ LCD colour green, 4 grey levels ¥ Serial port 3 Ð wire (RC232) serial port for future expandability ¥ Weight - ca. 177 g (excl. batteries) - ca. 250 g (incl. batteries) ¥ Standard packing - foam bag with retail package in carton box - minimum quantities: 5 pcs/box Electrical¥ Transmission/Coding system Philips RC 5 (enlarged), RC 6 ¥ IRED 2 ¥ Wavelength 950 nm ¥ EL backlight output 1.3 Cd/m2 ¥ Operating voltage range 4.2 Ð 7V ¥ Standby current 100 mA ¥ Transmitting power 120 mW/sr typ. ¥ Operating distance 10 m typ. With a receiver sensitivity >0.5 mW/ m2 ¥ Learning frequency up to 56 kHz (no DC codes, no toggle lits, no EOT codes) ¥ Batteries 4 x types AA, 1.5 batteries or one 4.8V battery pack ¥ Battery life approx.6 months ¥ Approvals FCC, CE, UL Temperature range¥ Operating temperature + 5 to +45 ¡C ¥ Storage temperature -25 to +55 ¡C Drop test¥ The complete unit, incl. batteries, is dropped on a PVC covered stone floor from a height of 70 cm. Once on each side. After this test, the unit should perform without failures. Liquid test¥ 55 cc of coffee is poured over the top-side of the RC unit. After 5 sec the coffee is removed as good as possible and dried in an open space at 20 ¡C during 48h. After this test, the unit should perform without failures. Dimensions Key layout top part overview
