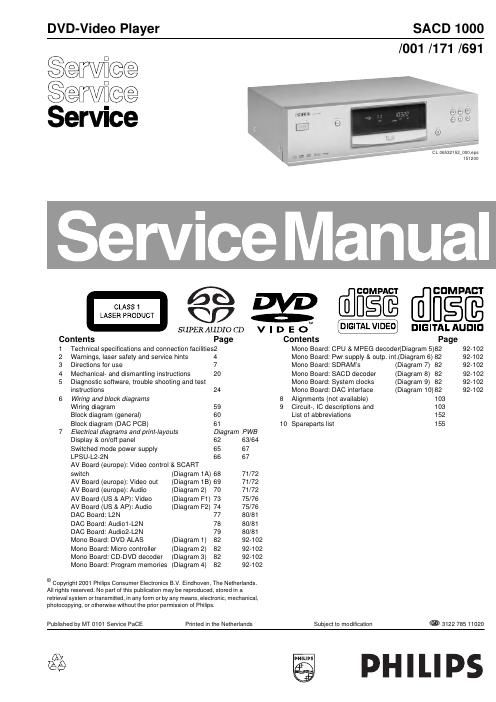

Philips sacd 1000 service manual 2
This is the 163 pages manual for philips sacd 1000 service manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips sacd 1000 service manual 2 (Ocr-read)
Page 1
Technical specifications & connection facilities GB 2 SACD 1000 1. 1. Technical specifications & connection facilities 1.1 General: Mains voltage: 120V (98 - 132V AC) for USA : 230V (198 -264V AC) for Europe/Asia : by means of voltage selector Mains frequency : 50 Hz - 60Hz Power consumption mains : < 36 W Power consumption standby : < 3 W (remote operatable) Power off : < 0.8W 1.2 Audio performance 1.2.1 Line output audio/video Output voltage 2 channel mode : 2Vrms ± 1.5dB Output voltage 5.1 channel Dolby : 1.41Vrms ± 1.5dB Channel unbalance (1kHz) : <0.85dB Crosstalk 1kHz : >105dB Crosstalk 20Hz-20kHz : > 95dB Frequency response 20Hz- 20kHz : ± 0.1dB max Signal to noise ratio : >100 dB Dynamic range 1kHz : >90dB Dynamic range 20Hz-20kHz : >88dB Distortion and noise 1kHz : >90dB Distortion and noise20Hz-20kHz : >80dB Intermodulation distortion : >87dB Phase non linearity :± 1 ° max. Level non linearity :± 0.5dB max. Mute (spin-up, pause, access) : >100dB Outband attenuation: : > 50dB above 25kHz 1.2.2 Line output 6 channel DSD mode stereo +5.1 multi channel (SACD) Output voltage (1 KHz) : 2Vrms +/- 0.3V Channel unbalance : <0.5dB Cut off frequency normal mode (- 3dB) : 40KHz +/- 5KHz Cut off frequency custom mode (- 3dB) : 50KHz +/- 5KHz Amplitude linearity (20Hz - 20KHz) : +0.1/-1dB max normal mode : +0.1/-0.6 dB max custom mode Phase linearity (20Hz - 20KHz) : tbd SNR dig. silence; normal mode 20KHz : -111 dB (Typical) : >108dB SNR dig. silence; normal mode A weighted : -114 dB (Typical) : >111dB SNR 1KHz, -160dB normal mode 500KHz : -50dB (Typical) : >40dB SNR 1KHz, -160dB custom mode 500KHz : >40dB (Typical) : >30dB THD 0dB 1KHz : 98dB (Typical custom mode) : 95 dB (Typical normal mode) THD 0dB 20Hz-20KHz : >96dB (custom mode) : >90 dB (normal mode) Dynamic range -60dB : 114dB (Typical) : >108 dB Intermodulation distorsion CCIF : 108dB (Typical) : >102dB Low level linearity (-60 to -90 dB) : <0.5dB Interchannel phase : <1° Crosstalk (20Hz-20KHz) : 100dB (Typical) : >90dB PCM mode up to 6 channels (DVD/ CDDA):Output voltage (1 KHz) : 2Vrms +/- 0.3V Channel unbalance : <0.5dB Amplitude linearity (20Hz - 20KHz) : +0.1/-0.6 dB max Phase linearity (20Hz - 20KHz) : tbd SNR dig. silence; normal mode 20KHz : >108dB SNR dig. silence; normal mode A weighted : >111dB THD 0dB (1KHz) : 95 dB typical THD 0dB (20Hz-20KHz) : >90dB Dynamic range -60dB : >108dB Intermodulation distorsion CCIF : 105dB (Typical) : >100dB Low level linearity (-60 to -90 dB) : <0.5 dB Interchannel phase : <1° Crosstalk (20Hz-20KHz) : 100dB (Typical) : >90dB 1.3 Video performance 1.3.1 CVBS CVBS output loaded with 75 Ohm Fully according PQR3 IMS 1.3.2 S-video (Y/C) Fully according PQR3 IMS Connector pinning 1 - GND 2 - GND 3 - Y 1Vpp ± 0.1V into 75 Ohm 4 - C burst 300mVpp +1/-4dB into 75 Ohm Aspect ratio switching by DC on C(pin4). Connector type : 4 pin mini- DIN 1.4 SCART Fully according PQR3 IMS Connector implementation according EN50049-1; color = black; dual SCART Fully according to prEN1057-2-1 Signal switching is P50 controlled; supported features of mode 3 see survey of applicable standards. 1.4.1 SCART II (connected to TV) Pin signals: 1 - Audio R 1.8V RMS 2 - Audio R 3 - Audio L 1.8V RMS 4 - Audio GND 5 - Blue/Chroma GND 6 - Audio L 7 - Blue out/Chroma in 0.7Vpp ± 0.1V into 75 Ohm (*)
Page 2
Technical specifications & connection facilities GB 3 SACD 1000 1. 8 - Function switch <2V = TV >4.5V / <7V = asp. ratio 16:9 DVD >9.5V / <12V = asp. ratio 4:3 DVD 9 - Green GND 10- P50 control 11- Green 0.7Vpp ± 0.1V into 75 Ohm (*) 12- Nc 13- Red/Chroma GND 14- fast switch GND 15- Red out/ Chroma out 0.7Vpp ± 0.1V into 75 Ohm (*) ± 3dB 0.3Vpp Chroma (burst) 16- fast switch RGB/ CVBS or Y <0.4V into 75 Ohm = CVBS >1V / <3V into 75 Ohm = RGB 17- Y/CVBS GND 18- fast switching GND 19- CVBS/Y/RGB sync 1Vpp ± 0.1V into 75 Ohm (*) 20- CVBS/Y 21- Shield 1.4.2 SCART I (connected to AUX) Pin signals: 1 - Audio R 1.8V RMS 2 - Audio R 3 - Audio L 1.8V RMS 4 - Audio GND 5 - Blue/Chroma GND 6 - Audio L 7 - Blue in/Chroma out ± 3dB 0.3Vpp Chroma (burst) 8 - Function switch 9 - Green GND 10- P50 control 11- Green 12- Nc 13- Red/Chroma GND 14- fast switch GND 15- Red in/Chroma in 16- fast switch RGB/ CVBS or Y 17- CVBS GND 18- fast switching GND 19- CVBS/Y/RGB sync 1Vpp ± 0.1V into 75 Ohm (*) 20- CVBS/Y 21- Shield (*) for 100% white 1.5 Digital output 1.5.1 Coaxial CDDA/ LPCM (incl MPEG1) : according IEC958 MPEG2, AC3 audio : according IEC1937 DTS : according IEC1937, amendment 1 Remark: DTS audio output mode is only available on digital out 1.5.2 Optical identical to coaxial 1.6 P50 SYSTEM CONTROL Via SCART pin nr 10 1.7 Dimensions and weight Place and height of feet : acc. to Philips Harmonisation line Apparatus tray closed : WxDxH :435 x 330 x 110 Apparatus tray open : WxDxH :435 x 470 x 110 Weight without packaging : ca. 9.5 Kg Weight in packaging : ca. 13 Kg 1.8 Laser output power & wavelength 1.8.1 SACD/DVD Output power : 7mW Wavelength : 650nm 1.8.2 CD Output power : 10mW Wavelength : 785nm
