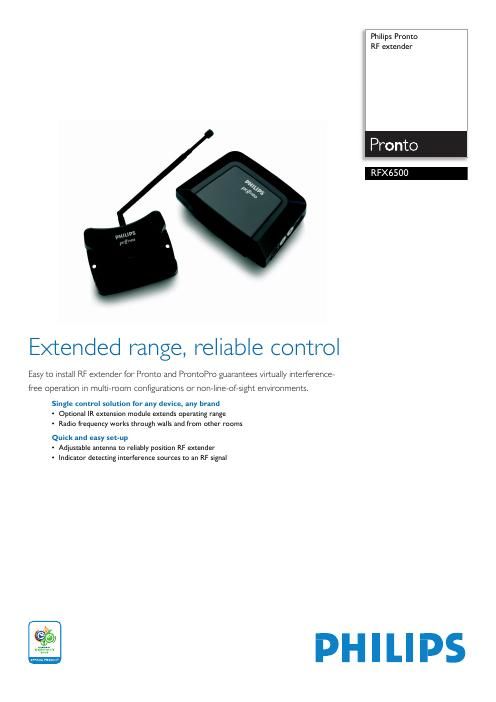

Philips rfx 6500 brochure

Page 1

For preview purpose only RFX6500/17 Technical specifications Product highlights RF extender Date of issue 2006-04-24 Version: 1.0 12 NC: 9082 100 80125 UPC: 0 37849 96655 6Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. © 2006 Koninklijke Philips Electronics N.V. All Rights reserved. www.philips.com Connectivity-IR emitter connectors: 4 -Connector: 2.5 mm Blaster- Receiver connector Infrared Capabilities-IR emitter connectors: 4 -Transmitting LEDs: 4 RF Capabilities-Adresses (ID's): 16 -Channels: 4 -Communication: 1-way -Frequency (MHz): 418 Convenience- Error indication Power-Mains power: 120V (+/-10/-15%)/60Hz Dimensions-Master carton quantity: 1 -Master carton weight: 0.84 kg -Product dimension (WxDxH) inch: 4.5" x 3.2" x 1.2" -Product weight in lbs: 0.132 -Temperature Range (Operation): 32 - 122 degree F Accessories-AC/DC Adaptor: 12V DC 400mA -Dual IR emitter wires: 4 -Printed User Guide - Adjustable antenna A separate adjustable antenna determines the most reliable position of an RF extender and therefore enables virtually interference-free operation of multi- room systems or devices in concealed environments. The antenna has a built-in interference indicator that blinks when detecting an other RF device or other interference source (e.g. microwave oven). The harder the indicator blinks, the less reliable the position of the antenna. RF interference indicator An interference indicator is a red blinking light that indicates the presence of interference sources in the home, that can interfere with the operation of an RF extender. The indicator is built into an antenna, and starts blinking as soon as the antenna picks up interference from RF devices, besides the RF extender, or other sources e.g microwave oven. The harder the light blinks, the less reliable the antenna is positioned, therefore, the less reliable the RF extender will work. IR extension module An infrared extension module allows you to control traditional infrared equipment over a radio frequency network. Radio frequency A radio technology that allows you to control components not in direct line-of-sight, such as through w a l l s o r o t h e r o b s t a c l e s . T h e r e a r e t w o t y p e s o f R F u s e d i n r e m o t e c o n t r o l s : R F t o c o m p o n e n t , a n d R F t o i n f r a r e d .
