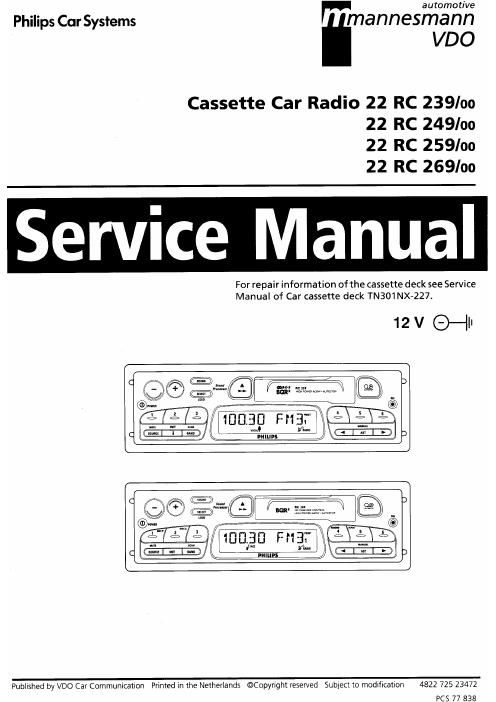

Page 1

F automotive
Philips Car Systems mannesmann
VDO

Cassette Car Radio 22 RC 239/00
22 RC 249/00
22 RC 259/00
22 RC 269/00

Service Manual

For repair information ofthe cassette deck see Service
Manual of Car cassette deck TN301NX-227.

12\I(}-ml

riflnan F§iins

" nu

93(an m
k; pumps

Published by VDO Car Communication Printed in the Netherlands ©Copyright reserved Subject to modification 4822 725 23472
PCS 77 838

Page 2

Technical Specifications

General

Power Supply 10.5 - 16V
Quiescent Current (at 12.6V) < 4.0mA
Fuse 10A
Radio

TUNING RANGE IN DIFFERENT "INIT" MODE

lNlT MODE BAND FREQUENCY GRIDS MANUAL/AUTO
EUROPE FM 87.5 - 108MHz 50kHz/100kHz

LW 144 - 288kHz 1kHz/1 kHz

MW 531 . 1629kHz 1kHz/9kHz step
AMERICA FM 87.5 - 108MHz 100kHz/100kHz
LATAM AM 530 - 1710kHz 1kHz/10kHz step
ASIA FM 87.5 - 108MHz 50kHz/50kHz

MW 531 - 1629kHz 1kHz/9kHz step
Aerial input impedence 75 ohm
lF-FM (1/2) 10.7MHz/72.2MH2
lF-AM(1/2) 10.7MHz/450kHz
on - 3dB 7i5uV
SDS (10 dB channel separation) 150uV i 3dB
Stereo channel separation > 21 dB
FM sensitivity for 26dB S/N < 4.5uV
MW sensitivity for 26dB S/N < 30W
LW sensitivity for 26dB S/N < 38uV
Cassette Deck
Number of tracks : 2
Tape speed ' 4.76 cm/second +3% -1%

Wow and Flutter < 0.35%
Amplifier
Output Power (D=10%) 4x5.5W i 1dB/4Q (RC239, RC249)

4X16W i 1dB/4Q (RC259. RC269I

Fader 60dB
Balance 60dB
ESD
\
k ESD Equipment:
WARNING Anti-static table mat large 1200x650x1.25mm 4822 466 10953

small 600x650x1.25mm
Anti-static wrist band
Connection box (1 MOhm)
Extendible cable (to connect wrist band to conn. box)
Connecting cable (to connect table mat to conn. box)
Earth cable (to connect any product to met or box)
Complete kit ESD3 (combining all above products)
Wristband tester

4822 466 10958
4822 395 10223
4822 320 11307

4822 320 11305
4822 320 11306
4822 320 11308
4822 310 10671
4822 344 13999

All lCs and many semiconductors are
susceptible to electronic discharges (ESD).
Careless handling during repair can reduce life
drastically.

When repairing, make sure that you care
connected to the same potential as the mass of
the set via a wrist wrap with resistance. Keep
components and tools also at this potential.
