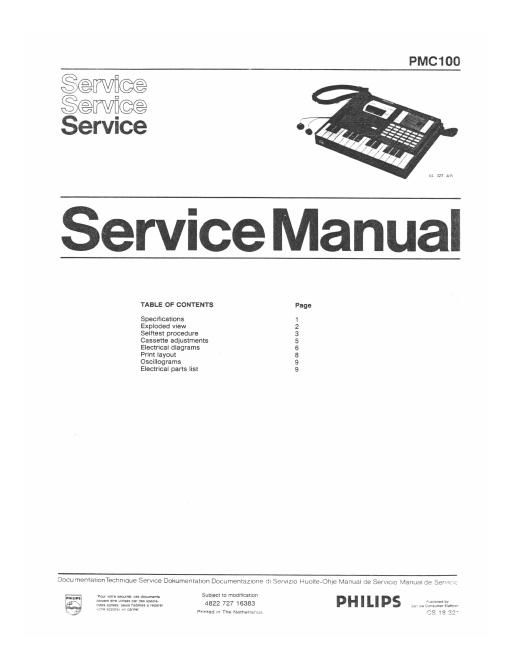

Philips pmc 100 service manual

Page 2

1
SPECIFICATIONS

Synthesizer:

Synthesizer chip : 6 melody and 5 rhythm

tracks
Microprocessor/controller : type 6803
ROM : 32 Kbytes
RAM : 8 Kbytes
Upper frequency : 16KHz +/-3dB
S/N ratio : 50GB

Tape section:

PLAY : bandwidth 60Hz-1'0KH2 +/-3ds
distortion 2%
S/N ratio 5008

: bandwidth 60Hz-8KH2 +3dB --8dB
distortion 5%
S/N ratio -3908

RECORD

Connections:

3.5mm mini-jack stereo output socket.
100mW RMS into 329:

3.5mm mini-jack stereo microphone socket,
sensitivity 60GB, impedance 6009,
bandwidth 20Hz~1OKHz:

9V DC input for centre negative plug,

PARTS LIST EXPLODED VIEW

4822 443 62633
4822 242 30166
4822 290 30298
4822 349 50328

Cassette door
Microphone
Battery contact
Tape counter

4822 358 30887
4822 267 30997
4822 267 30998
4822 277 21272

Counter drive belt
Headphones socket
Microphone socket
Microphone on/ofi switch

(.0me bum-4

11 4822 277 30896 Record/Playback switch

12 4822 249 10375 Record/Playback head
13 4822 528 70553 Pinch roller with holder
14 4822 361 21175 Motor

Cassette mechanism
Cassette drive belt
Bottom housing
Battery door

16 4822 691 20488
17 4822 358 30888
18 4822 443 51145
19 4822 443 62632

21 4822 130 90608 LCD display

22 4822 218 30456 LCD driver panel

23 4822 413 41482 Volume knob

24 4822 101 20995 Volume potentiometer

26 4822 277 21271 Audio/Data switch

27 4822 277 21269 On/Off switch

28 4822 257 30996 Power supply socket

29 4822 410 26812 Actuator tor pos. 26 and 27
31 4822 454 20886 Ornamental plate

32 4822 410 26813 Cassette keys

Rated
Voltage:

9V DC nominal. 6 ' 1.5V R6 batteries (penlight):
AC Adaptor ACC01 [02/03 9V SOOmA regulated
- nominal continuous rating.

Power Consumption:

Synthesizer: 2st
Tape section: 0.63w
Peak load: 7.20W

Battery life (with LES, size M):

Synthesizer: 4.5 hours
Tape record: 18.0 hours
Tape play: 25.0 hours

Dimensions (W/D/H):
220mm x 190mm x 40mm

Weight:
7159 excluding batteries
