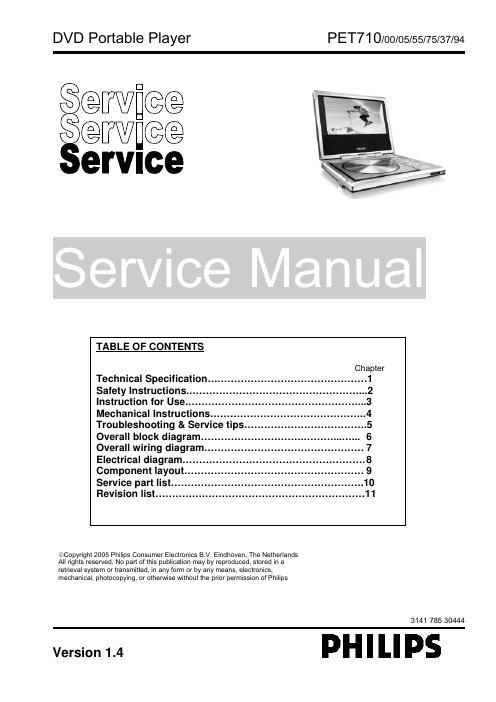

Philips pet 710 service manual

Page 2

1.0 TECHNICAL SPECIFICATION

General

Dimensions (WxLxH) :
Weight :

Power supply:

Power consumption :
Operating temp. range :
Laser wavelength:
Video system :
Frequency response :

Signal/noise ratio
Audio distortion + noise

Channel separation:
Dynamic range

Output
Audio out (analog audio)

Load impedance:
Video out Output level:

Load impedance:

Current consumption

19.3 x 16.1 x 3.0 cm
7.72 x 6.44 x 1.2 inches
0.824 kg/1.81lb

DC 9V 2.2A

S 20W

0 - 50°C (32 ~122°F)
650nm

I17 versions: NTSC
non I17 versions: NTSC / PAL/
AUTO

20HZ ~ 20KHz i 1dB

285dB
380(1KHZ)

285dB
28068

Output level: 2V : 10%
10KQ
1Vp - p 1 20%

759

Video CD: Eli-gm?
Audio CD : @J;?@

In addition, this unit can play DVD+R & DVD+RW and CD-R &
CD-RW that contains audio titles or MP3 or JPEG files.

You cannot play disc other than the above listed.
(CVD. CD-ROM, CD-Extra, CD-G and CD-l discs cannot be
played on this DVD player)

Software upgrades

DC-IN SUPPLY (9.0V)

Battery Charging Current

| 1.2A typ.

BATT. SUPPLY (7.2V)

For the best performance of your DVD Portable. Check
www.philips.comlsupport for latest software
upgrades available.

To check the software version of your DVD Portable.

1. Press the SETUP key to enter the setup menu.

2. Press RETURN and then press 1. 2 and 3 on the
remote control.

3. The display will show the software version as the
date of which the software was built on the bottom
of the screen. E.g. 050303

Procedure on how to upgrade the software of the DVD

Portable

1. Download the latest software from the Philips
support site.

2. Unzipped the files and then burn it onto a CD ROM
then playback the CD ROM on the DVD Portable.

Pixel specification

Power Off 0A
Playback with TFT on <1 .2A typ.
Playback without TFT on <600mA
Battery playtime >2.5hrs

Headphone out (headphone output load 2x16 ohm)

Maximum output power :
Frequency response :
SNR (A-wght) :

THD (1kHz) :

Left-Right Channel
Separation :

Left-Right Channel
Balance :

Supported disc type

>10mW
20Hz - 20kHz
SOdB typ.
<1%

32dB typ.

1dB

DVD video discs:

%

VIDEO-

: 3 (max. 0 bright dots and 3 dark dots)
