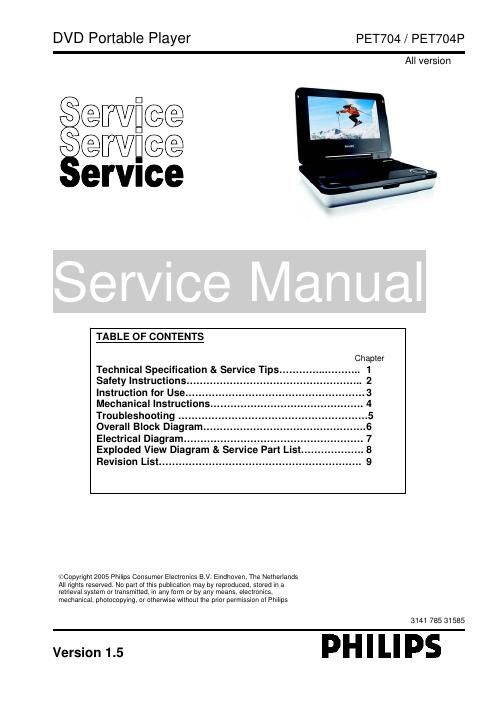

Philips pet 704 p service manual

Page 1

1.0 TECHNICAL SPECIFICATION General Dimensions (W x H x D): 203 x 40.4 x 150 mm Weight: 0.71kg Power supply: 100 – 240V (AC adaptor) DC 12V (Battery) Power consumption: 20W Operating temp. & RH: -5 – +50 degC / 30 – 90% RH Audio System Output voltage 1kHz: 1.5V typical THD 20-20kHz (%): 0.03% typical Dynamic range: >80dB Signal/Noise ratio: >80dB Frequency response 0.2- 20kHz): +1/-0.5dB Channel Separation 1kHz >75dB Channel Balance 1kHz 1dB Current consumption DC-IN SUPPLY (12V) Standby TFT on 500mA Standby power in battery 100uA BATT. SUPPLY Voltage 7.2V Capacity 2300mAH Battery playtime 3 hour Charging time (standby) <4.0 hour Charging time (playback) <6.0 hour Headphone out (headphone output load 2x16 ohm) Maximum output power: 10mW Frequency response: +/-3dB SNR (A-wght): >76dB THD ( 0.2-20kHz) : 0.2% typical Left-Right Channel Separation: >55dB Left-Right Channel Balance: 2dB Supported disc type Video Playback Formats: Audio Playback Formats: Playback disc type: DVD, Picture-CD, SVCD, Video CD, MP3- CD, CD-R/CD-RW, WMA-CD, DVD-R, DVD- RW, DVD+R, DVD+RW Video Playback Format: DVD / VCD / JPEG Audio Playback Format: CD/MP3, MP3-DVD, WMA Disc Diameter 12cm Pixel specification - 1 bright-dot & max. 3 dark-dots - Display resolution = 480 RGB (H) x 234(V)
