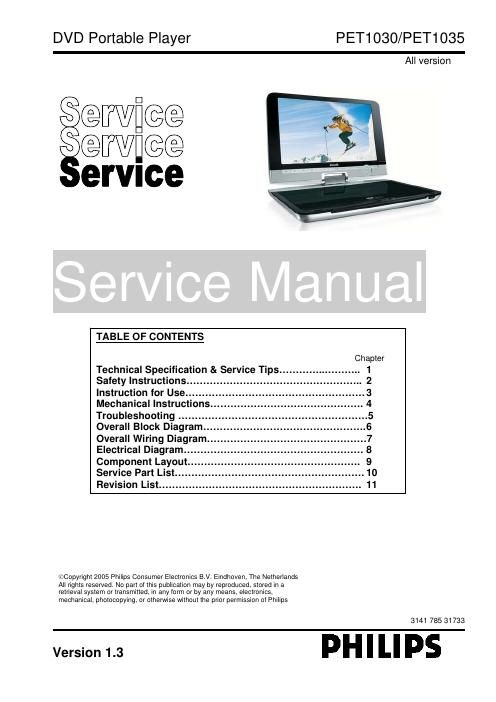

DVD Portable Player PET1030/PET1035
All version
errvflee
errvgee
ervrce
TABLE OF CONTENTS
Chapter
Technical Specification & Service Tips ......................... 1
Safety Instructions ....................................... 2
Instruction for Use ..................... ....3
Mechanical lnstructions.... .................... 4
Troubleshooting ......................................... 5
Overall Block Diagram.... ......................... 6
Overall Wiring Diagram... ........................ 7
Electrical Diagram ................................. 8
Component Layout... ............................ 9
Service Part List ......................................................... 10
Revision List ............................................................. 11
©Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronics,
mechanical, photocopying, or othen/vise without the prior permission of Philips
3141 785 31733
Version 1.3 D" I Ll ps
Page 2
1.0 TECHNICAL SPECIFICATION
Document Type: Symptom Cure Document BG-ES
Reference Number: Pl-O7/027
Problem type: General
Problem area: General
Symptom:
PET1030 - Set exchange of units come in a selected range of production serial number
Cure:
For any return of PET1030 which comes in the following ranges of production serial number of
the corresponding stroke versions
PET1030/00 LLlBO719002306 - LLlBO724008506
PET1030/37 LL1A0719000005 - LL1A0724006784
PET1030/05 LLlBO716000506 - LLlBO720001006
PET1030/58 LL1A0721000010 - LL1A0721002109
PET1030/98 LL1A0723000005 - LL1A0723000304
PET1030/93 LL1A0723000005 - LL1A0723000505
will need to be exchanged with a new units of production serial number of the followings or
onwards.
PET1030/00 LLlBO725008507
PET1030/37 LL1A0724006785
PET1030/05 LLlBO724001007
PET1030/58 LL1A0724002110
PET1030/98 LL1A0724000305
PET1030/93 LL1A0728000506
EXCHANGED SETS NEED TO BE COLLECTED FOR FURTHER NOTICE. ADDITIONAL
INSTRUCTIONS WILL BE GIVEN BY THE NATIONAL SERVICE ORGANIZATION
SHORTLY!
Take care that these sets are claimed with IRIS repair code 26
IRIS code: X XXX X 26
Product Model[ Chassis:
PET1030/ 00
PET1030/ 05
PET1030/37
PET1030/58
PET1030/93
PET1030/98
