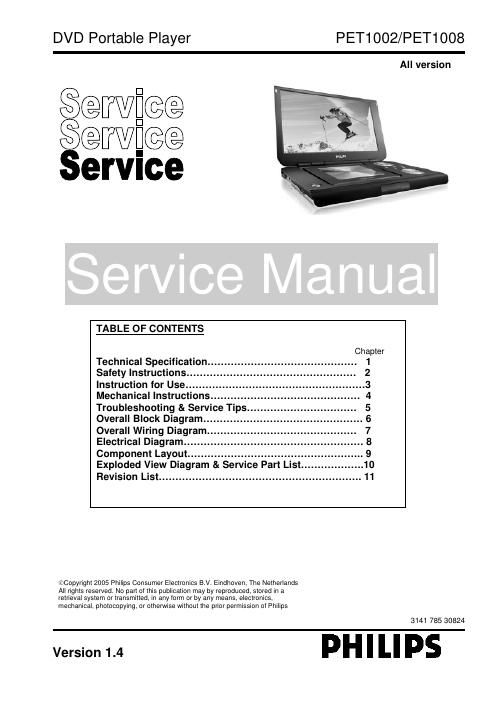

DVD Portable Player PET1002/PET1008

All version

Service
Service
SerVIce

TABLE OF CONTENTS
Chapter

Technical Specification ............................................. 1
Safety Instructions ........................... 2
Instruction for Use .................... ....3
Mechanical Instructions ............................. 4
Troubleshooting & Service Tips ................. 5
Overall Block Diagram ................................................ 6
Overall Wiring Diagram ............................................. 7
Electrical Diagram ...................... 8
Component Layout ......................................... 9
Exploded View Diagram & Service Part List ....... ....10
Revision List ............................................................. 11

©Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronics,
mechanical, photocopying, or otherwise without the prior permission of Philips

3141 785 30824

Version 1.4 D" I Ll ps

Page 2

1.0 TECHNICAL SPECIFICATION

General

Dimensions (WxLxH):
Weight:

Power supply:

Power consumption:
Operating temp. range:
Laser wavelength:
Video system:
Frequency response:

Signal/noise ratio:
Audio distortion + noise:

Channel separation:
Dynamic range:

Output
Audio out (analog audio):

Load impedance:
Video out Output level:

Load impedance:

Current consumption

26 x 18 x 3.0 cm
10.2 x 7 x 1.2 inches
1.13 kg / 2.48 lb

DC 9V 2.2A

30W

0 - 50:0 (32 ~122F)
650nm

NTSC / PAL / AUTO

2OHZ ~ 20KHZ 1 1dB

:85dB
S-80(1KHZ)

285dB
ZSOdB

Output level: 2V 1 10%
10Kn
1Vp - p 1 20%

750

comma

Audio CD:

ursrui. Aunra

DivX video discs:

In addition, this unit can play DVD+R & DVD+RW and CD-R &
CD-RW that contains audio titles or MP3 or JPEG files.

You cannot play disc other than the above listed.
(CVD, CD-ROM, CD-Extra, CD-G and CD-l discs cannot be
played on this DVD player)

Software upgrades

DC-IN SUPPLY (9.0V)

Battery Charging Current

| 1.2A typ.

BATT. SUPPLY (7.2V)

Power Off 0A
Playback with TFT on <1 .2A typ.
Playback without TFT on <600mA
Battery playtime >2.5hrs

For the best performance of your DVD Portable. Check
www.phi|ips.com/support for latest software
upgrades available.

To check the software version of your DVD Portable.

1. Press the SETUP key to enter the setup menu.

2. Press RETURN and then press 1. 2 and 3 on the
remote control.

3. The display will show the software version as the
date of which the software was built on the bottom
of the screen. E.g. 050303

Procedure on how to upgrade the software of the DVD

Portable

1. Download the latest software from the Philips
support site.

2. Unzipped the files and then burn it onto a CD ROM
then playback the CD ROM on the DVD Portable.

Pixel specification

Headphone out (headphone output load 2x160hm)

Maximum output power: >10mW
Frequency response: 20Hz - 20kHz
SNR (A-wght): 80dB typ.
THD (1kHz): <1%
Left-Right Channel 32dB typ.
Separation:
Left-Right Channel 1dB
Balance:
Supported disc type
DVD video discs:

v I D E 0

Video CD:

digs

DIGl'tAL VIDEEIl

<= 3 (max. 0 bright dots and 3 dark dots)
