TYPE N650)

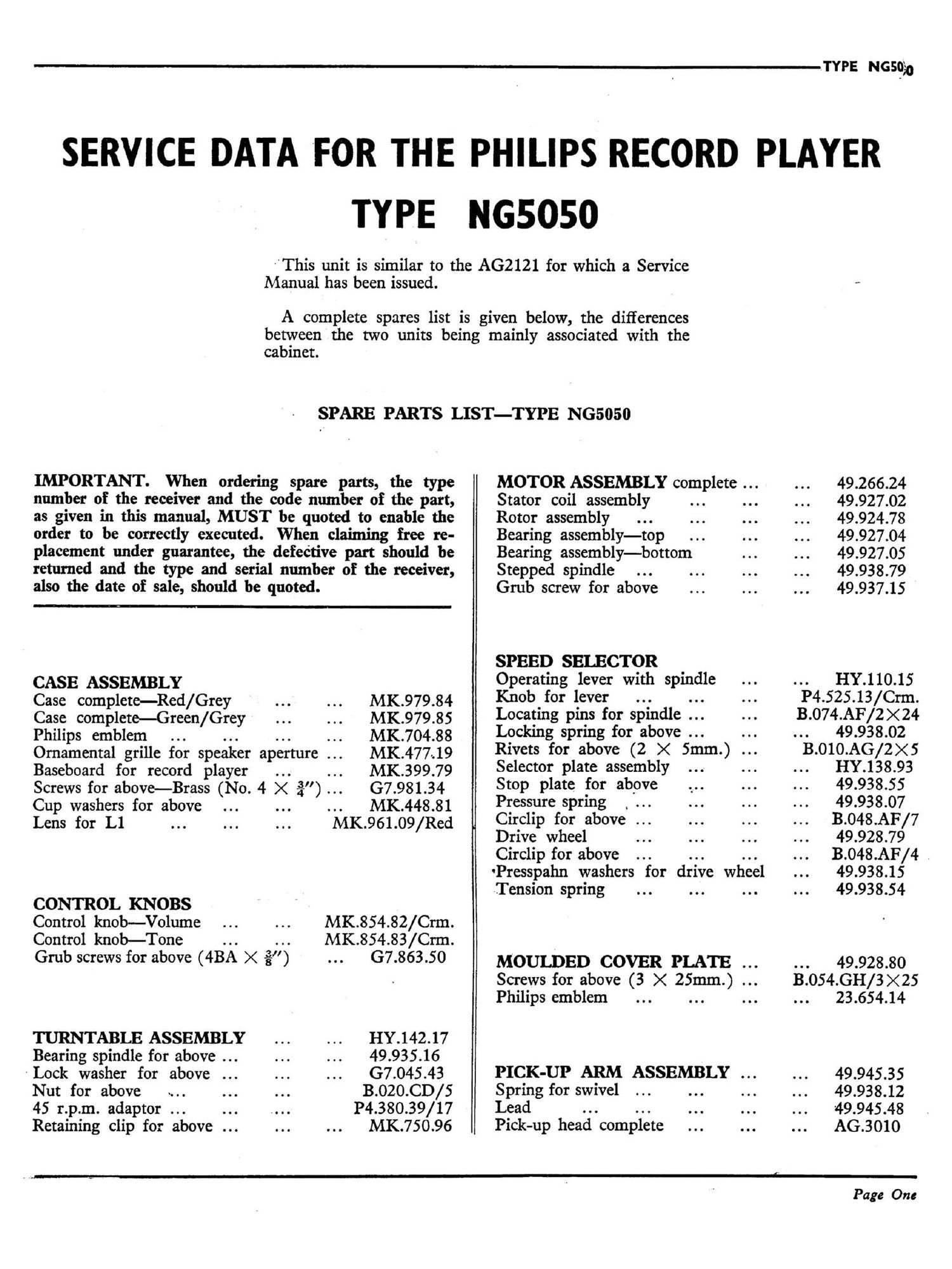

SERVICE DATA FOR THE PHILIPS RECORD PLAYER
TYPE NGSOSO

"This unit is similar to the AG2121 for which a Service

Manual has been issued.

A complete spares list is given below, the differences
between the two units being mainly associated with the

cabinet.

SPARE PARTS LIST-TYPE N 65050

IMPORTANT. When ordering spare parts, the type
number of the receiver and the code number of the part,
as given in this manual, MUST be quoted to enable the
order to be correctly executed. When claiming free re-
placement under guarantee, the defective part should be

returned and the type and serial number of the receiver,
also the date of sale, should be quoted.

CASE ASSEMBLY

Case complete-Red/Grey MK.979.84
Case complete-Green/Grey MK.979.85
Philips emblem MK.704.88
Ornamental grille for speaker aperture MK.477..19
Baseboard for record player . MK.399.79
Screws for above-Brass (No.4 >< 3) G7. 981. 34
Cup washers for above MK. 448. 81

Lens for L1 MK. 961. 09/Red

CONTROL KNOBS

Control knob-Volume MK.854.82/Crm.
Control knob-Tone . MK.854.83/Crm.
Grub screws for above (4BA X 23-) G7.863.50
TURNTABLE ASSEMBLY HY.142.17
Bearing spindle for above 49.935 .16
Lock washer for above 67.045.43
Nut for above B.OZO.CD/5
45 r.p.m. adaptor P4.380.39/l7
Retaining clip for above MK.750.96

MOTOR ASSEMBLY complete
Stator coil assembly .
Rotor assembly

Bearing assembly-top

Bearing assembly-bottom
Stepped spindle

Grub screw for above

SPEED SELECTOR

Operating lever with spindle
Knob for lever .. .

Locating pins for spindle..

Locking spring for above.
Rivets for above (2 X 5mm.)
Selector plate assembly

Stop plate for above

Pressure spring .

Circlip for above

Drive wheel

Circlip for above

*Presspahn washers for drive wheel
Tension spring

MOULDED COVER PLATE
Screws for above (3 X 25mm.)
Philips emblem

PICK-UP ARM ASSEMBLY . . .
Spring for swivel

Lead .

Pick-up head complete

49266.24
49927.02
49.924.78
49.927.04
49.927.05
49.938.79
49.937.15

HY.110.15

"134.525.13/crm.

B.074.AF/2><24
49.938.02

'°i3.010.AG/2><5

HY.138.93
49.938.55
49.938.07
B.048.AF/7
49928.79
B.048.AF/4 .
49938.15
49938.54

49928.80
B.054.GH/3 ><25
23.654.14

49.945 .35
49.938.12
49.945 .48
AG.3010
