philips mx 980 22 s fr 984 00 s

Extracted text from philips mx 980 22 s fr 984 00 s (Ocr-read)

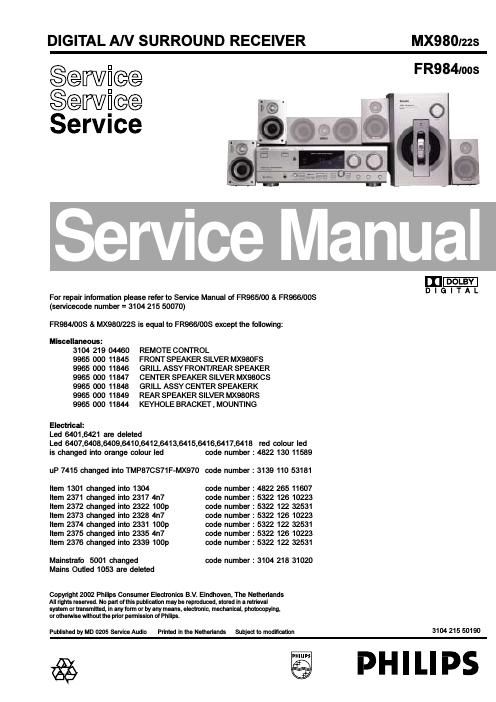

Page 1

DIGITAL AN SURROUND RECEIVER

MX980/2zs

Sewfiee
Service
SerVIce

For repair information please refer to Sen/ice Manual of FR965I00 & FR966I008
(sen/icecode number = 3104 215 50070)

FR984I008 & MX980I22S is equal to FR966/OOS except the following:

Miscellaneous:
3104 219 04460 REMOTE CONTROL
9965 000 11845 FRONT SPEAKER SILVER MX980FS
9965 000 11846 GRILL ASSY FRONT/REAR SPEAKER
9965 000 11847 CENTER SPEAKER SILVER MX980CS
9965 000 11848 GRILL ASSY CENTER SPEAKERK
9965 000 11849 REAR SPEAKER SILVER MX980RS
9965 000 11844 KEYHOLE BRACKET, MOUNTING

Electrical:

Led 6401,6421 are deleted

Led 6407,6408,6409,6410,6412,6413,6415,6416,6417,6418 red colour led
is changed into orange colour led code number : 4822 130 11589

uP 7415 changed into TMP87CS71F-MX970 code number : 3139 110 53181

Item 1301 changed into 1304 code number : 4822 265 11607
Item 2371 changed into 2317 4n7 code number : 5322 126 10223
Item 2372 changed into 2322 100p code number : 5322 122 32531
Item 2373 changed into 2328 4n7 code number : 5322 126 10223
Item 2374 changed into 2331 100p code number : 5322 122 32531
Item 2375 changed into 2335 4n7 code number : 5322 126 10223
Item 2376 changed into 2339 100p code number : 5322 122 32531
Mainstrafo 5001 changed code number : 3104 218 31020

Mains Outled 1053 are deleted

Copyright 2002 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or othenivise without the prior permission of Philips.

Published by MD 0205 Service Audio Printed in the Netherlands Subject to modification

2%

DHILIDS

Q5

FR984/oos

DOLBY

GITAL

0U

3104 215 50190

PHILIPS

Page 2

1-]

Mechanical: the following items are changed into:

Item
200
201

202
203
205

206
207
208
209
210

211
212
213
214
215

222
223
224
228
230

282
283

Code number
3104 217 53330

3141
3141
3141
3141

3141
3141
3141
3141
3141

3141
3141
3141
3141
3141

3141
3141
3141

017 74420
017 74430
017 74440
017 74450

017 74460
017 74600
017 74480
017 75200
014 24200

014 2421 0
014 24290
017 74490
017 74500
017 74350

017 74520
017 74530
017 74540

3139 247 50570
3139 247 50560

4822 535 10638

3141

017 74550

Description

FRONT CABINETASSY FR984
CAP END LEFTASSY

CAP END RIGHTASSY
BUTTON ASSY SURROUND
BUI'I'ONASSYTUNER

BU'I'I'ONASSY MENU
BU'I'I'ON ASSY BASS
BU'I'I'ONS EASY LINKASSY
RING SURROUNDASSY
LIGHT GUIDE VIRTUAL/HALL

LIGHT GUIDE SELECTOR
LENS IR

RING KNOB VOLUMEASSY
RING KNOB SOURCE SEL.
WINDOW DISPLAYASSY

KNOB VOLUMEASSY
KNOB SOURCE SEL.ASSY
KNOB MENU NAVASSY
LEG SILVER

LEG BLACK

POWER ROD
POWER CAP ASSY
