Philips mx 977 service manual

This is the 3 pages manual for philips mx 977 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3

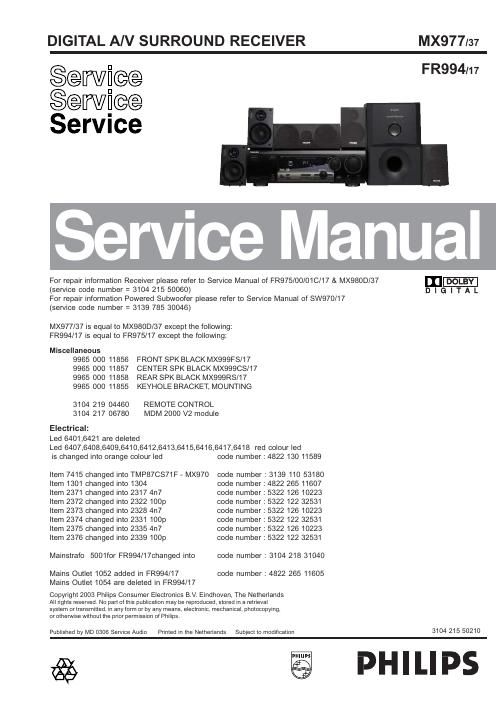

philips mx 977 service manual

Extracted text from philips mx 977 service manual (Ocr-read)


Page 1

Mechanical: the following items are changed into: Item Code numberDescription 200 3104 217 53370 FRONT ASSY FR994/17 201 3141 014 24480 CAP END LEFT FR994/17 202 3141 014 24490 CAP END RIGHT FR994/17 203 3141 017 74280 BUTTONS SURR. FR994/17 205 3141 017 74290 BUTTONS TUNER FR994/17 206 3141 017 74300 BUTTONS MENU FR994/17 207 3141 017 74580 BUTTONS BASS FR994/17 208 3141 017 74320 BUTTONS EASY LINK FR994/17 209 3141 014 24660 RING SURR. FR994/17 210 3141 014 24200 LIGHT GUIDE VIRTUAL/HALL 211 3141 014 24210 LIGHT GUIDE SELECTOR 212 3141 014 24650 LENS IR FR994/17 213 3141 014 24630 RING KNOB VOLUME FR994/17 214 3141 014 24640 RING KNOB SOURCE SEL. FR994/17 215 3141 017 74900 WINDOW DISPLAY ASSY FR994/17 222 3141 017 74360 KNOB VOLUME FR994/17 223 3141 017 74370 KNOB SOURCE SEL. FR994/17 224 3141 017 74380 KNOB MENU NAV FR994/17 228 3139 247 50570 LEG SILVER 230 3139 247 50560 LEG BLACK 282 4822 535 10638 POWER ROD 283 3141 017 74390 POWER CAP FR994/17 287 4822 442 01817 COVER PLATE BLACK FR994/171-1

Page 2

2-12-1 Mono board MDM module Tuner Mains board Front Video Selector FR995/FR996/FR985/FR986 S-VHS board 202 224223214 222213 215 212 209 200207 206 205 203 210 211208 282 283 1001 10021006 1005 10038020 236 284 226287 1004 5001 228230 201 EXPLODED VIEW
