Philips mx 3660 d service manual

This is the 45 pages manual for philips mx 3660 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 45
philips mx 3660 d service manual

Extracted text from philips mx 3660 d service manual (Ocr-read)


Page 1

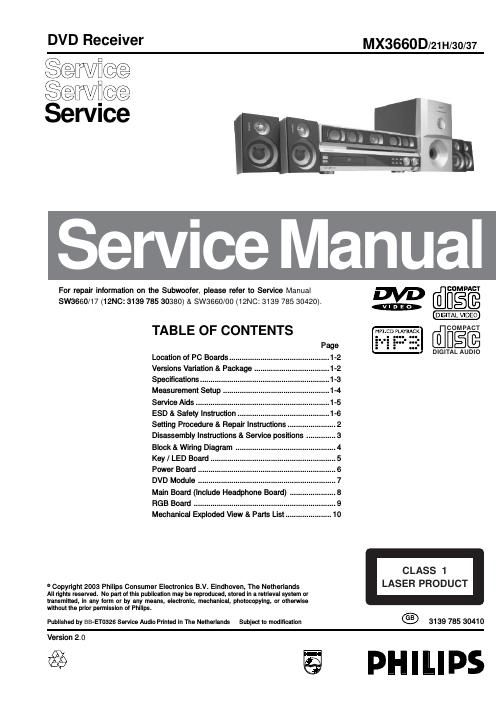

DVD Receiver MX3660D/21H/30/37

Service
Service
Servrce

ervice Manual

For repair information on the Subwoofer, please refer to Service Manual M fiaMPACT
SW3660/17 (12NCZ 3139 785 30380) & SW3550/00 (12NC2 3139 785 30420).

_IGITAL VIDEO

TABLE OF CONTENTS mm HEW

Page i H§[E

DIGITAL AUDIO

Location of PC Boards .............
Versions Variation & Package .
Specifications ..........................
Measurement Setup

Service Aids ............ ..
ESD & Safety Instruction ............................................ 1-6
Setting Procedure & Repair Instructions ........... .. 2
Disassembly instructions & Service positions ..
Block & Wiring Diagram
Key / LED Board ..
Power Board
DVD Module ............................................
Main Board (Include Headphone Board)
RGB Board ..............................................
Mechanical Exploded View & Parts List ...................... 1

oio'ooki'min'a'w

CLASS 1

9 Copyright 2003 Philips Consumer Electronics B.V. Eindhoven, The Netherlands LASER PRODUCT
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
wilhoul the prior permission oi Philips.

Published by BBVET0326 Service Audio Printed in The Netherlands Subject to modification 3139 785 30410

Version 2.0

€39 § PHILIPS
