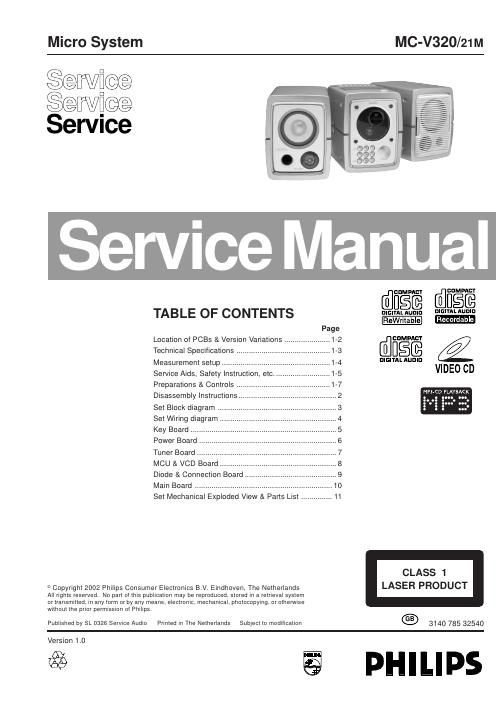

Philips mcv 320 service manual

Page 2

1-3 SPECIFICA TIONS GENERAL: Mains voltage : 120V / 230V ±15% Switchable Mains frequency : 50/60Hz Power consumption : < 8W at Standby (DEMO mode of\ f) : 45W at Active Clock accuracy : < 4 seconds per day Dimension centre unit : 155 x 220 x 270mm TUNER: FM T uning range : 87.5-108MHz IF frequency : 10.7MHz ± 20kHz Aerial input : 75 Ω Coaxial Sensitivity at 26dB S/N : < 22dBf Selectivity at S9/300kHz : > 33dB IF Rejection : > 60dB Image Rejection : > 20dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting Point : < 23.5dB Crosstalk at RF=1mV, dev. 40kHz : > 26dB Modulation Hum : > 45dB AM Suppression I/P: 48~82dBf : > 25dB AM (MW) T uning range : 531-1602kHz or 530-1700kHz Grid : 9kHz / 10kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial 18.1 µH Sensitivity at 26dB S/N : < 3.25mV/M Selectivity at S9/300kHz : > 15dB AGC Figure of Merit : > 25dB IF rejection : > 24dB Image rejection : > 20dB Distortion at RF=50mV, m=80% : < 5% Mudulation Hum with REC or : > 40dB Spurious Response Rejection : > 28dB AMPLIFIER: Output power (6 Ω, 1kHz, 10% THD) : 2X18W Frequency response within -3dB : 60Hz-14kHz Digital Sound Control (DSC) : Optimal,Classic,Jazz, Rock DBB : ON/OFF Incredible Surround (IS) : ON/OFF Input sensitivity ( ±3dB) for Rated Output Power at 1kHz Aux in : 500mV; Rs=600 Ω T uner in : FM67.5kHz, AM80%Modulation CD in : -6dB track Tape in : 250nWb/m Microphone in : 3.5mV; Rs=600 Ω Output sensitivity Headphone output at 32 Ω:15mW ± 1dB CASSETTE RECORDER: Number of track : 2 Tracks (Stereo) T ape speed : 4.76 cm/sec ± 2% W ow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 80Hz - 10kHz Rec/Pb freq. response within 8dB : 78kHz ± 10kHz Signal to Noise Ratio (A-weighted) : > 48dBA Distortion 250nWb/m : < 5% Channel Difference at overall : < 4dB COMPACT DISC: Frequency response within ± 3dB : 63Hz - 14kHz Output level (in Vrms) : 500mV, Z out = 100 Ω Signal/Noise ratio (A-weighted) : > 62dBA Distortion at 1kHz : < 0.02% Channel unbalance at 1kHz : ≤ 2dB Channel separation at 1kHz : > 30dB Emphasis : 15/50 µS (switched automatically by CD10) THD Noise(1kHz) : 1.00% Outband Attenuation : > 20dB for Frequency > 40kHz VIDEO - CD : Vi deo bandwidth : 6MHz Amplitude output : 1.0Vpp(+10/-15%) S/N luminance : ≥ 45dB Chroma/Luminance delay : ≤ 80ns MP3 - CD : Bit rates : 32K - 320Kps Sampling rates : 32KHz/44.1KHz/48KHz
