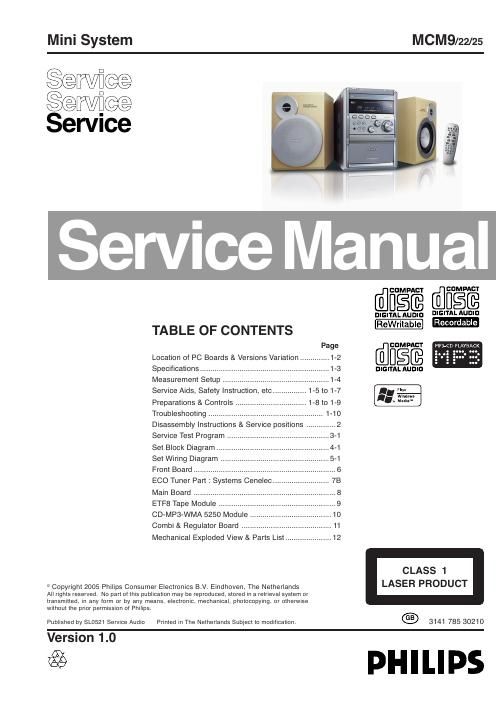

Philips mcm 9 service manual
This is the 72 pages manual for philips mcm 9 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 9 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PC BOARDS /22 /25 Aux in / CDR in x x Line Out Video Out Surround Out Subwoofer Out Digital Out Digital in Matrix Surround RDS/NEWS x x Dolby Pro Logic (DPL) Incredible Surround x x Karaoke Features Voltage Selector ECO Power Standby (Clock Display Off) x x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelec x x VERSION VARIATIONS: Type /Versions: MCM9 Features & Board in used: Mains BoardDisplay Board Tuner BoardETF8 SD Board Eeprom Board Regulator Board (Below Tuner Board)
Page 2
1-3 SPECIFICA TIONS GENERAL: Mains voltage : 220-230V for /22/25 Power consumption : 80W at 1/8 P rated < 15W at Standby (Demo mode off) < 0.5W at ECO Standby Clock accuracy : < 4 seconds per day Dimension centre unit : 175 x 252 x 350mm TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 25kHz Aerial input : 75 Ω coaxial Sensitivity at 26dB S/N : < 7 µV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB [> 75dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8 µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW T uning range : 531-1602kHz Grid : 9kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.4mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power (6 Ω, 1kHz, 10% THD) L & R : 2 x 50W RMS Frequency response within -3dB : 50Hz-16kHz Bass : 60Hz ± 3 Steps T reble : 12kHz ± 3 Steps Incredible Surround : On / Off Input sensitivity Aux in (at 1kHz) : 500mV at 600 Ω CDR in (at 1kHz) : 1000mV at 600 Ω Output sensitivity Headphone output at 32 ohm : 15mW ± 2dB (Max. vol.) CD Headphone output at 32 ohm : 5mW ± 2dB (Max. vol.) CASSETTE RECORDER: Number of track : 2 tracks (stereo) T ape speed : 4.76 cm/sec ± 2% W ow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 78kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 10kHz Signal to Noise Ratio (Type I) : > 48dBA Signal to Noise Ratio (Type II) : > 52dBA COMPACT DISC: Measurement done directly at the connector on the board. Output Resistance : < 100 Ω Output Voltage (0dB, 1kHz) : 0.5Vrms ± 1dB (unloaded) Channel Unbalance : < ±1dB Channel Separation (1kHz) : > 60dB Frequency Response ( 3dB) : 20Hz-20kHz Signal to Noise Ratio : > 76dBA MP3-CD Bit Rate : 32-256 kbps Sampling Frequencies : 32, 44.1, 48 kHz [....] Values indicated are for "ECO6 Cenelec Board" only.
